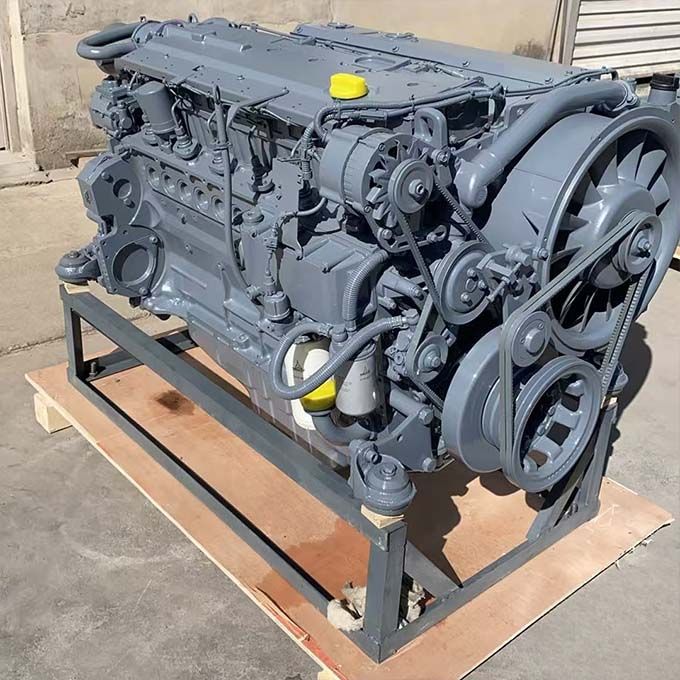

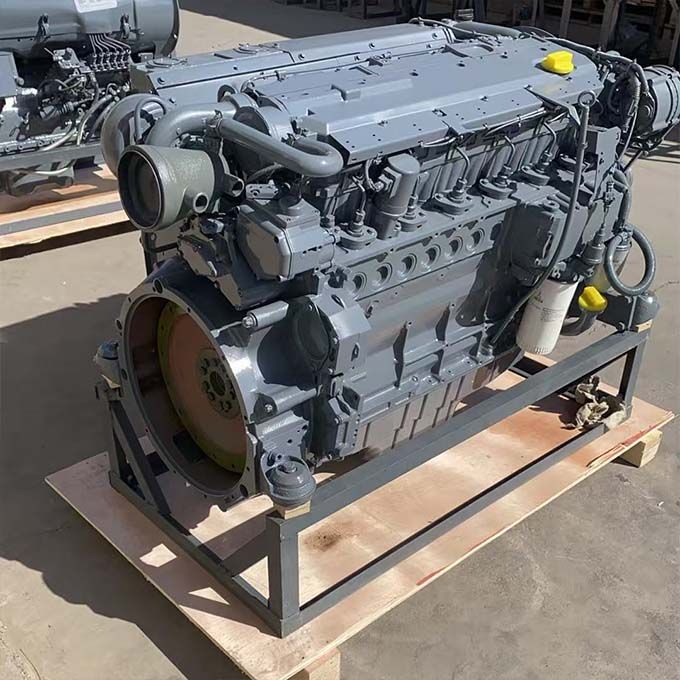

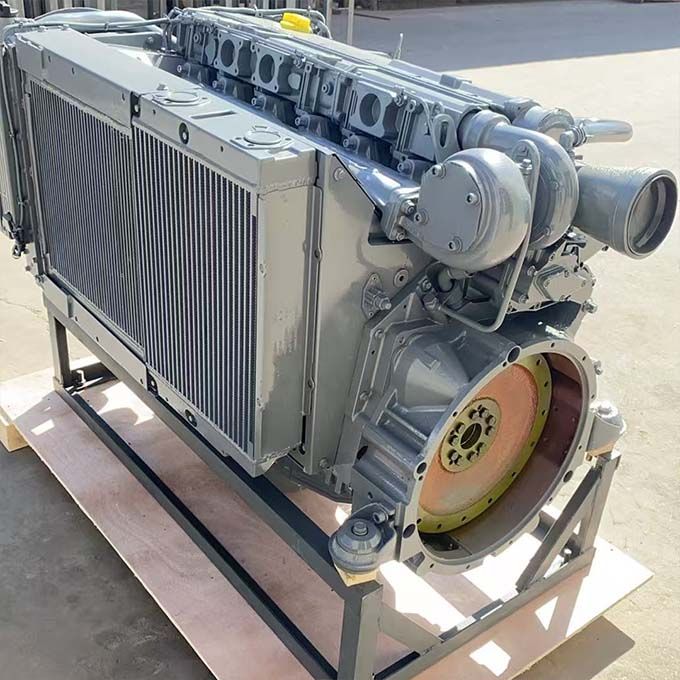

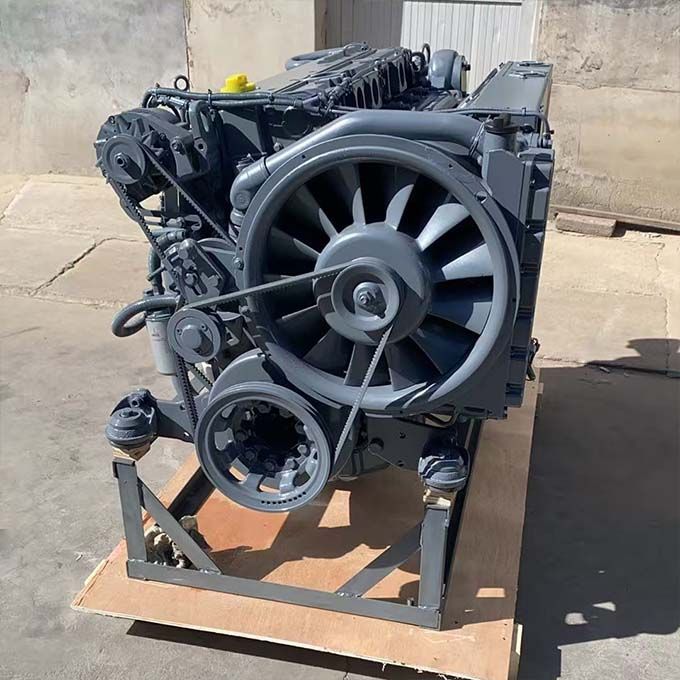

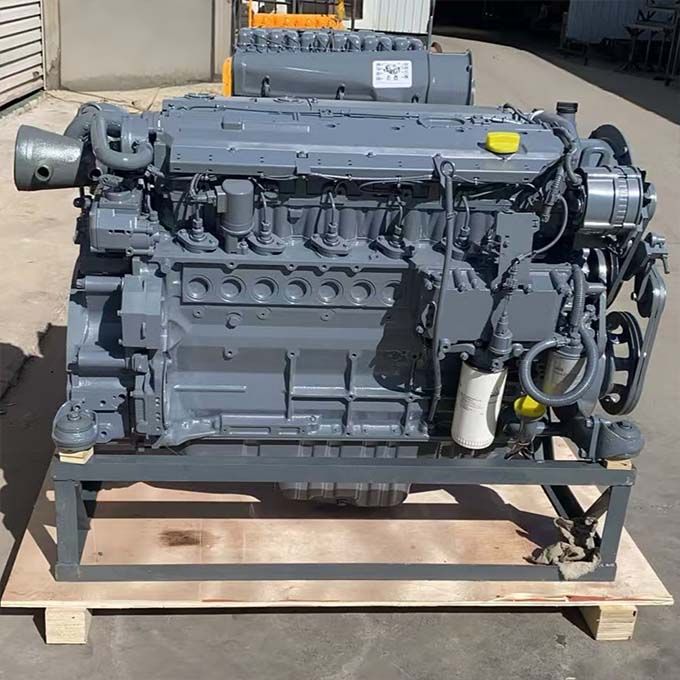

DEUTZ BF6M1013 Engine Direct Fit – For Excavator Crane Irrigation Pump to made in China

For fleet managers tired of wiring-harness failures and DPF regens, the Deutz BF6M1013 offers a pragmatic return to mechanical dependability – and our Chinese sourcing channel specializes in delivering this exact platform with cross-compatible casting numbers. We match the original Bosch P7100 injection pump, six-hole nozzles, and dowel-pinned cylinder liners to preserve OEM compression ratios. Every long-block we dispatch comes with pre-set valve clearances and a matched set of injector lines, so your service crew can perform a direct exchange using standard hand tools. From port-handling reachstackers to high-lift telehandlers, this engine’s wide torque plateau (760 Nm from 1400–1800 RPM) keeps hydraulic functions responsive under variable loads. We provide photographic dimensional checklists and torque sequence charts for each outgoing unit, bridging the gap between Chinese manufacturing and your on-site mechanical standards – no computer diagnostics required.

Products Overview

BF6M1013


A

B

C

mm

1266

600

952

Cyl No. and Arrangement

6-Cyl in-line

Bore/Stroke(mm)

108/130

Air-intake way

Turbo charged

Combustion system

Direct injection

Cooling way

Water-cooled

Displacement(L)

7.14

Max.Torque(N.m)

580

Power(kw)

117

Power(hp)

157

Speed(rpm)

2300

Net Weight(kg)

550

Weight(kg)

630

Dimension(L*W*H/cm)

156*95*123

HS code:

8408909290

Application:

construction machinery / generator set / mining equiment / water pump / truck

Certification

ISO9001:2000

Warranty

12 Months / 1000 Hours

Quality Control

The engines have been rigorously tested

Payment

T/T, Western Union, Alibaba online payment.

Service

Guidance on product issues through online and video support

The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
