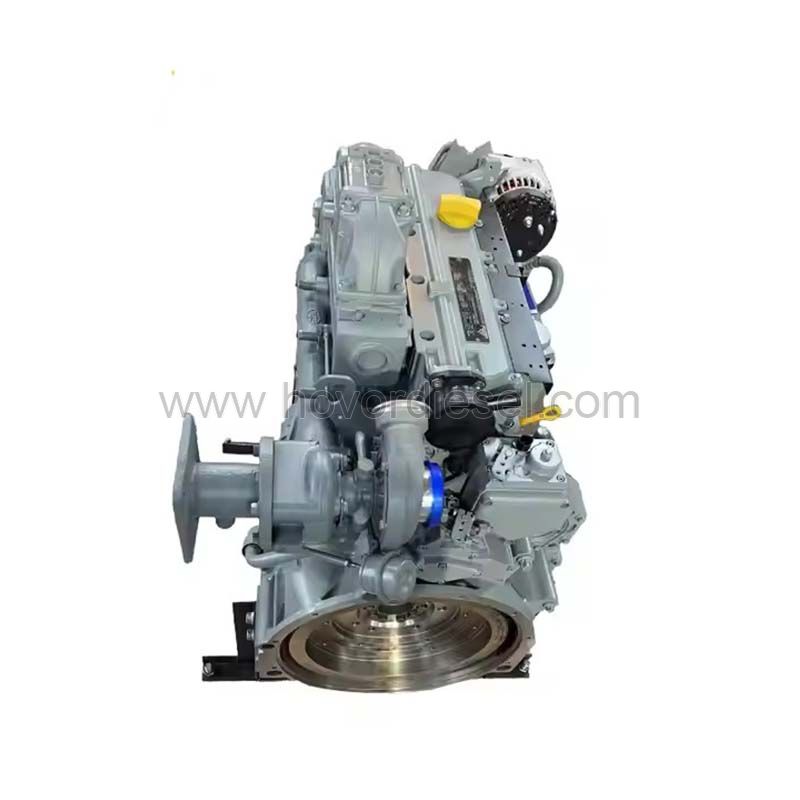

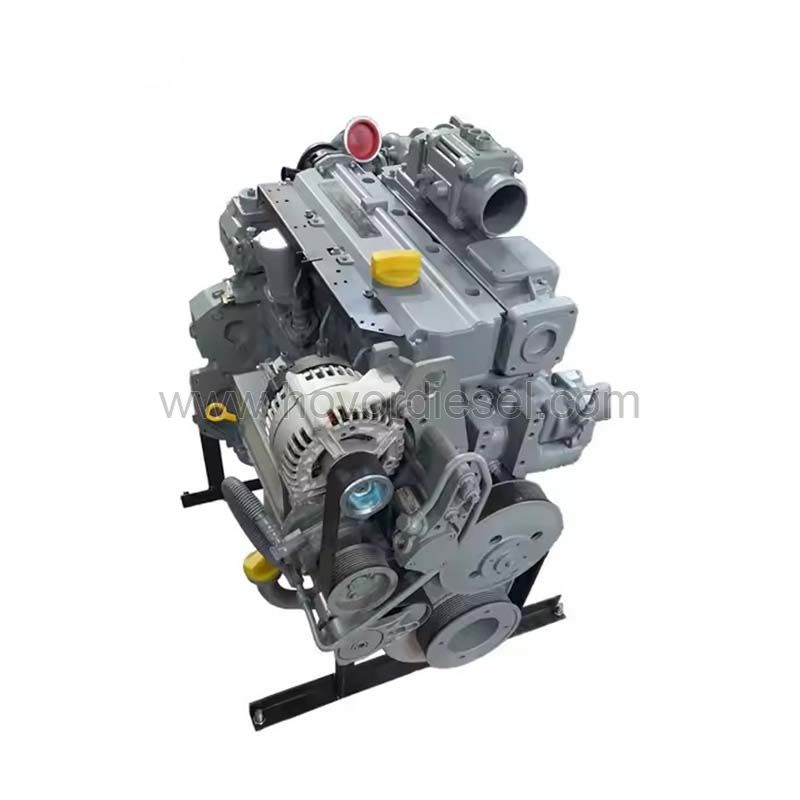

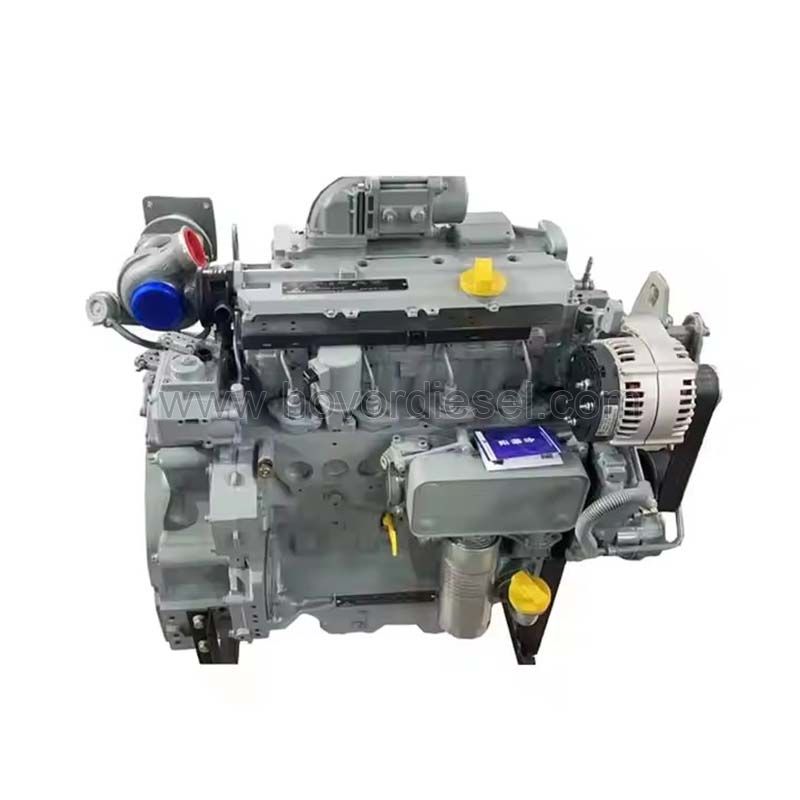

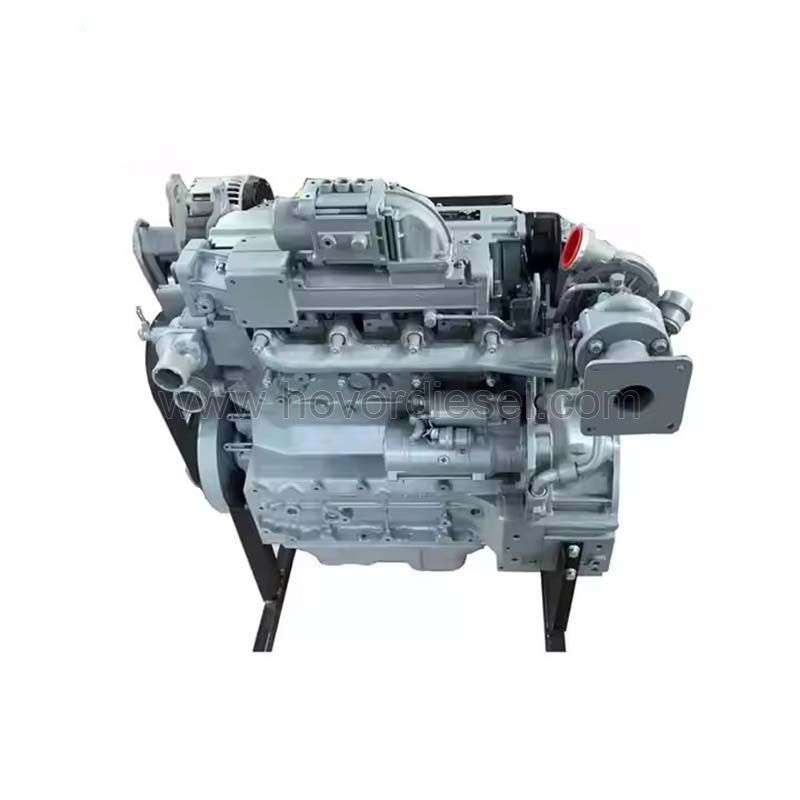

The DEUTZ TCD2012 L04 2V is a 4.0-liter, inline 4-cylinder turbocharged diesel with common rail injection (1800 bar), certified for EU Stage IIIA / EPA Tier 3. It delivers 80–120kW (107–161 HP) with peak torque of 500–650 N·m from 1300 to 1700 RPM. The 2-valve per cylinder head keeps valvetrain simple and repair costs low. Wet cylinder liners — rebuildable in any shop. Gear-driven balancer cancels 4-cylinder shake. Single-side service access. Service at 500 hours. We supply new OEM, remanufactured (dyno-tested), and genuine spares (injectors, pumps, turbos, heads, gaskets). All units test-run and export-crated. Common uses: skid steers, 2–4 ton compact excavators, small loaders, 80–120 kVA gensets. Send specs — quote in 24 hours.
Products Overview
TCD2012 L04 2V | A | B | C | ||
mm | 791 | 628 | 823 | ||
Cyl No. and Arrangement | 4-Cyl in-line | ||||
Bore/Stroke(mm) | 101/126 | ||||
Air-intake way | Turbo charged cooling | ||||
Combustion system | Direct injection | ||||
Cooling way | Water-cooled | ||||
Displacement(L) | 4.04 | ||||
Max.Torque(N.m) | 520 | ||||
Power(kw) | 120 | 103 | |||
Power(hp) | 161 | 138 | |||
Speed(rpm) | 2100 | 2400 | |||
Net Weight(kg) | 400 | ||||
Weight(kg) | 500 | ||||
Dimension(L*W*H/cm) | 115*90*125 | ||||
HS code: | 8408909290 | ||||
Application: | construction machinery / generator set / mining equiment / water pump / truck | ||||
Certification | ISO9001:2000 | ||||
Warranty | 12 Months / 1000 Hours | ||||
Quality Control | The engines have been rigorously tested | ||||
Payment | T/T, Western Union. | ||||
Service | Guidance on product issues through online and video support | ||||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |||||
