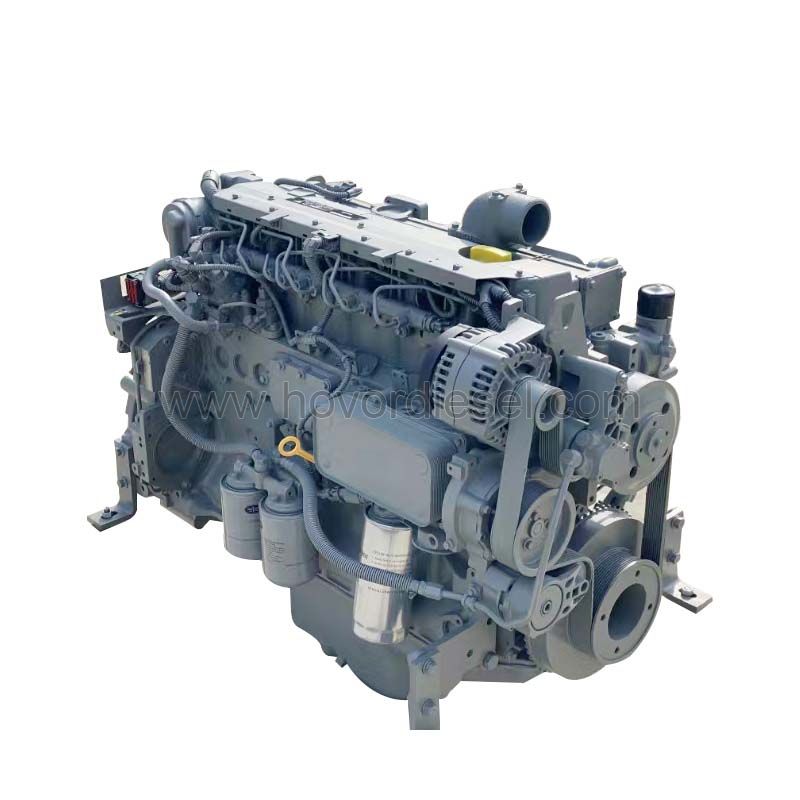

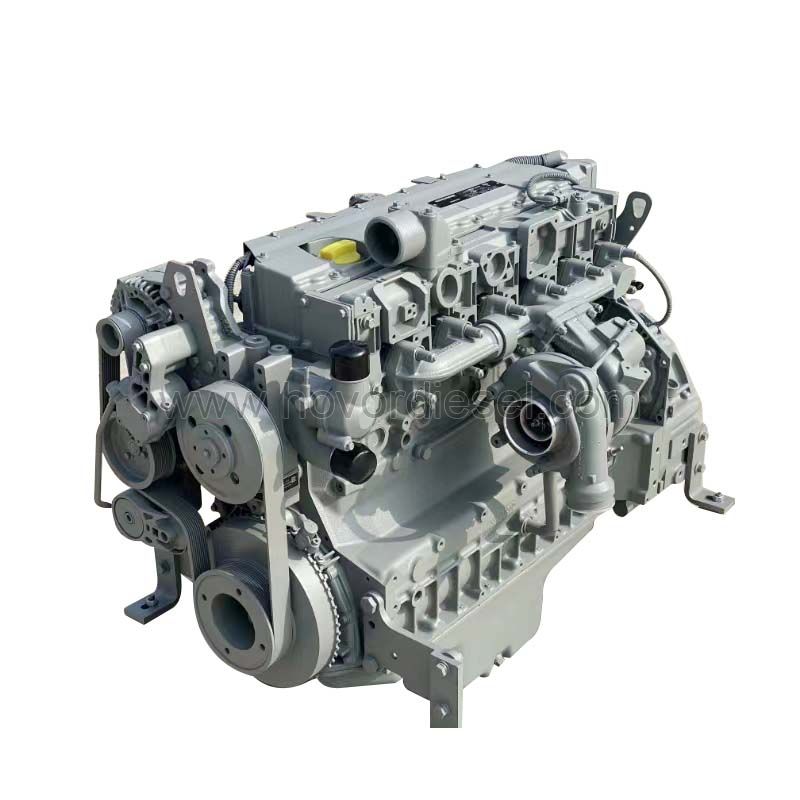

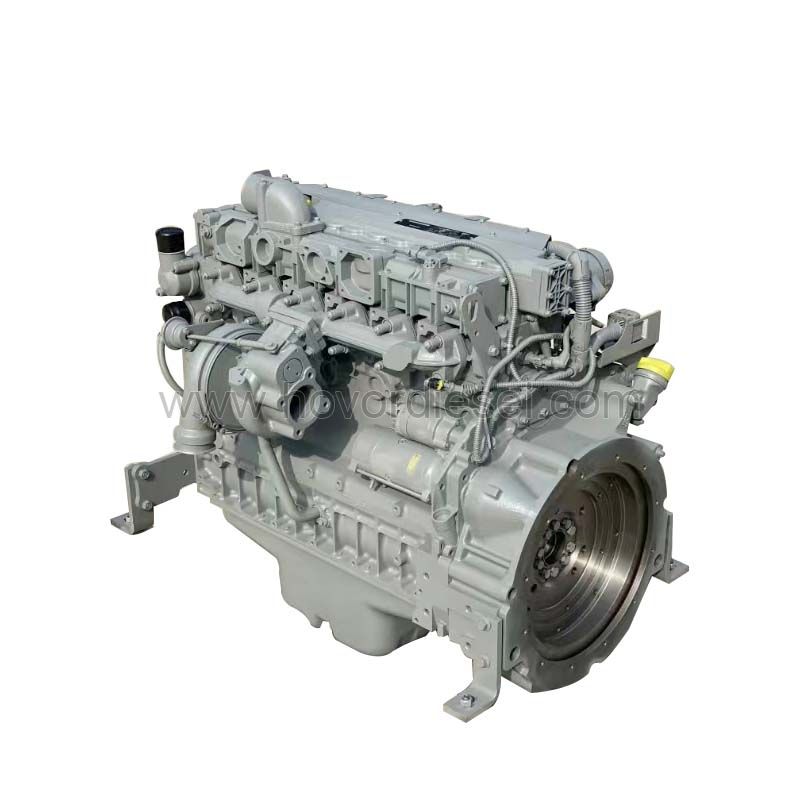

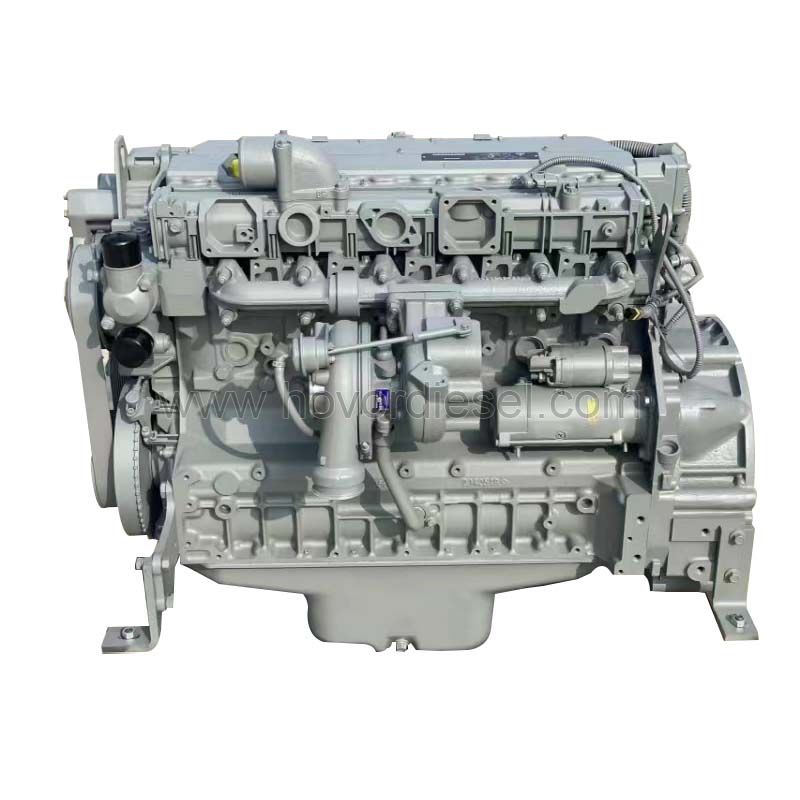

The DEUTZ TCD2012 L06 2V is a 6.0-liter, inline 6-cylinder turbocharged diesel with common rail injection (1800 bar), certified for EU Stage IIIA / EPA Tier 3. It delivers 120–180kW (160–241 HP) with peak torque of 750–950 N·m from 1300 to 1700 RPM — a flat curve for steady pulling. The 2-valve per cylinder design means fewer moving parts and easier field repairs. Wet liners allow in-frame overhauls. Deep-skirt block, cast-iron pump housing. Service at 500 hours. We supply new OEM, remanufactured (dyno-tested), and genuine spares (injectors, pumps, turbos, heads, gaskets, liners). All engines test-run and export-crated. Common uses: 5–7 ton loaders, 15–20 ton excavators, crushers, harvesters, 150–220 kVA gensets. Contact us — quote in 24 hours.
Products Overview
TCD2012 L06 2V | A | B | C | ||
mm | 1018 | 659 | 893 | ||
Cyl No. and Arrangement | 6-Cyl in-line | ||||
Bore/Stroke(mm) | 101/126 | ||||
Air-intake way | Turbo charged cooling | ||||
Combustion system | Direct injection | ||||
Cooling way | Water-cooled | ||||
Displacement(L) | 6.06 | ||||
Max.Torque(N.m) | 810 | ||||
Power(kw) | 188 | 155 | |||
Power(hp) | 252 | 208 | |||
Speed(rpm) | 2100 | 2400 | |||
Net Weight(kg) | 510 | ||||
Weight(kg) | 600 | ||||
Dimension(L*W*H/cm) | 140*90*120 | ||||
HS code: | 8408909390 | ||||
Application: | construction machinery / generator set / mining equiment / water pump / truck | ||||
Certification | ISO9001:2000 | ||||
Warranty | 12 Months / 1000 Hours | ||||
Quality Control | The engines have been rigorously tested | ||||
Payment | T/T, Western Union. | ||||
Service | Guidance on product issues through online and video support | ||||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |||||
