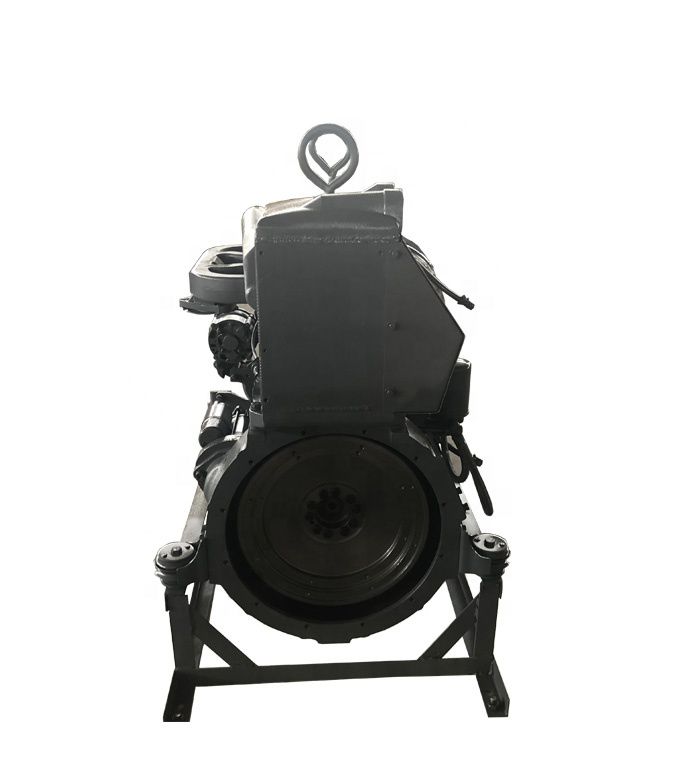

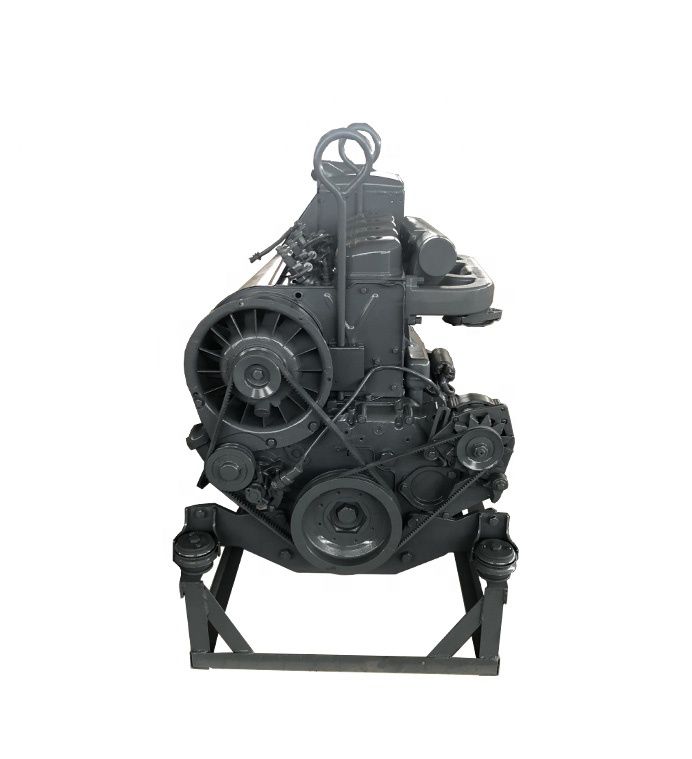

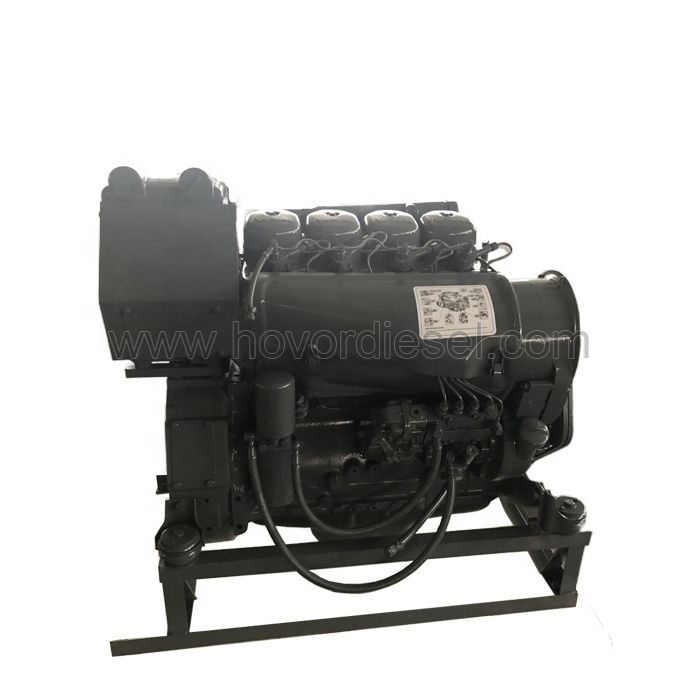

Deutz F4L912W motor 4 cylinders 42KW 2300RPM air cooled low-pollution diesel engine

Product Performance Parameters
The Deutz F4L912W is an air-cooled, four-cylinder diesel engine renowned for its robust performance and exceptional reliability. With a displacement of 3.76 liters, this naturally aspirated engine delivers power outputs ranging from 45 to 60 kW, achieving maximum torque values between 190-220 Nm at low to mid rpm ranges. The engine features a compact design with individual cylinder heads and an efficient air-cooling system that eliminates the need for complex liquid cooling components. Its mechanical fuel injection system ensures straightforward operation and maintenance, while the hardened alloy steel crankshaft and precision-machined components contribute to its durability and long service life.


Products Overview

Technical Parameter

ModelF4L912W
No. of Cly4
Bore/stroke(mm)100/120
Displacement(L)3.77
Air-intake systemNaturally aspirated
Power/Rev(kw/rpm)39/215042/230044/2500
Max torque(N.m)170
Compression ratio17:1
Direction of rotation(facing cooling blower)Clockwise
Dimension(cm)125*85*106cm
Weight(kg)450


Output power curve

F4L912 Air Cooled Diesel Engine


Section plane of engine

F4L912 Air Cooled Diesel Engine
