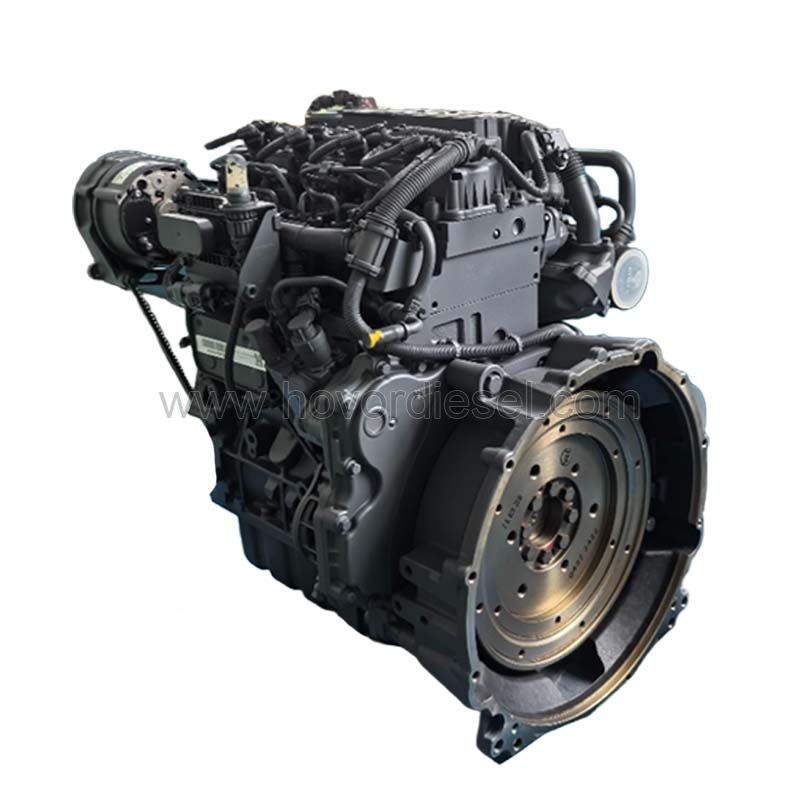

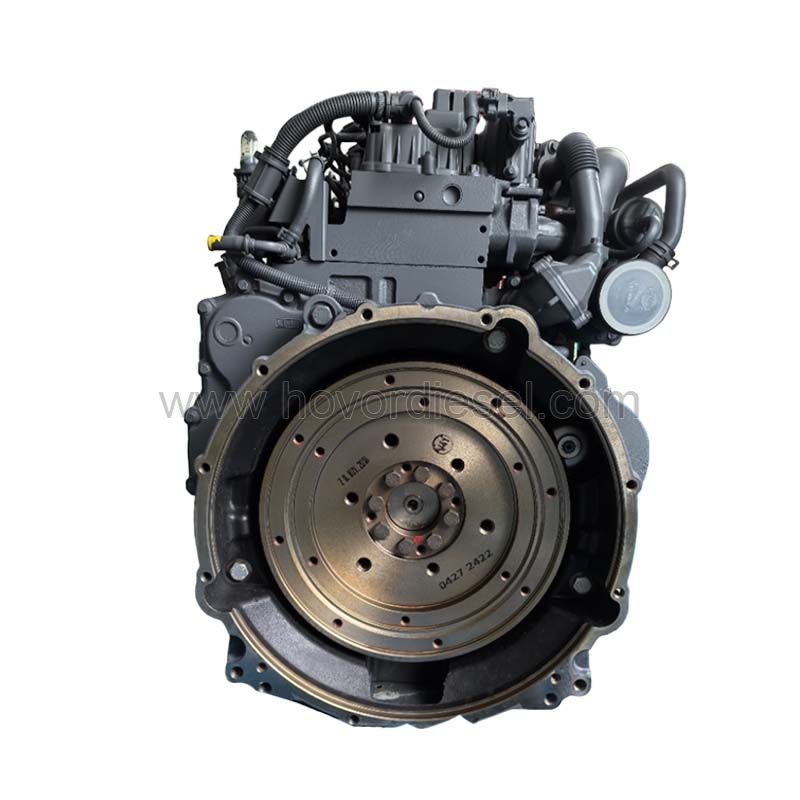

TD2.9L04 machinery diesel engines water cooled 4 cylinder 4 stroke for deutz engine assembly

Application Scenarios
The Deutz TD2.9L04 is an extremely versatile engine ideally suited for a broad spectrum of light to medium-duty mobile and stationary equipment. Its primary application scenarios include compact construction machinery such as mini excavators, compact wheel loaders, and light towers. It is also perfectly matched for agricultural applications like small tractors, balers, and sprayers, as well as for various industrial uses such as generator sets, air compressors, and material handling equipment. Its compact size, simple design, and compliance with strict emission standards make it a preferred power source for original equipment manufacturers (OEMs) worldwide.

Inquire Now Next Product

Products Overview

TD2.9 L04		A	B	C
	mm	648	560	685
Cyl No. and Arrangement	4-Cyl in-line
Bore/Stroke(mm)	92/110
Air-intake way	Turbo charged cooling
Combustion system	Direct injection
Cooling way	Water-cooled
Displacement(L)	2.9
Max.Torque(N.m)	300
Power(kw)	55.4
Power(hp)	75
Speed(rpm)	2600
Net Weight(kg)	237
Weight(kg)	290
Dimension(LWH/cm)	110100120
HS code:	84089093290
Application:	construction machinery / generator set / mining equiment / water pump / truck
Certification	ISO9001:2000
Warranty	12 Months / 1000 Hours
Quality Control	The engines have been rigorously tested
Payment	T/T, Western Union.
Service	Guidance on product issues through online and video support
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
