Product Performance Parameters

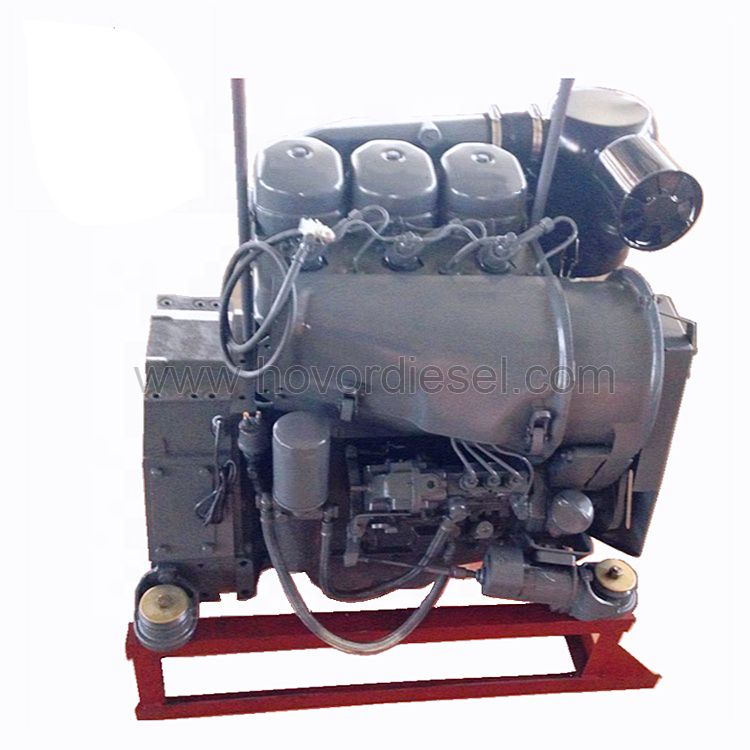

The Deutz F3L912W is a three-cylinder, air-cooled diesel engine known for its simple and robust design. It has a displacement of approximately 2.7 liters and typically delivers a power output in the range of 35 to 45 kW (47 to 60 hp). As a naturally aspirated engine without an intercooler, it provides reliable and straightforward power. This model, part of the classic 912 series, operates with a direct injection fuel system and is characterized by its mechanical governing, offering a durable and time-tested performance profile that predates modern electronic emission controls.
Products Overview
Technical Parameter
| Model | F3L912W | |||
| No. of Cly | 3 | |||
| Bore/stroke(mm) | 100/120 | |||
| Displacement(L) | 2.82 | |||
| Air-intake system | Naturally aspirated | |||
| Power/Rev(kw/rpm) | 29/2150 | 31/2300 | 33/2500 | |
| Max torque(N.m) | 230 | |||
| Compression ratio | 17:1 | |||
| Direction of rotation(facing cooling blower) | Clockwise | |||
| Dimension(cm) | 118*83*106cm | |||
| Weight(kg) | 410 | |||
Output power curve
Section plane of engine
Specifications
