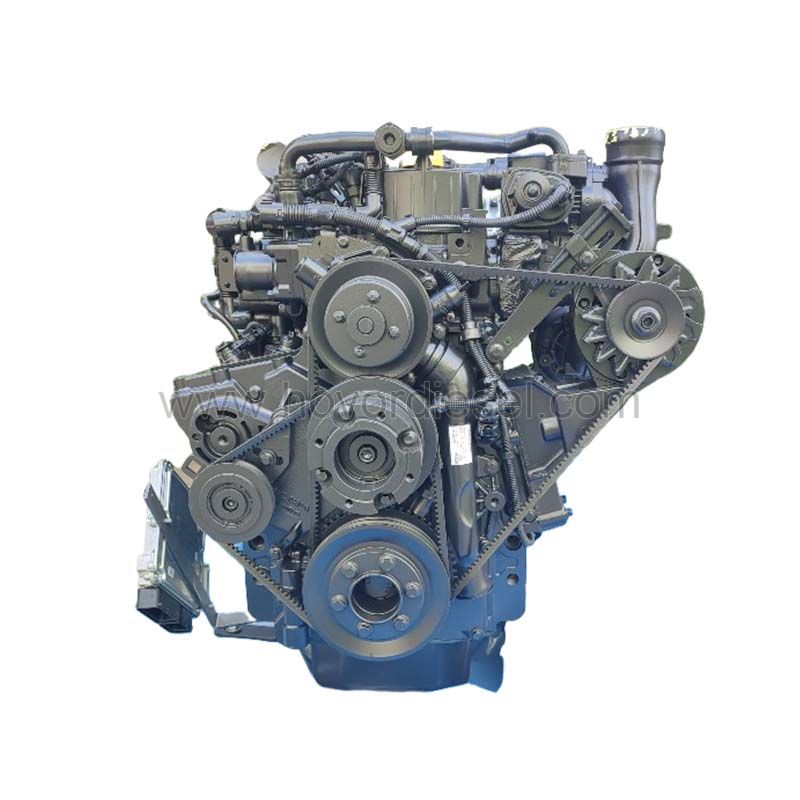

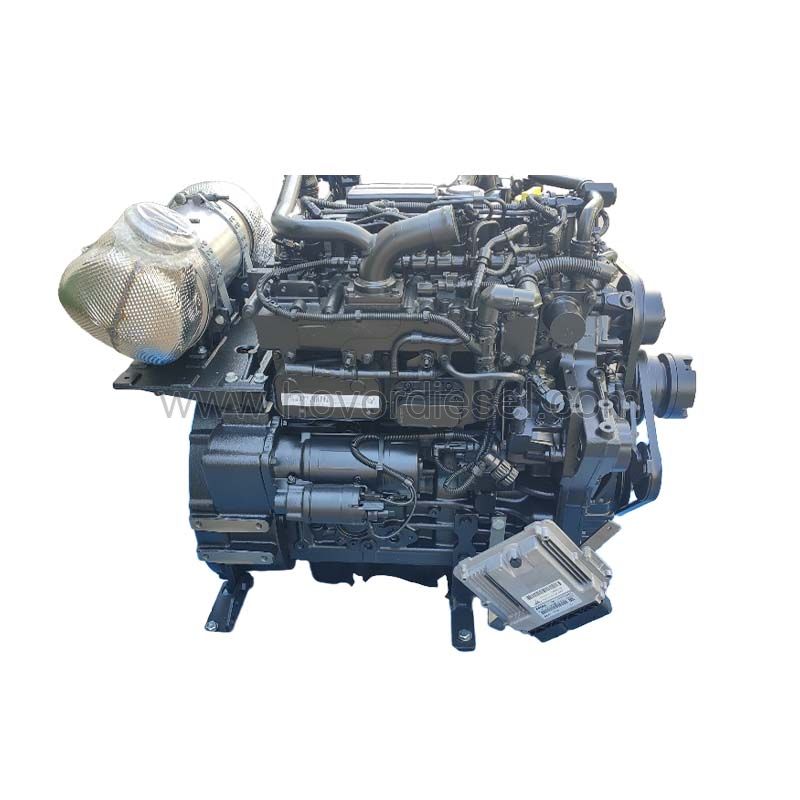

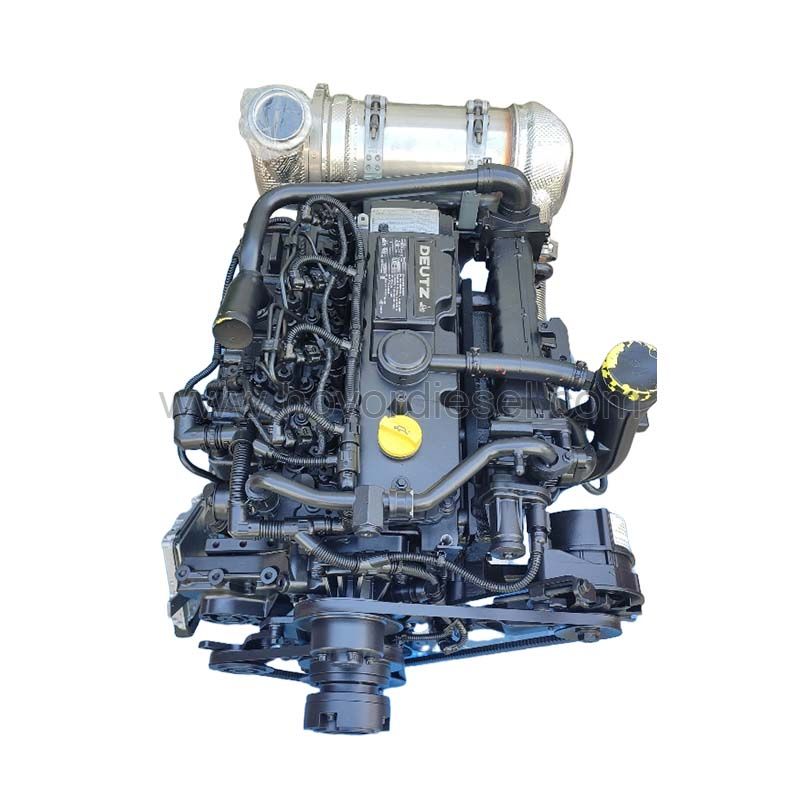

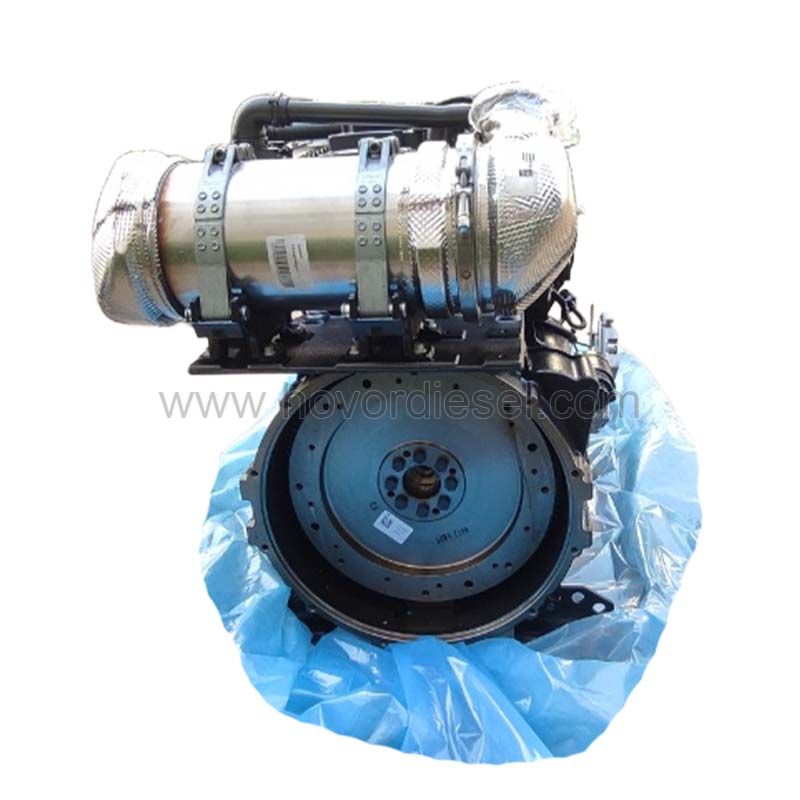

The DEUTZ TCD3.6 L04 is a 3.6-liter, inline 4-cylinder turbocharged diesel built for EU Stage V / EPA Tier 4 Final emissions. Common rail injection (up to 2000 bar) delivers 74–100kW (99–134 HP) and around 500 N·m of torque from 1400 to 1800 RPM. The fully integrated DOC+DPF+SCR aftertreatment saves installation space and simplifies OEM packaging. The compact cast-iron block, single serpentine belt, and replaceable cartridge oil filter make routine maintenance straightforward. Service intervals reach 1000 hours — about 5–8% better fuel economy than the previous 2012 series. We supply new OEM units, remanufactured engines with dyno reports, and genuine spares (injectors, DPF filters, EGR valves, cylinder heads). All engines are test-run, drained, and export-crated. Common applications include compact excavators, telehandlers, wheel loaders, and 80–120 kVA generator sets. Send us your requirements — we will reply with stock status and pricing within 24 hours.
Products Overview
TCD3.6 L04 | A | B | C | |
mm | 701 | 592 | 790 | |
Cyl No. and Arrangement | 4-Cyl in-line | |||
Bore/Stroke(mm) | 98/120 | |||
Air-intake way | Turbo charged cooling | |||
Combustion system | Direct injection | |||
Cooling way | Water-cooled | |||
Displacement(L) | 3.6 | |||
Max.Torque(N.m) | 500 | |||
Power(kw) | 100 | |||
Power(hp) | 136 | |||
Speed(rpm) | 2300 | |||
Net Weight(kg) | 350 | |||
Weight(kg) | 467 | |||
Dimension(L*W*H/cm) | 122*81*104 | |||
HS code: | 84089093290 | |||
Application: | construction machinery / generator set / mining equiment / water pump / truck | |||
Certification | ISO9001:2000 | |||
Warranty | 12 Months / 1000 Hours | |||
Quality Control | The engines have been rigorously tested | |||
Payment | T/T, Western Union. | |||
Service | Guidance on product issues through online and video support | |||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | ||||
