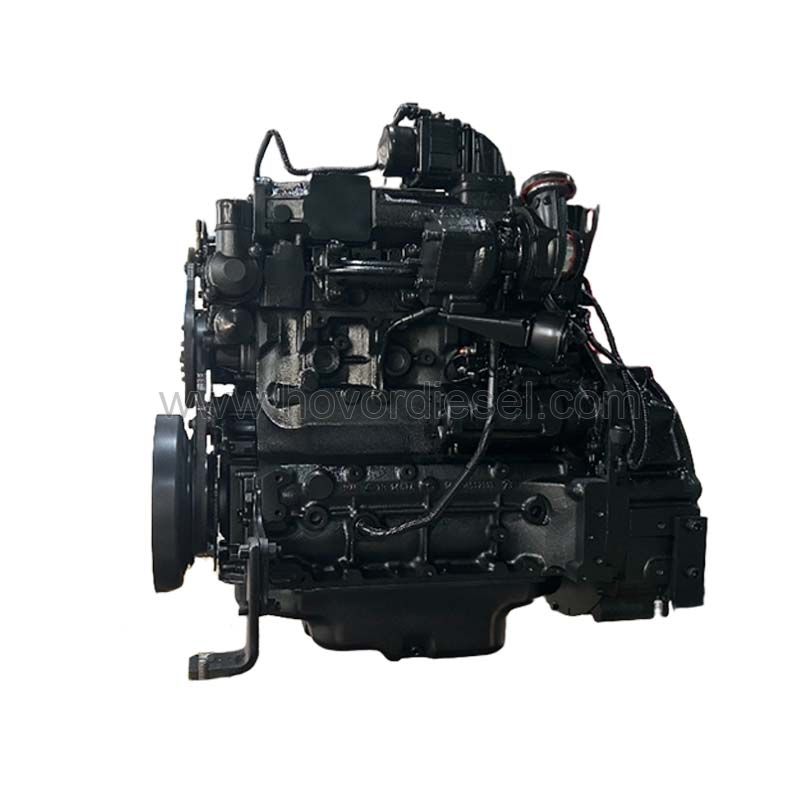

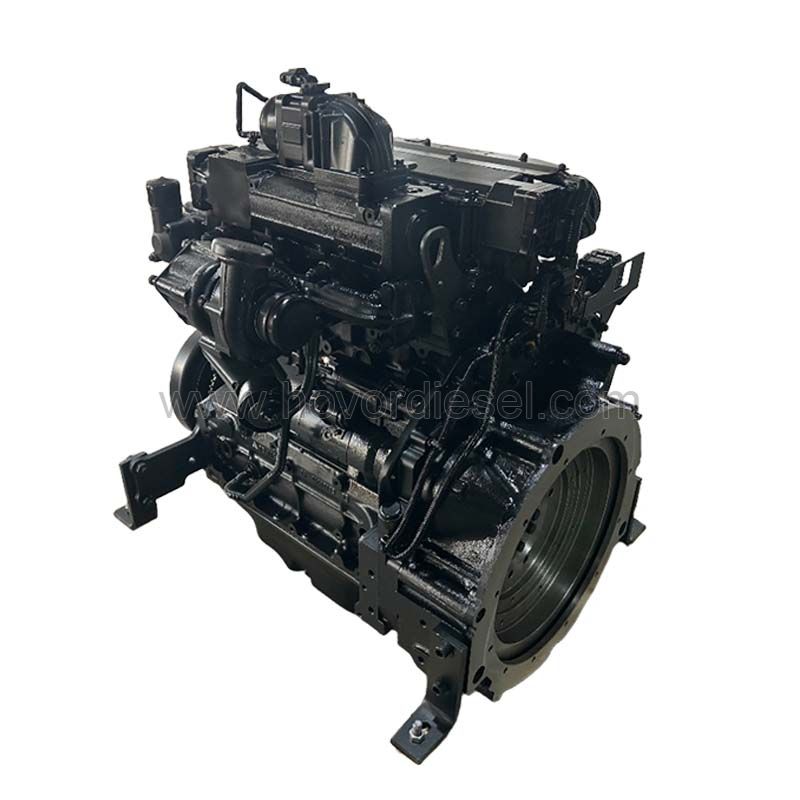

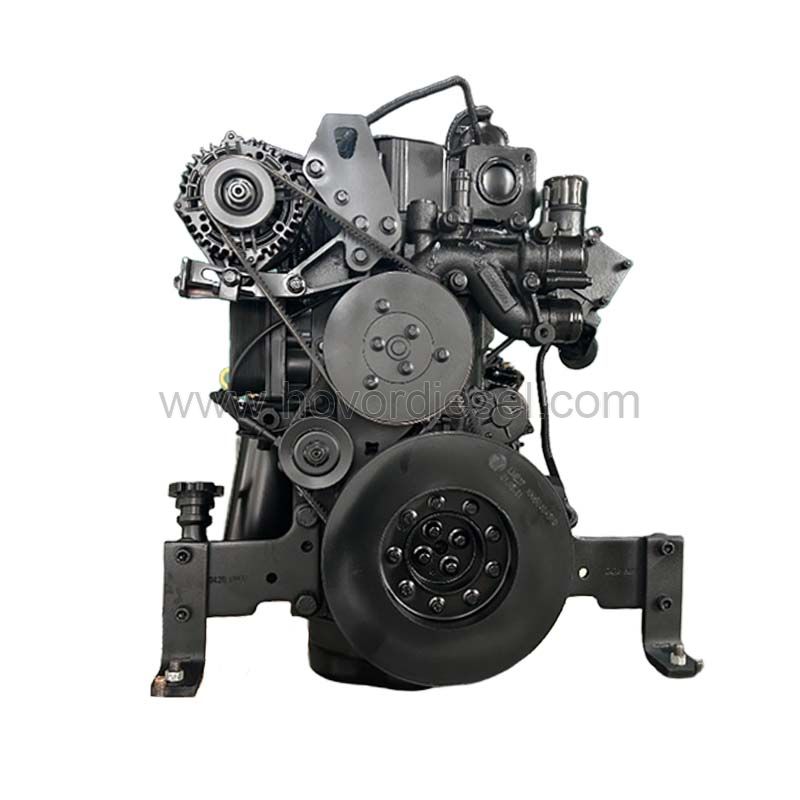

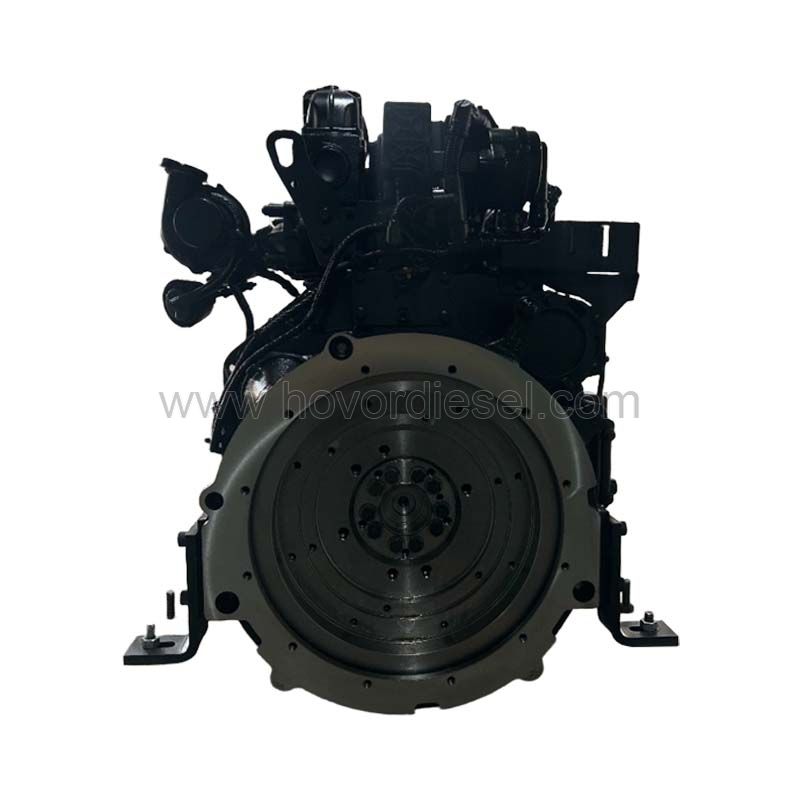

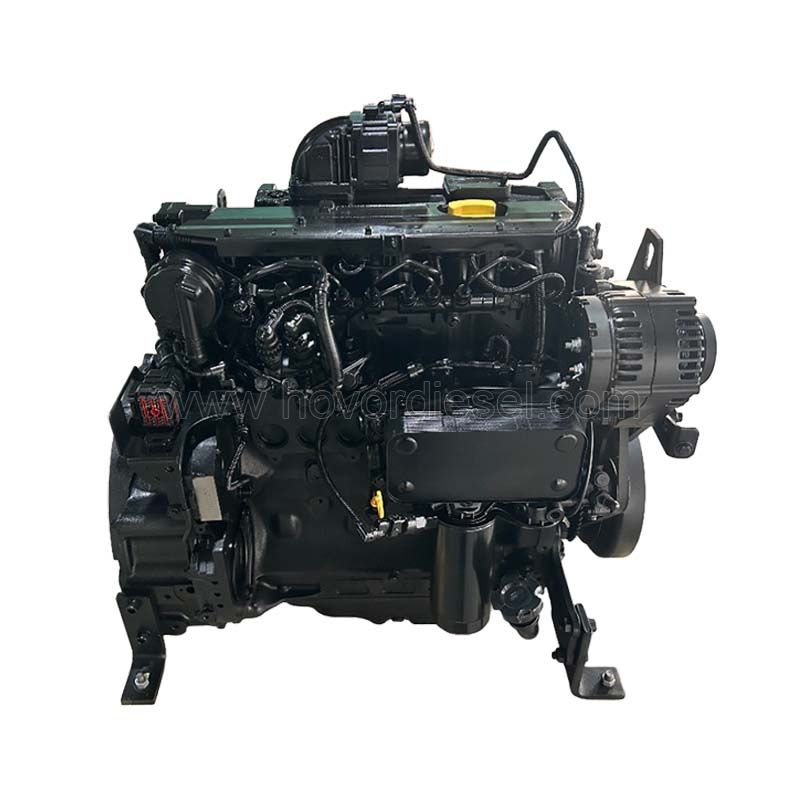

The DEUTZ TCD2012 L04 2V is a 4-cylinder, 4.0-liter (displacement: 3.96L), water-cooled diesel engine with common rail direct injection. It belongs to the DEUTZ 2012 family, designed for off-highway machinery requiring EU Stage IIIA / EPA Tier 3 emission compliance without a DPF (diesel particulate filter). The “2V” designation means 2 valves per cylinder—a deliberate engineering trade-off for lower maintenance and better low-speed response compared to the 4V version. With a power range of 80–120 kW (107–161 HP) at 1800–2300 RPM, this engine delivers a flat torque curve (max torque approx. 550 N·m). We supply new OEM units, remanufactured engines with warranty, and complete spare parts (ECU, injectors, HP pump, cylinder heads, piston rings). All engines are test-run before shipment.
Products Overview
TCD2012 L04 2V | A | B | C | ||
mm | 791 | 628 | 823 | ||
Cyl No. and Arrangement | 4-Cyl in-line | ||||
Bore/Stroke(mm) | 101/126 | ||||
Air-intake way | Turbo charged cooling | ||||
Combustion system | Direct injection | ||||
Cooling way | Water-cooled | ||||
Displacement(L) | 4.04 | ||||
Max.Torque(N.m) | 520 | ||||
Power(kw) | 120 | 103 | |||
Power(hp) | 161 | 138 | |||
Speed(rpm) | 2100 | 2400 | |||
Net Weight(kg) | 400 | ||||
Weight(kg) | 500 | ||||
Dimension(L*W*H/cm) | 115*90*125 | ||||
HS code: | 8408909290 | ||||
Application: | construction machinery / generator set / mining equiment / water pump / truck | ||||
Certification | ISO9001:2000 | ||||
Warranty | 12 Months / 1000 Hours | ||||
Quality Control | The engines have been rigorously tested | ||||
Payment | T/T, Western Union. | ||||
Service | Guidance on product issues through online and video support | ||||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |||||
