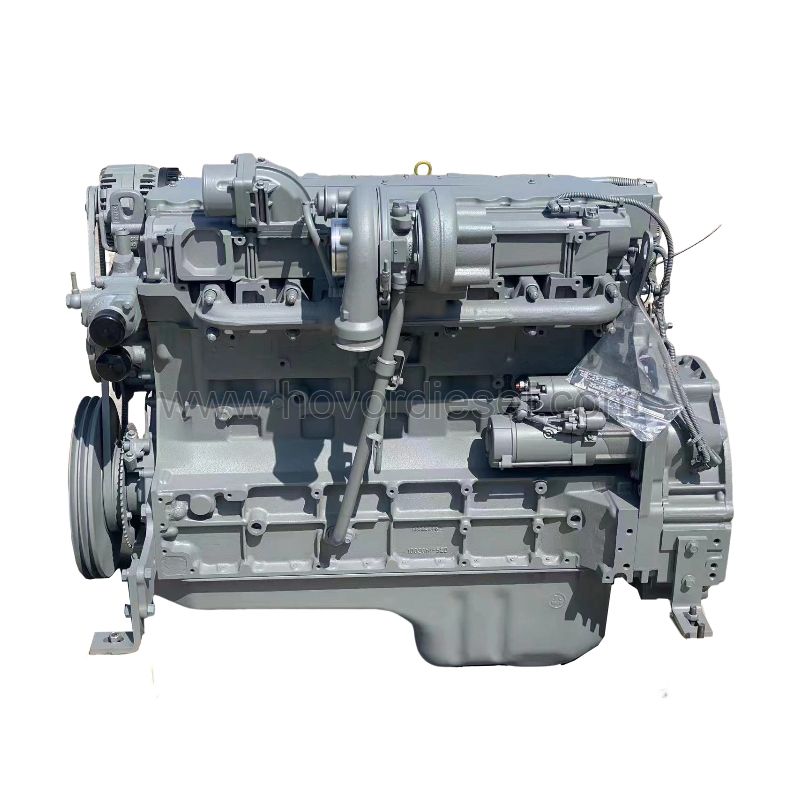

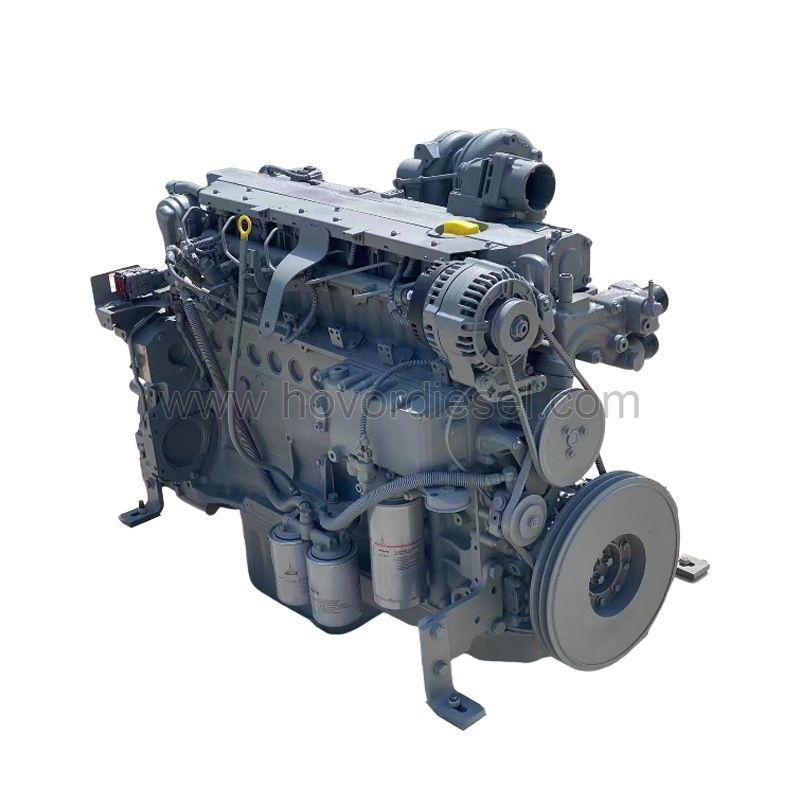

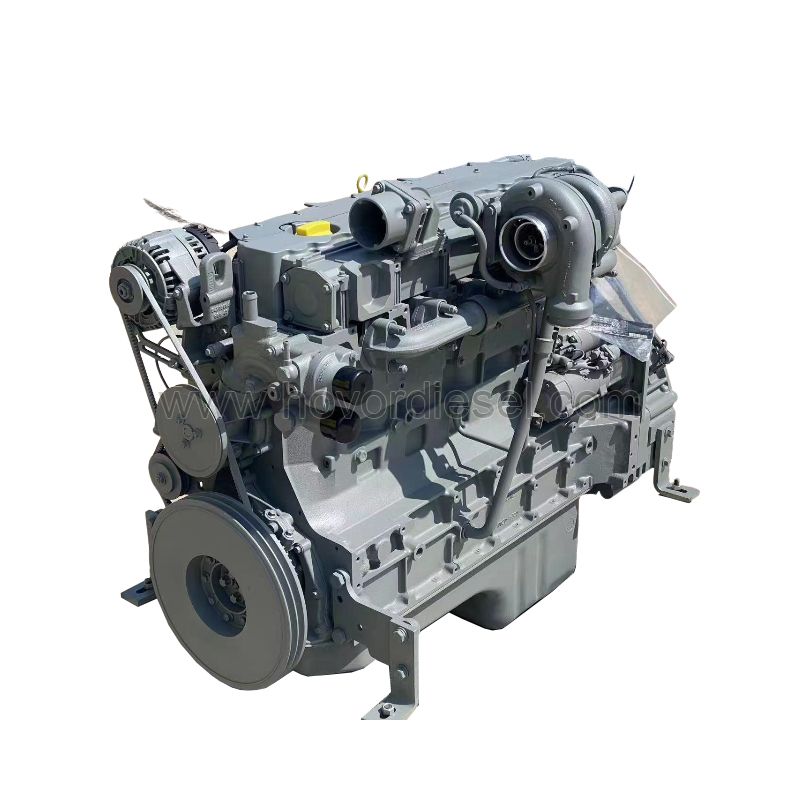

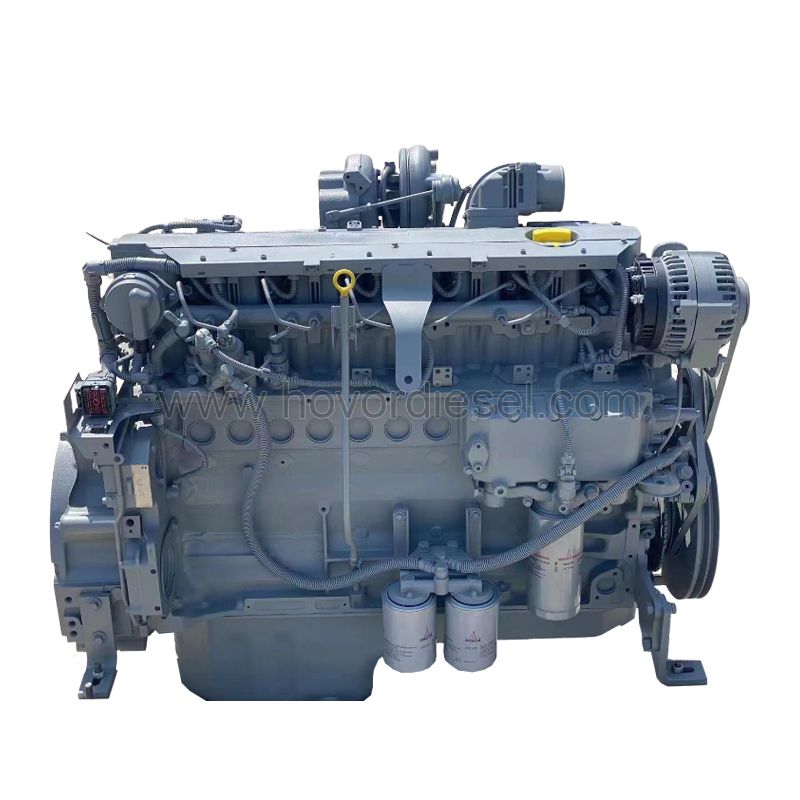

TCD2013L062V machinery diesel engines water cooled 6 cylinder 4 stroke for deutz engine assembly

The DEUTZ TCD2013 L06 2V is a 7.2-liter, inline 6-cylinder turbocharged diesel with common rail injection (up to 1800 bar), certified for EU Stage IIIA / EPA Tier 3. It delivers 150–220kW (200–295 HP) with peak torque of 900–1100 N·m from 1200 to 1600 RPM. The 2-valve per cylinder design means fewer moving parts, easier rebuilds, and stronger low-end lugging compared to 4-valve engines. Wet cylinder liners allow in-field overhaul. Deep-skirt block with gear-driven balancer cancels vibration. Service at 500 hours. We supply new OEM, remanufactured (dyno-tested), and genuine spares (injectors, pumps, turbos, heads, gasket kits). All engines test-run and export-crated. Common uses: 5–7 ton loaders, 20–25 ton excavators, combines, 150–250 kVA gensets. Contact us — quote in 24 hours.

Inquire Now Next Product

Products Overview

TCD2013 L06 2V		A		B		C
	mm	1154		694		991
Cyl No. and Arrangement	6-Cyl in-line
Bore/Stroke(mm)	108/130
Air-intake way	Turbo charged cooling
Combustion system	Direct injection
Cooling way	Water-cooled
Displacement(L)	7.2
Max.Torque(N.m)	1050
Power(kw)	136		156		200
Power(hp)	182		210		268
Speed(rpm)	1500		1800		2300
Net Weight(kg)	610
Weight(kg)	700
Dimension(LWH/cm)	14090125
HS code:	8408909390
Application:	construction machinery / generator set / mining equiment / water pump / truck
Certification	ISO9001:2000
Warranty	12 Months / 1000 Hours
Quality Control	The engines have been rigorously tested
Payment	T/T, Western Union.
Service	Guidance on product issues through online and video support
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
