Application range
Generator set
Compressor set
Construction machinery
Agricultural machinery
Products Overview
Technical Parameter

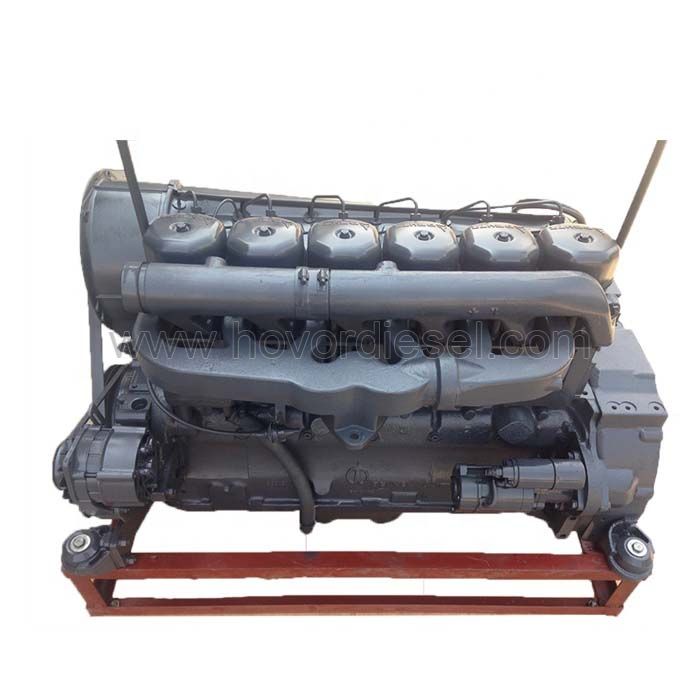

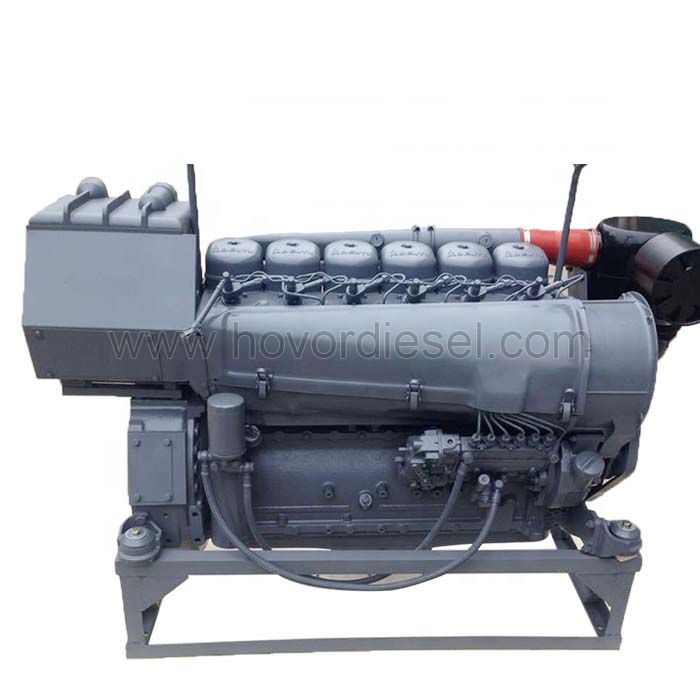

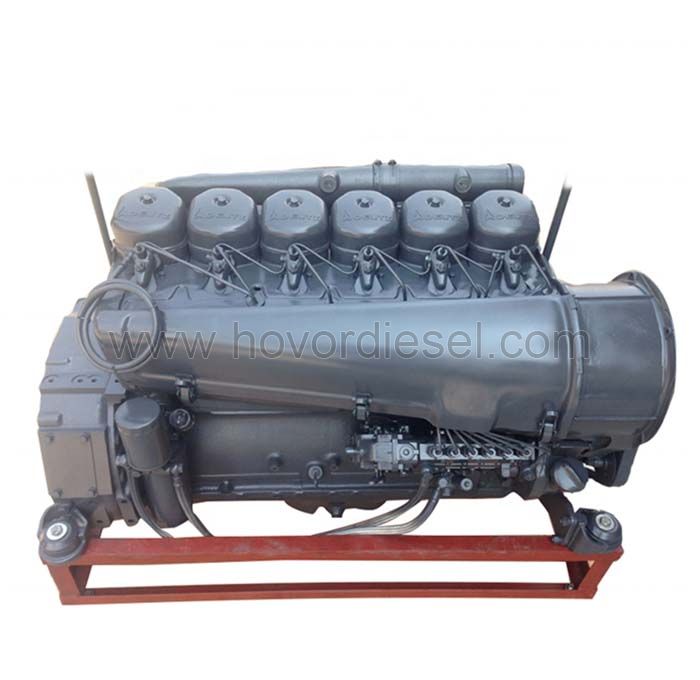

| Model | F6L912 | |||
| No. of Cly | 6 | |||
| Bore/stroke(mm) | 100/120 | |||
| Displacement(L) | 5.63.77 | |||
| Air-intake system | Naturally aspirated | |||
| Power/Rev(kw/rpm) | 48/1500 | 60/1800 | 74/2300 | 78/2500 |
| Max torque(N.m) | 230 | |||
| Compression ratio | 17:1 | |||
| Direction of rotation(facing cooling blower) | Clockwise | |||
| Dimension(cm) | 128*83*106cm | |||
| Weight(kg) | 550 | |||
Output power curve
Section plane of engine
