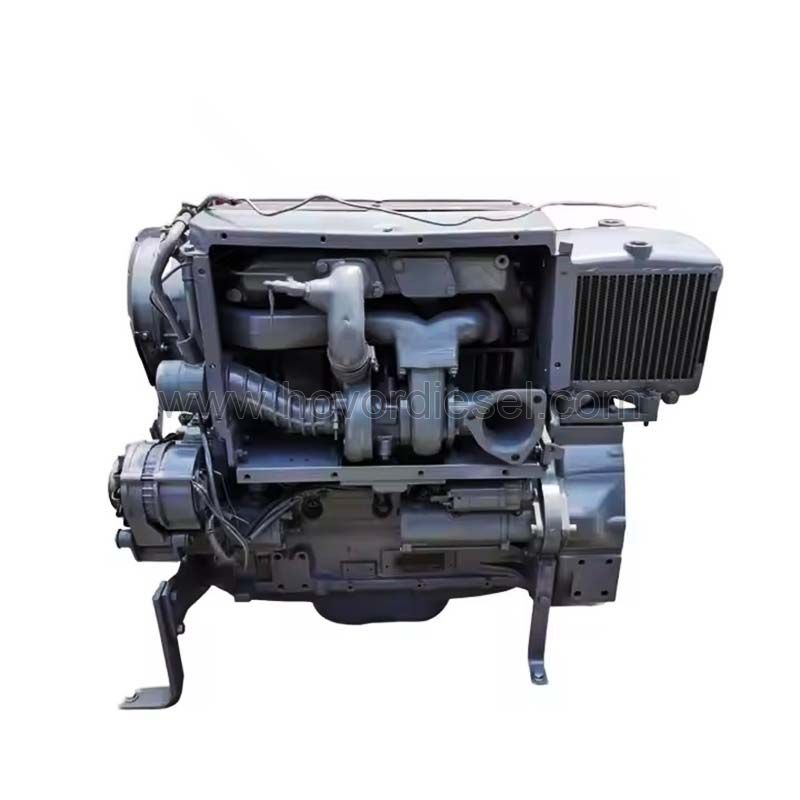

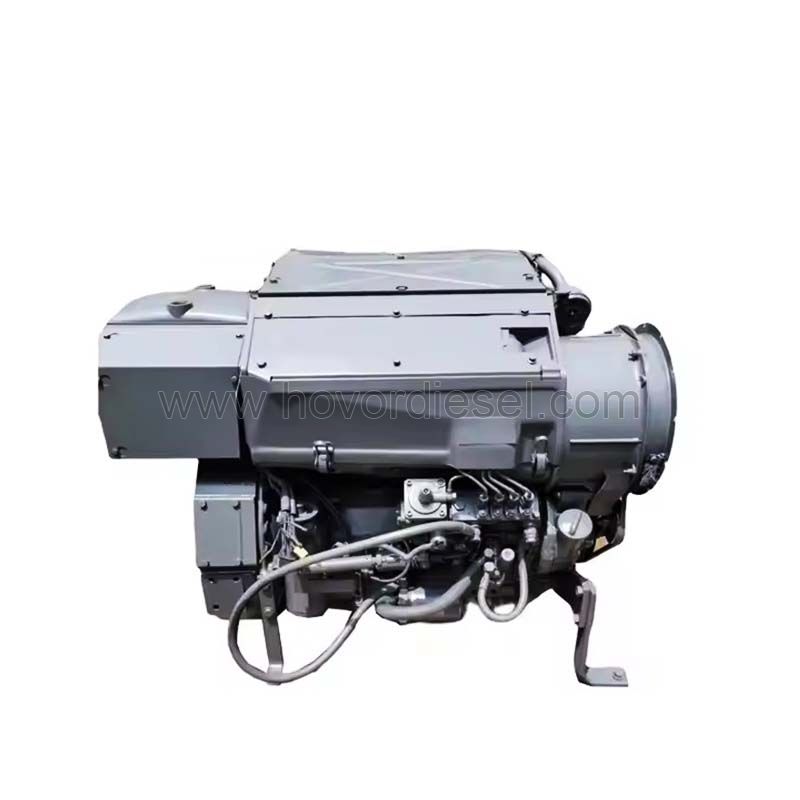

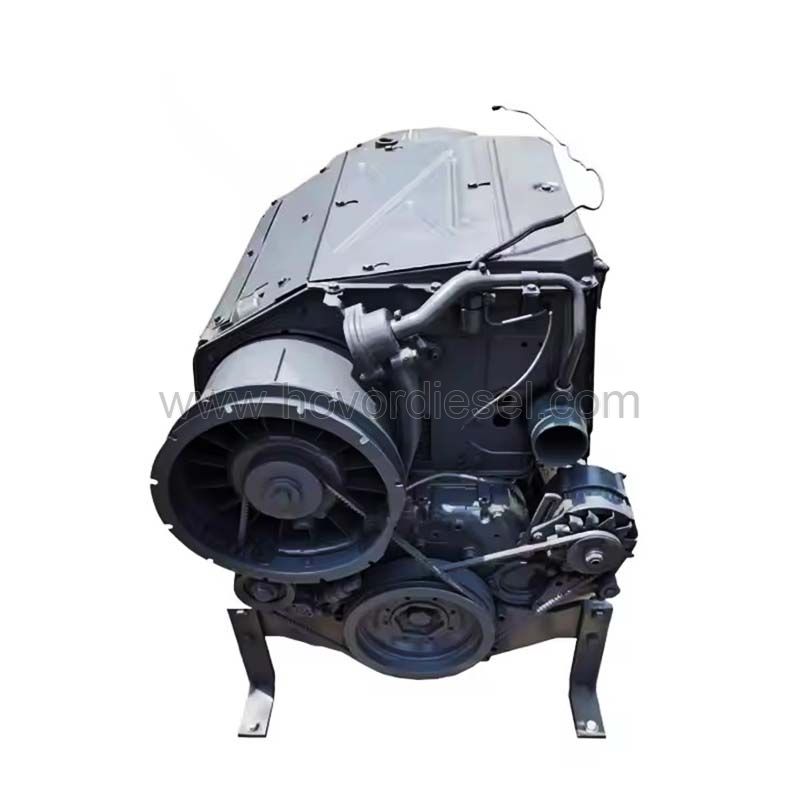

The DEUTZ BF4L914 is a 4-cylinder inline air-cooled turbocharged diesel engine with 3.8L displacement, delivering 50–75 kW at 2000–2500 rpm. Designed for compact equipment where space is limited — skid steers, small pavers, and refrigeration units. The axial cooling blower eliminates radiator, water pump, and coolant hoses, reducing overall length by 150mm compared to liquid-cooled equivalents. Mechanical governor and in-line injection pump allow on-site adjustments without laptops. Individual cylinder barrels enable partial rebuilds. Each unit includes 12V starter, 55A alternator, and oil-bath air cleaner option for dusty sites. Supplied with SAE 4 flywheel housing. Optional low-profile oil pan for ground clearance. Compatible with original Deutz 914 mounting patterns.
Products Overview
BF4L914 | A | B | C | ||
mm | 820 | 669 | 823 | ||
Cyl No. and Arrangement | 4-Cyl in-line | ||||
Bore/Stroke(mm) | 102/132 | ||||
Air-intake way | Turbo charged | ||||
Combustion system | Direct injection | ||||
Cooling way | Air-cooled | ||||
Displacement(L) | 4.314 | ||||
Max.Torque(N.m) | 360 | ||||
Power(kw) | 54 | 62 | 66 | 78 | |
Power(hp) | 72 | 83 | 89 | 105 | |
Speed(rpm) | 1500 | 1800 | 2300 | 2500 | |
Net Weight(kg) | 340 | ||||
Weight(kg) | 360 | ||||
Dimension(L*W*H/cm) | 107*84*111 | ||||
HS code: | 8408909290 | ||||
Application: | construction machinery / generator set / mining equiment / water pump / truck | ||||
Certification | ISO9001:2000 | ||||
Warranty | 12 Months / 1000 Hours | ||||
Quality Control | The engines have been rigorously tested | ||||
Payment | T/T, Western Union. | ||||
Service | Guidance on product issues through online and video support | ||||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |||||
