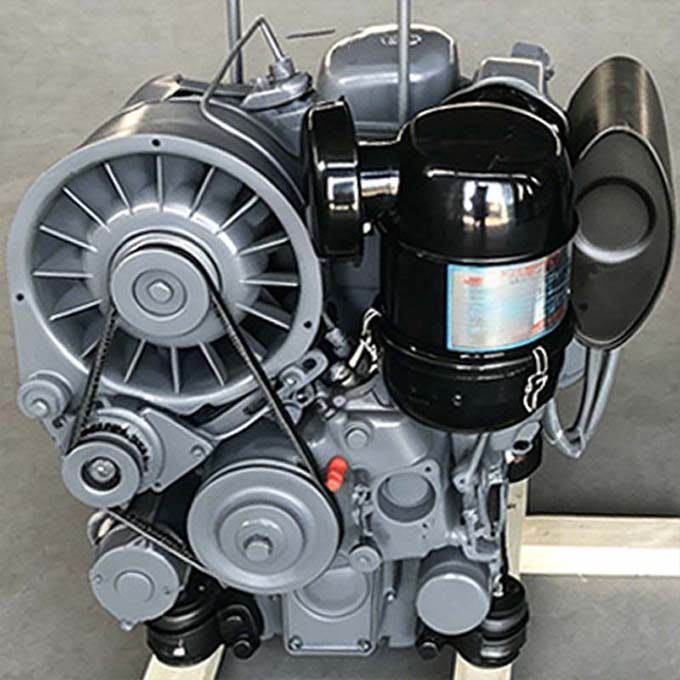

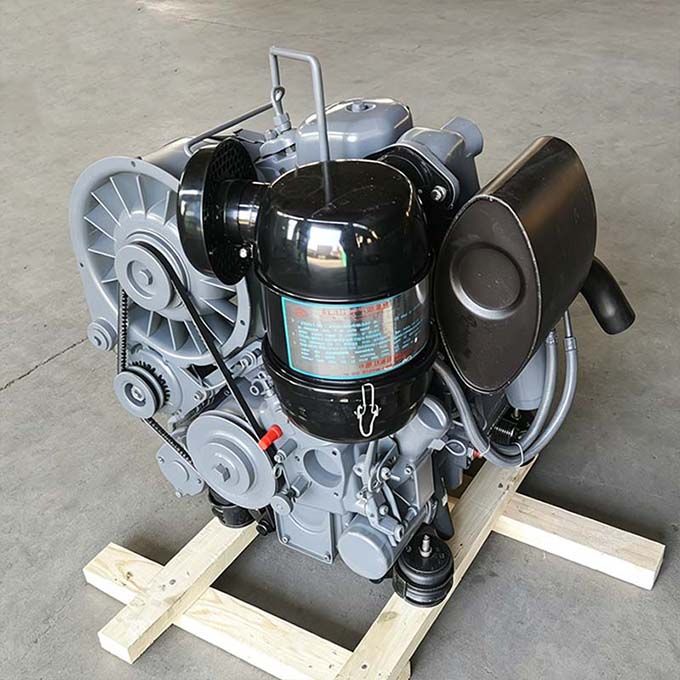

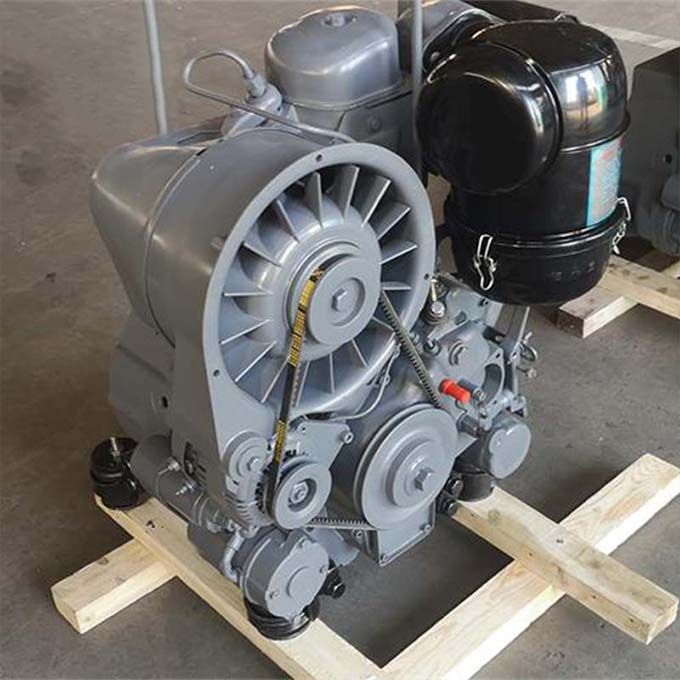

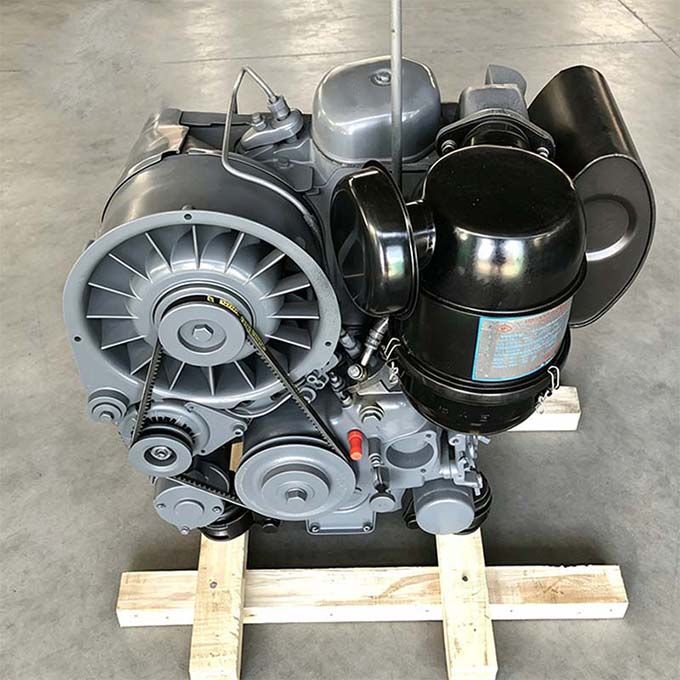

Deutz F1L511 Engine – Reliable Single-Cylinder Air-Cooled Diesel Power

This page provides technical specifications, compatible applications, and sourcing options for the Deutz F1L511 engine, a single-cylinder, air-cooled diesel unit widely used in agricultural machinery, small construction equipment, compressors, and marine auxiliary power. Unlike common automotive engines, the F1L511 features a direct-injection system and robust cast-iron construction, ensuring low fuel consumption and long service intervals under continuous load. We supply both new aftermarket F1L511 engines and OEM-spec replacement assemblies from verified Chinese foundries, with pre-shipment testing for compression, injection timing, and valve clearance. For buyers searching for “Deutz F1L511 engine for sale” or “replacement F1L511 for genset”, our stock includes bare engines, full pump assemblies, and partial rebuild kits.

Inquire Now Next Product

Products Overview

F1L511			A			B		C
	mm		392			525		671
Cyl No. and Arrangement	1-Cyl in-line
Bore/Stroke(mm)	100/105
Air-intake way	Natural intake
Combustion system	Direct injection
Cooling way	Air-cooled
Displacement(L)	0.83
Max.Torque(N.m)	44
Power(kw)	5.7	7.3		8.2	9.7		10.5		10.9
Power(hp)	7.7	9.9		11.1	13.2		14.3		14.8
Speed(rpm)	1500	1800		2000	2500		2800		3000
Net Weight(kg)	110
Weight(kg)	190
Dimension(LWH/cm)	607599
HS code:	8408909290
Application:	construction machinery / generator set / mining equiment / water pump / truck
Certification	ISO9001:2000
Warranty	12 Months / 1000 Hours
Quality Control	The engines have been rigorously tested
Payment	T/T, Western Union, Alibaba online payment.
Service	Guidance on product issues through online and video support
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number or nameplate.

Tags: F1L511, f1l511 engine, deutz f1l511, deutz f1l511 engine
