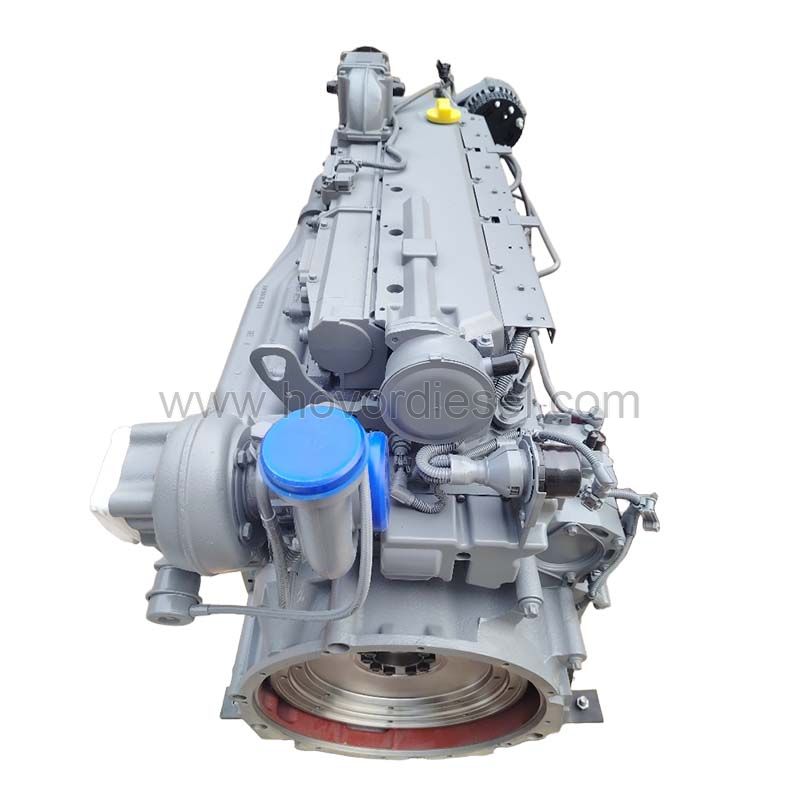

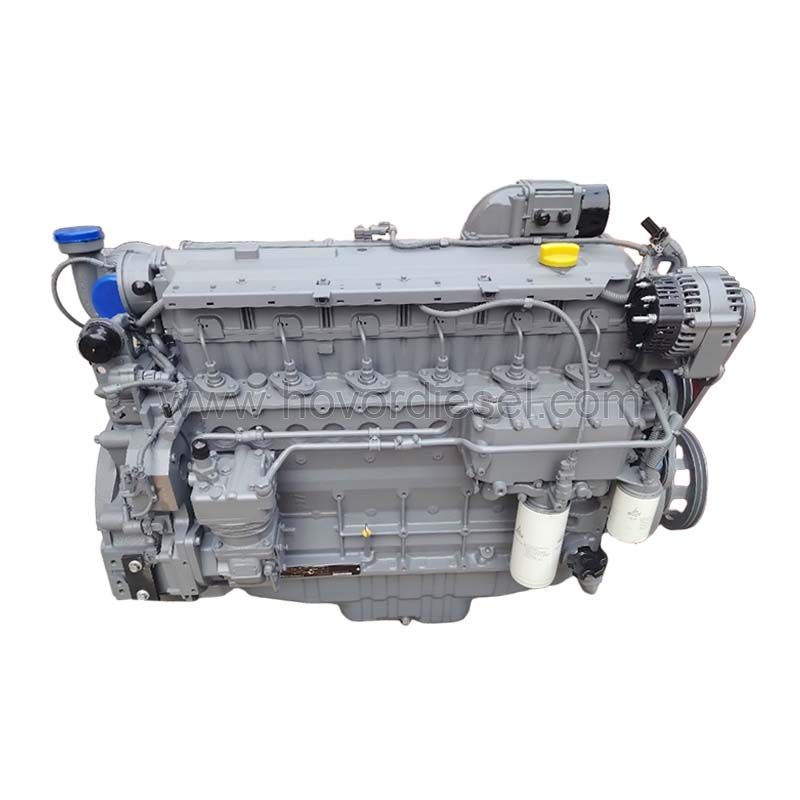

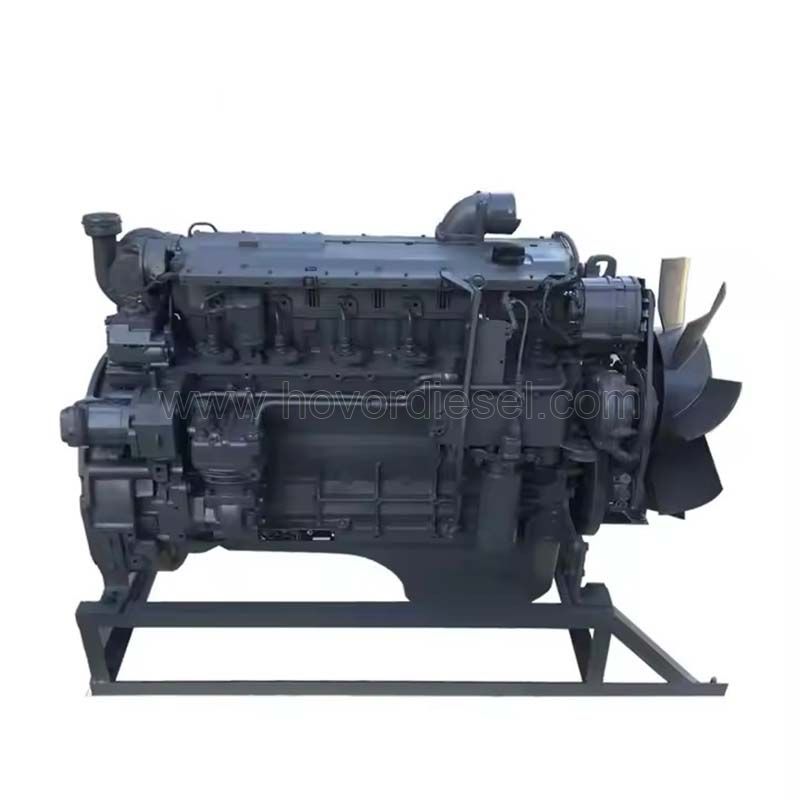

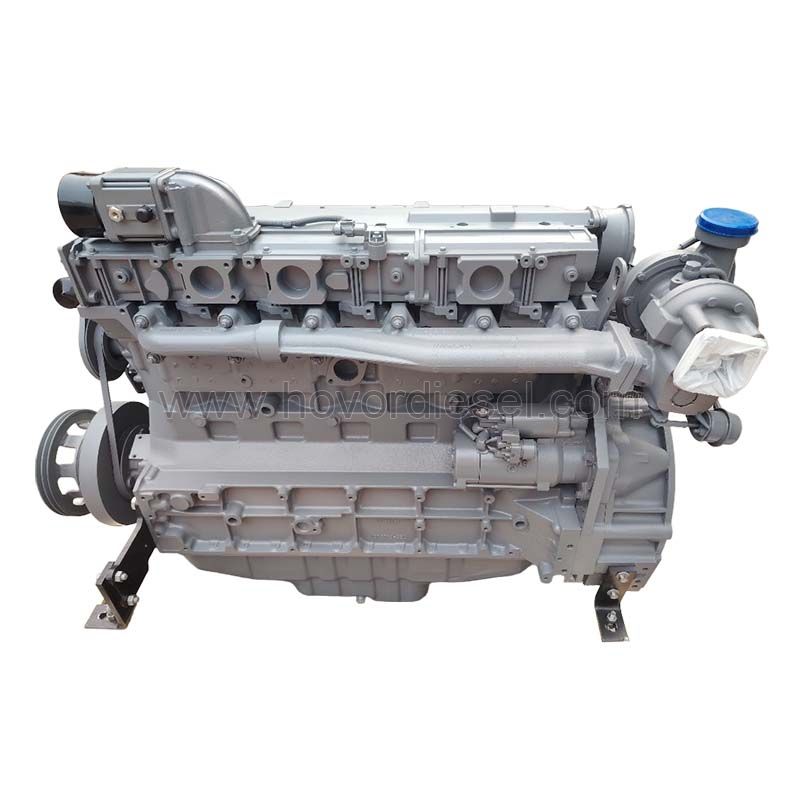

The DEUTZ BF6M1013CP is a 6-cylinder inline diesel engine with 7.2 liters displacement. Bore × stroke: 108mm × 130mm. Turbocharged with air-to-air aftercooling. Common rail fuel system with electronic control. Power output: 130–200 kW at 1900–2500 rpm. Max torque: 950 N·m at 2300 rpm.Emissions: EU Stage II / IIIA compliant depending on pump calibration. The CP version uses a compact ECU with fewer sensors than ECP – no exhaust gas recirculation, no diesel particulate filter. Simplified electronics reduce wiring complexity.Typical applications: 8–16 ton rough terrain forklifts, rotary screw compressors, 150–250 kVA standby gensets, and concrete mixers. Also used in sweepers and small road rollers.We supply complete BF6M1013CP engines, CP1 pumps, injectors, and ECUs. All units cold-tested and oil-primed. Export packing for sea freight.
Products Overview
BF6M1013CP | A | B | C | |
mm | 1158 | 760 | 845 | |
Cyl No. and Arrangement | 6-Cyl in-line | |||
Bore/Stroke(mm) | 108/130 | |||
Air-intake way | Turbo charged cooling | |||
Combustion system | Direct injection | |||
Cooling way | Water-cooled | |||
Displacement(L) | 7.14 | |||
Max.Torque(N.m) | 946 | |||
Power(kw) | 190 | |||
Power(hp) | 255 | |||
Speed(rpm) | 2300 | |||
Net Weight(kg) | 572 | |||
Weight(kg) | 650 | |||
Dimension(L*W*H/cm) | 140*95*110 | |||
HS code: | 8408909390 | |||
Application: | construction machinery / generator set / mining equiment / water pump / truck | |||
Certification | ISO9001:2000 | |||
Warranty | 12 Months / 1000 Hours | |||
Quality Control | The engines have been rigorously tested | |||
Payment | T/T, Western Union. | |||
Service | Guidance on product issues through online and video support | |||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | ||||
