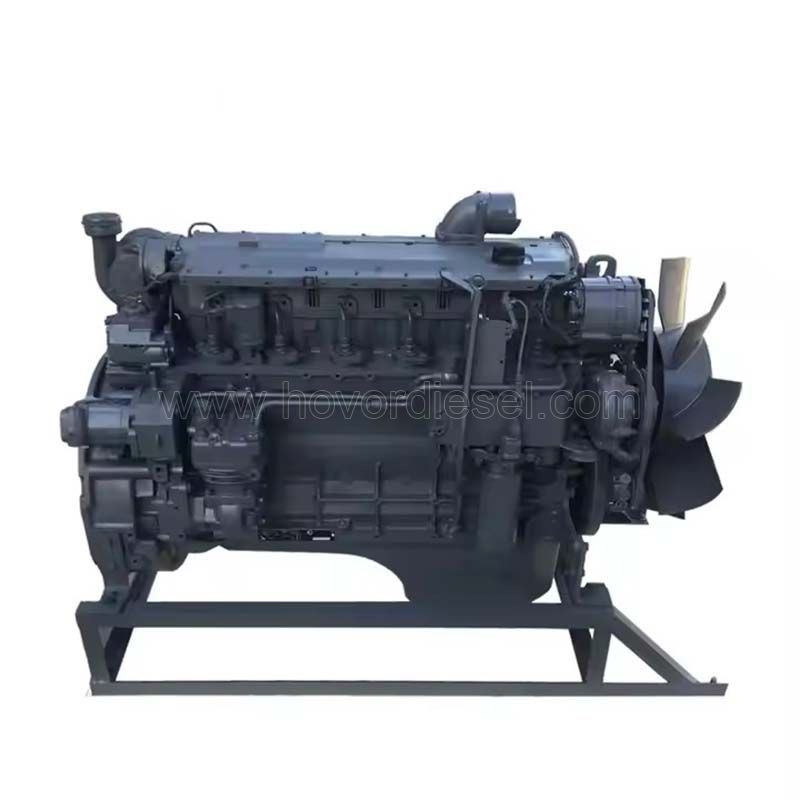

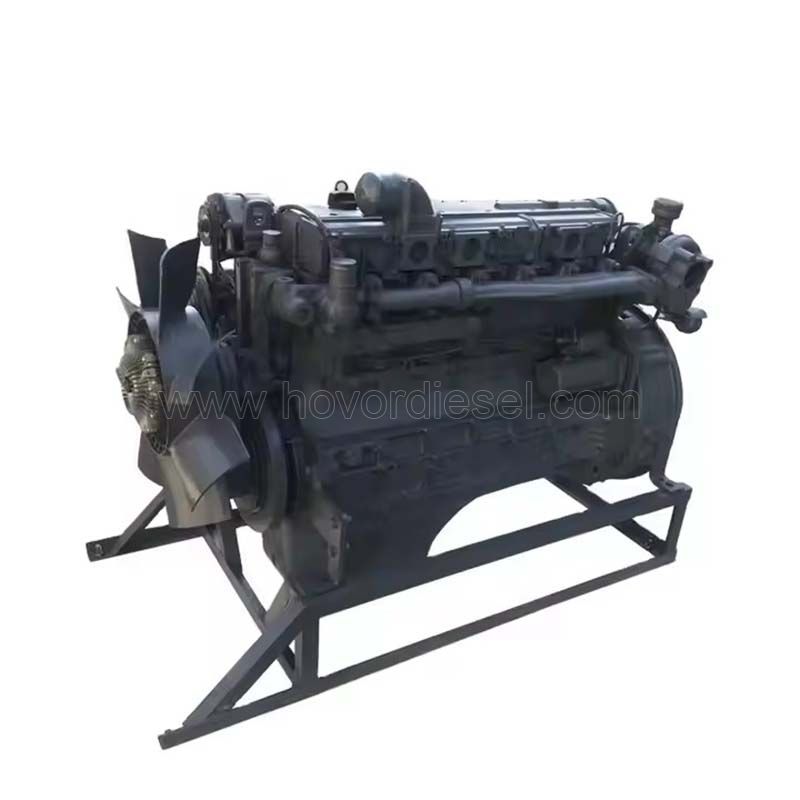

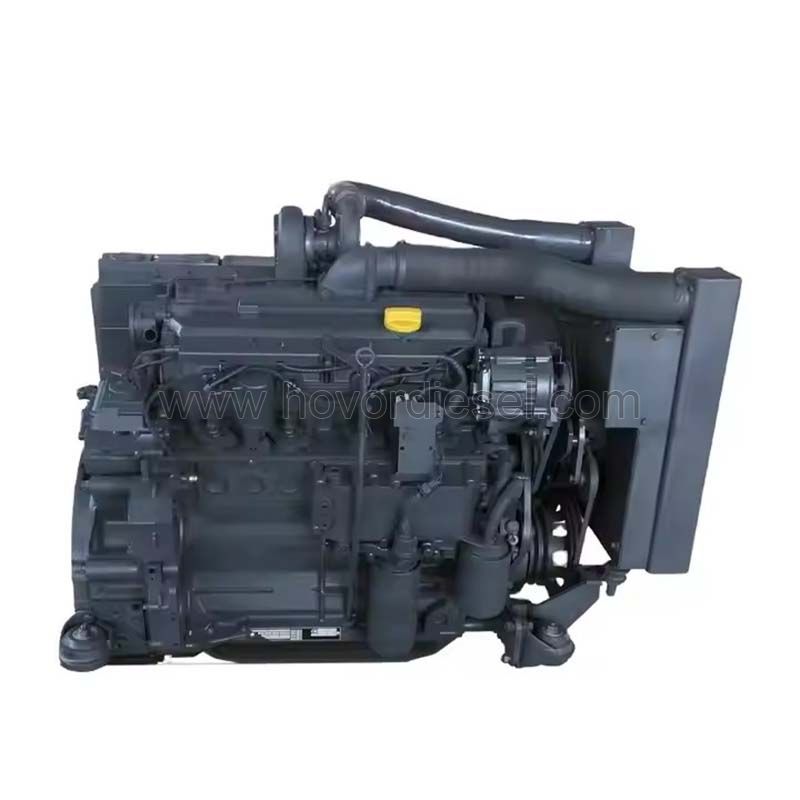

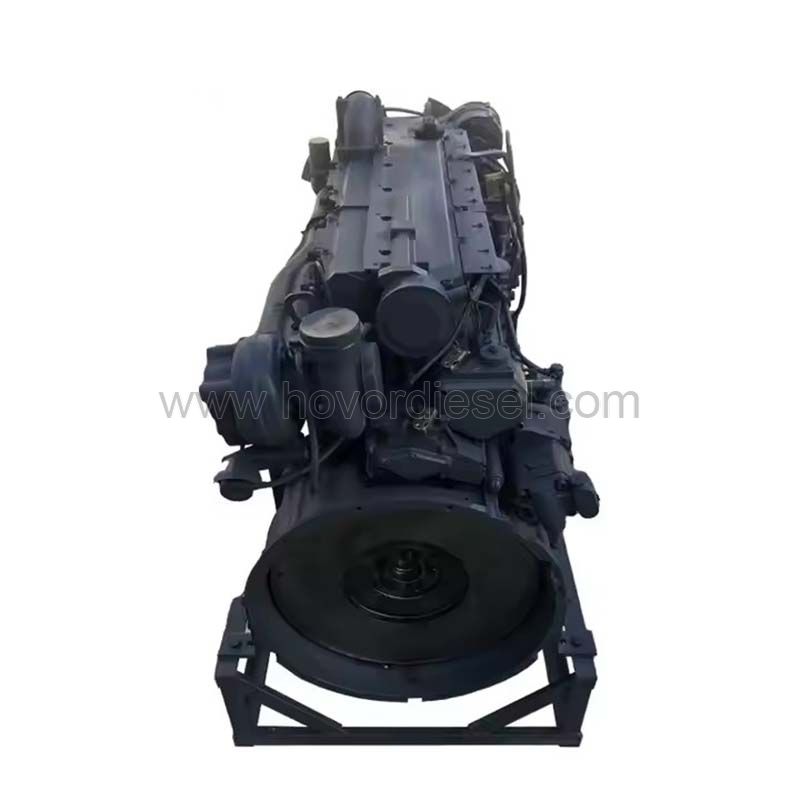

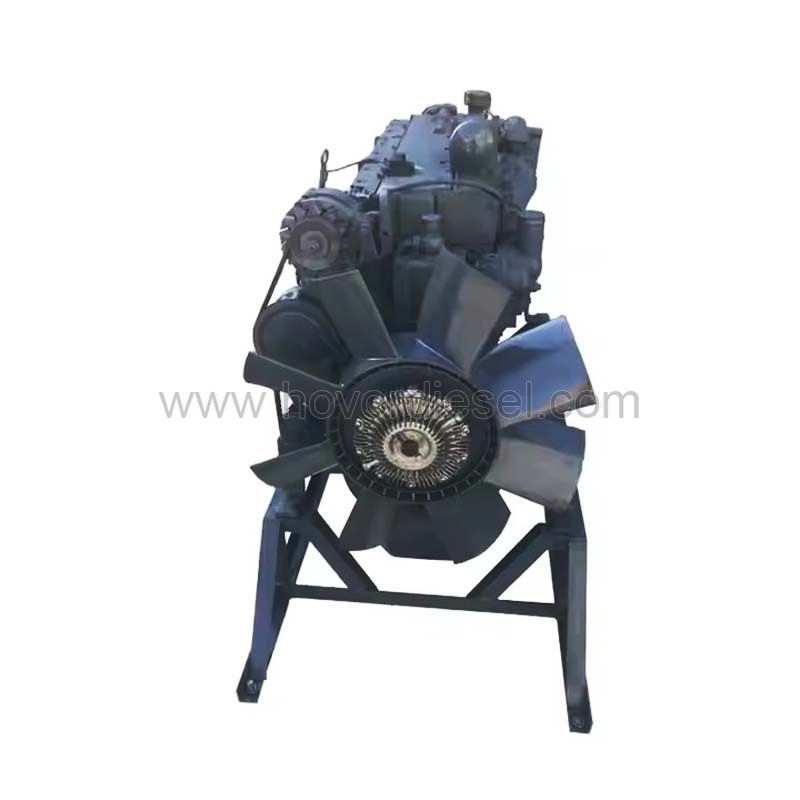

The DEUTZ BF6M1013ECP is a 6-cylinder inline diesel engine with 7.2 liters displacement. Bore × stroke: 108mm × 130mm. Turbocharged with charge-air cooling. High-pressure common rail fuel system (1600 bar) with electronic control unit. Power: 150–200 kW at 1800–2300 rpm. Max torque: 950 N·m at 2300 rpm.Emissions: EU Stage IIIA / EPA Tier 3. The ECP version features full-authority ECU managing injection timing, pressure, and pilot injection for reduced combustion noise. Hydraulic lash adjusters eliminate valve clearance maintenance.Typical applications: 5–8 ton wheel loaders, 15–25 ton excavators, 100–200 kVA gensets, and mobile concrete pumps. Also used in agricultural tractors (180-260hp).We supply complete BF6M1013ECP engines, injectors, ECUs, and engine looms. Dyno-tested with data report.
Products Overview
BF6M1013ECP | A | B | C | |
mm | 1162 | 683 | 990 | |
Cyl No. and Arrangement | 6-Cyl in-line | |||
Bore/Stroke(mm) | 108/130 | |||
Air-intake way | Turbo charged cooling | |||
Combustion system | Direct injection | |||
Cooling way | Water-cooled | |||
Displacement(L) | 7.14 | |||
Max.Torque(N.m) | 954 | |||
Power(kw) | 195 | |||
Power(hp) | 260 | |||
Speed(rpm) | 2300 | |||
Net Weight(kg) | 572 | |||
Weight(kg) | 650 | |||
Dimension(L*W*H/cm) | 156*84*123 | |||
HS code: | 8408909390 | |||
Application: | construction machinery / generator set / mining equiment / water pump / truck | |||
Certification | ISO9001:2000 | |||
Warranty | 12 Months / 1000 Hours | |||
Quality Control | The engines have been rigorously tested | |||
Payment | T/T, Western Union. | |||
Service | Guidance on product issues through online and video support | |||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | ||||
