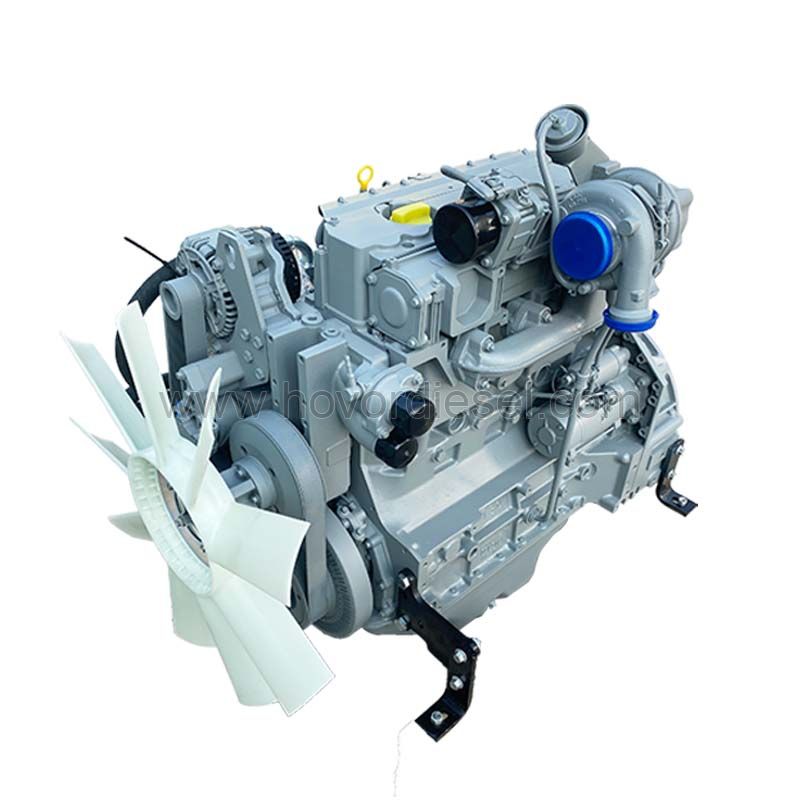

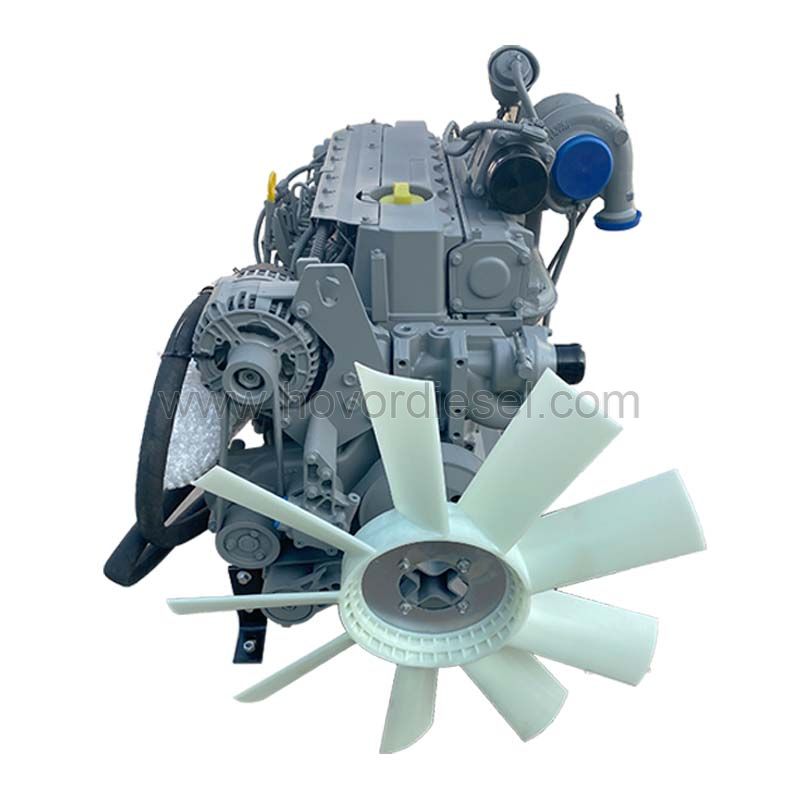

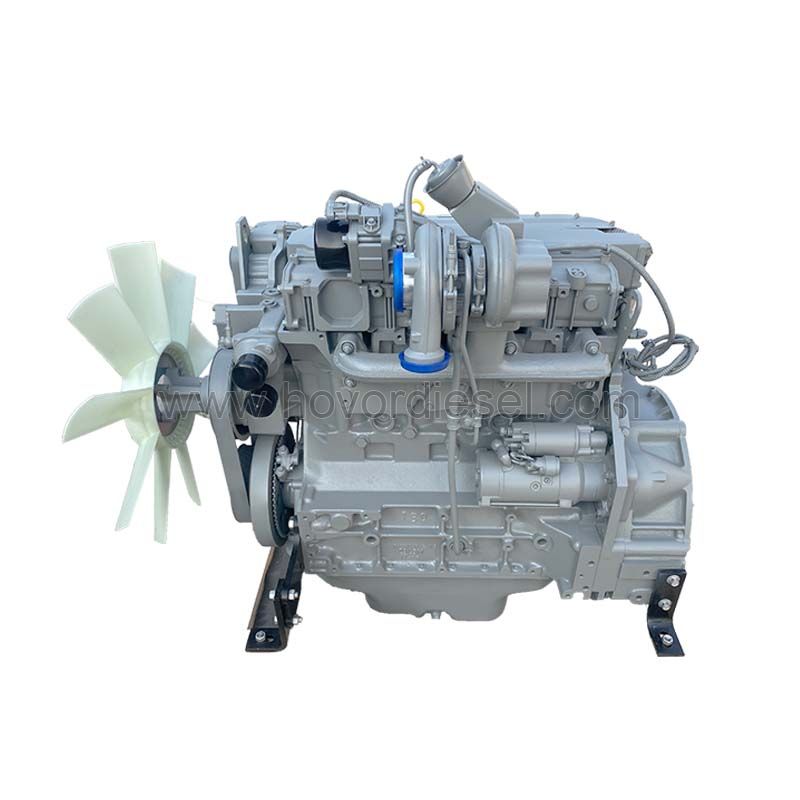

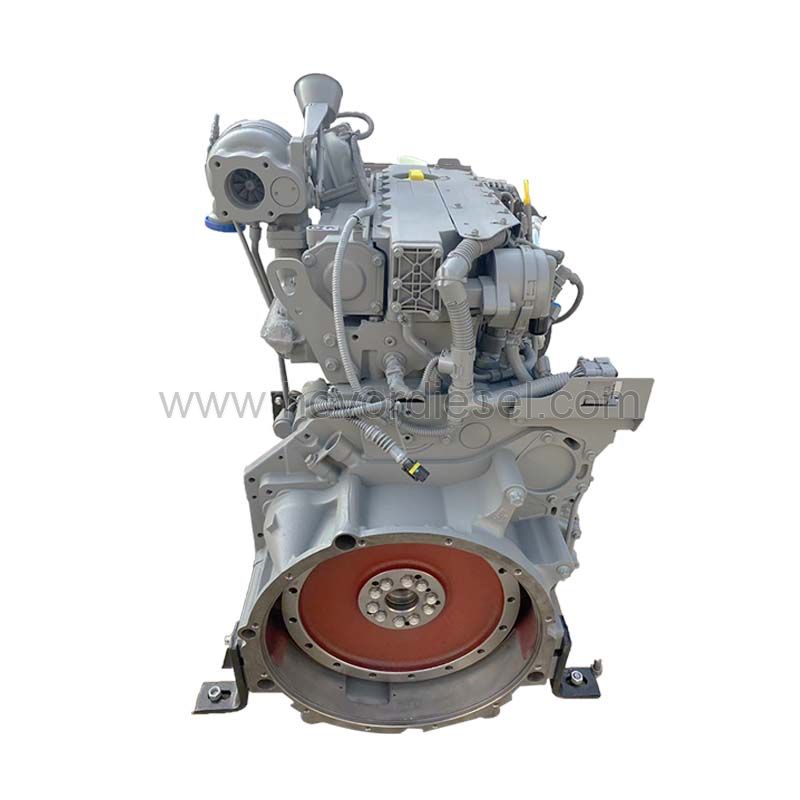

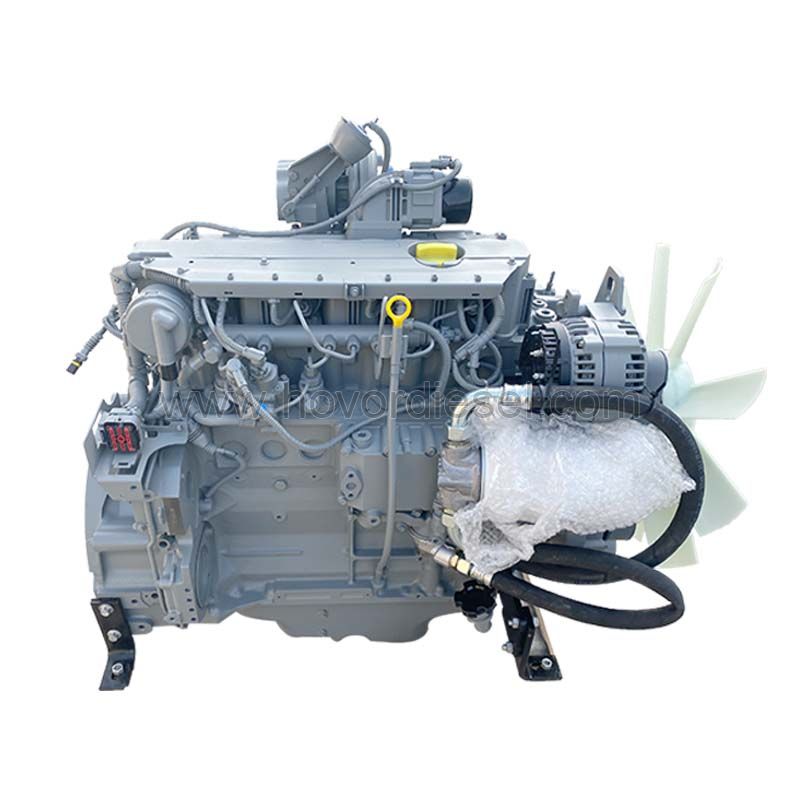

The DEUTZ TCD2013 L04 2V is a 4.8-liter, inline 4-cylinder turbocharged diesel with common rail injection (1800 bar), certified for EU Stage IIIA / EPA Tier 3. It delivers 100–150kW (134–201 HP) with peak torque of 600–800 N·m from 1200 to 1600 RPM. The 2-valve per cylinder head simplifies maintenance and improves low-RPM combustion. Wet liners allow rebuilds without machining. Gear-driven balancer cancels 4-cylinder vibration. Cast-iron pump housing — no plastic failures. Service at 400–500 hours. We supply new OEM, remanufactured (dyno-tested), and genuine spares (injectors, pumps, turbos, heads, gaskets). All units test-run and export-crated. Common uses: 3–5 ton loaders, 12–18 ton excavators, combines, 120–180 kVA gensets. Send requirements — quote within 24 hours.
Products Overview
TCD2013 L04 2V | A | B | C | |||
mm | 857 | 638 | 870 | |||
Cyl No. and Arrangement | 4-Cyl in-line | |||||
Bore/Stroke(mm) | 108/130 | |||||
Air-intake way | Turbo charged cooling | |||||
Combustion system | Direct injection | |||||
Cooling way | Water-cooled | |||||
Displacement(L) | 4.8 | |||||
Max.Torque(N.m) | 670 | |||||
Power(kw) | 90 | 103 | 129 | |||
Power(hp) | 121 | 138 | 173 | |||
Speed(rpm) | 1500 | 1800 | 2300 | |||
Net Weight(kg) | 500 | |||||
Weight(kg) | 600 | |||||
Dimension(L*W*H/cm) | 115*90*125 | |||||
HS code: | 8408909290 | |||||
Application: | construction machinery / generator set / mining equiment / water pump / truck | |||||
Certification | ISO9001:2000 | |||||
Warranty | 12 Months / 1000 Hours | |||||
Quality Control | The engines have been rigorously tested | |||||
Payment | T/T, Western Union. | |||||
Service | Guidance on product issues through online and video support | |||||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | ||||||
