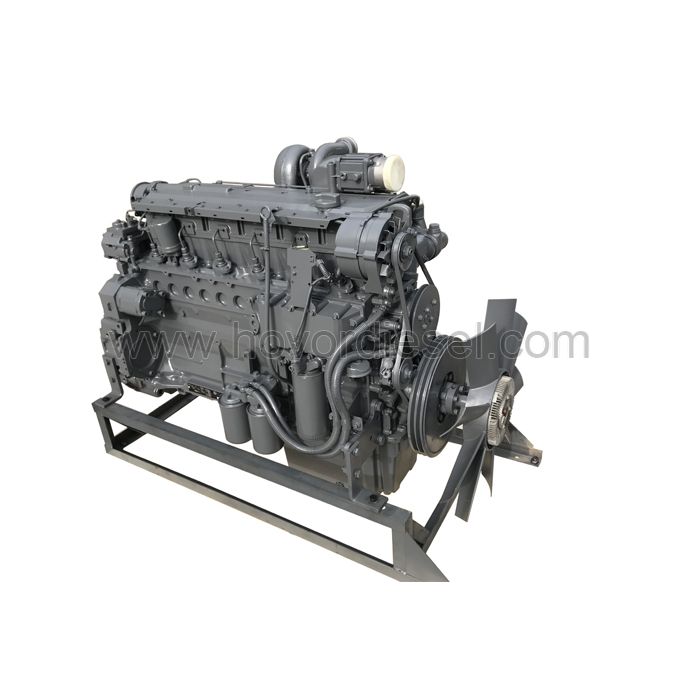

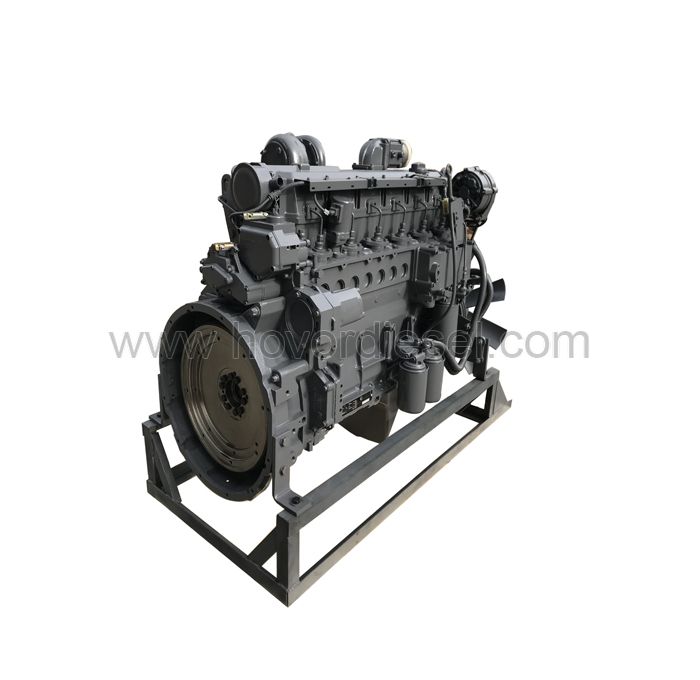

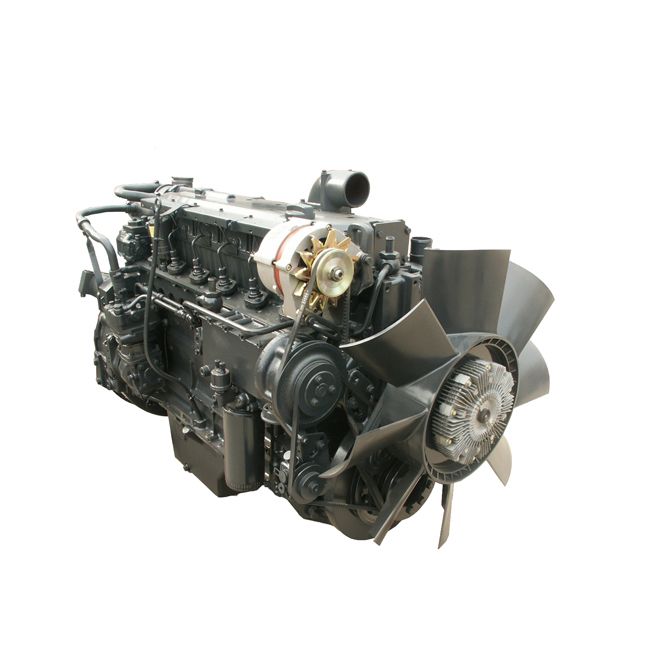

BF6M1013EC Deutz Engine 6 Cylinder Water cooling

Product Performance Parameters

The Deutz BF6M1013EC is a six-cylinder, liquid-cooled diesel engine designed for high performance and efficiency. It features a displacement of approximately 7.14 liters and utilizes advanced turbocharging and intercooling technologies to achieve power outputs typically ranging up to 220 kW (295 hp). This engine model is engineered to comply with stringent emission regulations such as EU Stage IIIA, primarily through an integrated exhaust gas recirculation (EGR) system and an electronically controlled high-pressure fuel injection system, which together optimize combustion for a balance of power, fuel economy, and reduced environmental impact.


Products Overview

型号
Model
缸数
No. of cylinders
缸径/行程
Bore/
stroke(mm)
功率/转速Power/Max.Rpm最大扭矩
Max.Torque
油耗
Fuel
Consumption g/kwh
排量
Displacement (L)
尺寸
Dimension(cm)
重量
Weight(kg)
BF4M1013C4103/13096/2300572/14002044.76  130*100*94cm649kg
BF4M1013EC4103/130118/2300577/14002054.76130*63*94cm650kg
BF4M1013FC4103/130118/2300700/14002044.76130*63*94cm650kg
BF6M1013E6103/130165/2300702/14002087.14156*80*123cm810kg
BF6M1013EC6103/130174/2300854/14002057.14156*84*123cm820kg
BF6M1013FC6103/130200/23001050/14001957.14156*84*123cm820kg



Tags: Deutz Engine, Deutz Diesel Engine , BF6M1013EC, deutz BF6M1013EC, Diesel engine
