Product Application Scenarios

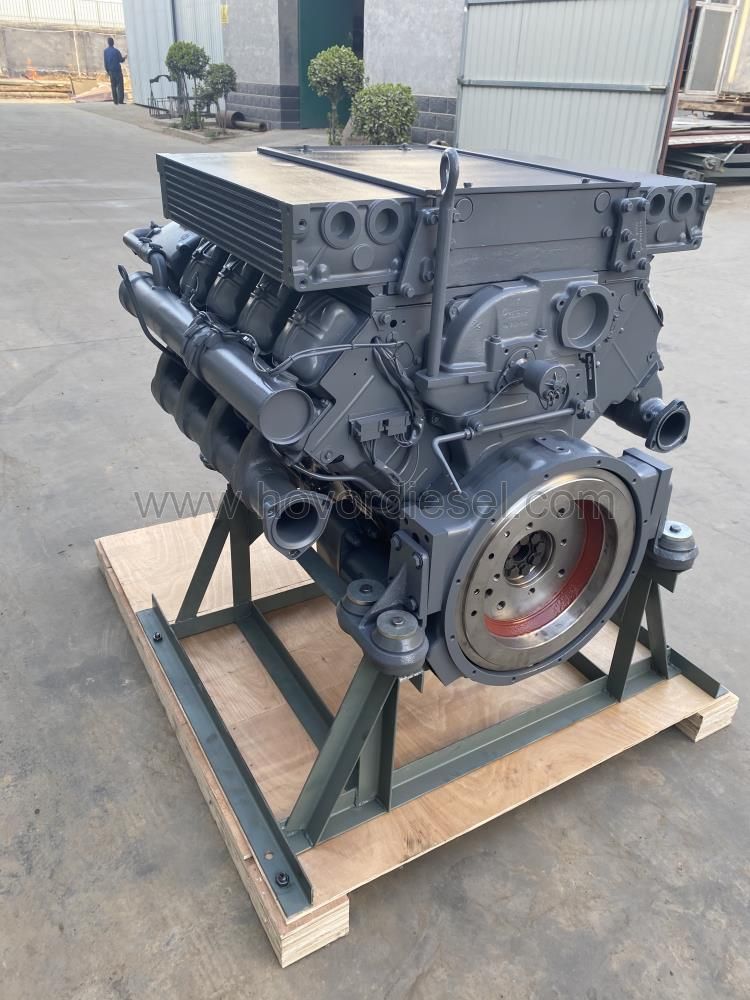

Renowned for its ruggedness and all-climate capability, the deutz F10L413FW engine is widely used in sectors where power reliability is paramount. It is an ideal power source for construction machinery (such as air compressors, generator sets, cranes, and loaders), agricultural machinery (like large tractors and combine harvesters), and specialized vehicles (including mining dump trucks and forest fire trucks). Its air-cooling technology proves particularly advantageous and is utilized to its fullest potential in environments with scarce water resources or harsh conditions, such as deserts, high-altitude mountains, and plateaus, making it the trusted prime mover of choice for numerous equipment manufacturers and operators.
Products Overview
Model | Air-intake way | Bore/stroke (mm) | Displacement (L) | Power (kw) | Rotating Speed (rpm) | Max.Torque /speed (rpm) | Fuel Consumption (g/kwh) | Idle Speed (rpm) | Dimension(cm) | Weight(kg) | ||
F8L413F | naturally intake | 125 ×130 | 12.763 | 103~174 | 1500~2500 | 760/1500 | 214 | 600 | 139*122*133CM | 960kg | ||
F8L413FW | naturally intake | 125 ×130 | 12.763 | 1500~2500 | 760/1500 | 214 | 600 | 139*122*133CM | 960kg | |||
F10L413F | naturally intake | 125 ×130 | 1500~2500 | 600 | 150*122*133cm | 1080kg | ||||||
F10L413FW | naturally intake | 125 ×130 | 1500~2500 | 600 | 150*122*133cm | 1080kg | ||||||
F12L413F | naturally intake | 125 ×130 | 19.144 | 154~261 | 1500~2500 | 1120/1500 | 214 | 600 | 158 ×125 ×133cm | 1180kg | ||
F12L413FW | naturally intake | 125 ×130 | 19.144 | 1500~2500 | 1120/1500 | 214 | 600 | 158 ×125 ×133cm | 1180kg | |||
BF8L413FC | turbo intercooler | 125 ×130 | 12.763 | 213~235 | 2300~2500 | 1102/1800 | 218 | 600 | 126 ×125 ×133cm | 970kg | ||
BF8L513FC | turbo intercooler | 125 ×130 | 12.763 | 206~243 | 2300 | 1170/1500 | 212 | 600 | 115 ×115 ×105cm | 920kg | ||
BF12L513 | turbocharger | 125 ×130 | 19.144 | 206~334 | 1500~2300 | 1650/1500 | 212 | 600 | 138 ×158 ×120cm | 1250kg | ||
BF12L513C | turbo intercooler | 125 ×130 | 19.144 | 230~410 | 1500~2300 | 1800/1500 | 210 | 600 | 138 ×159 ×120cm | 1200kg |
