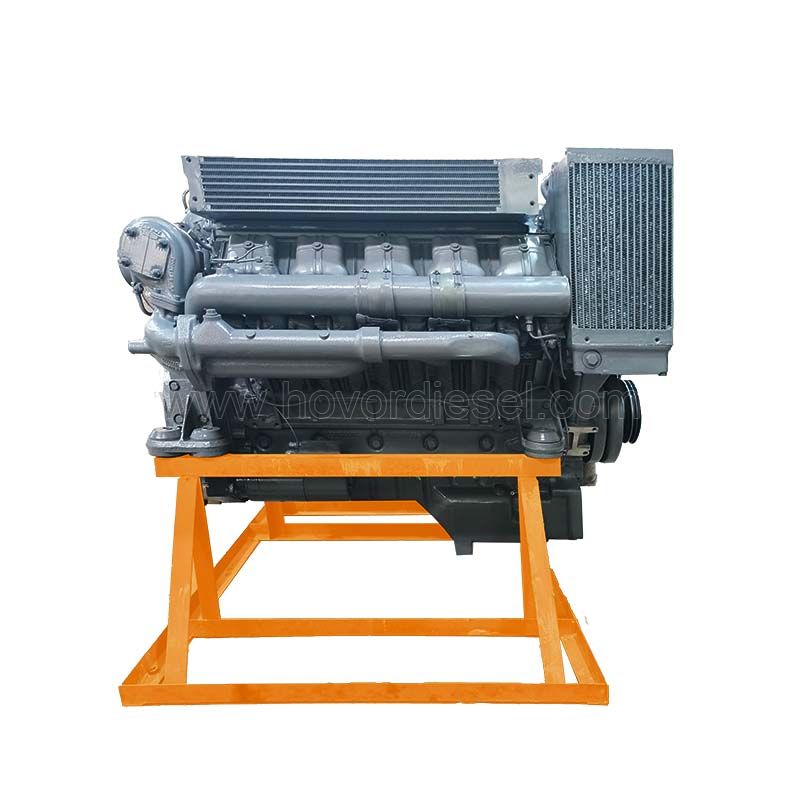

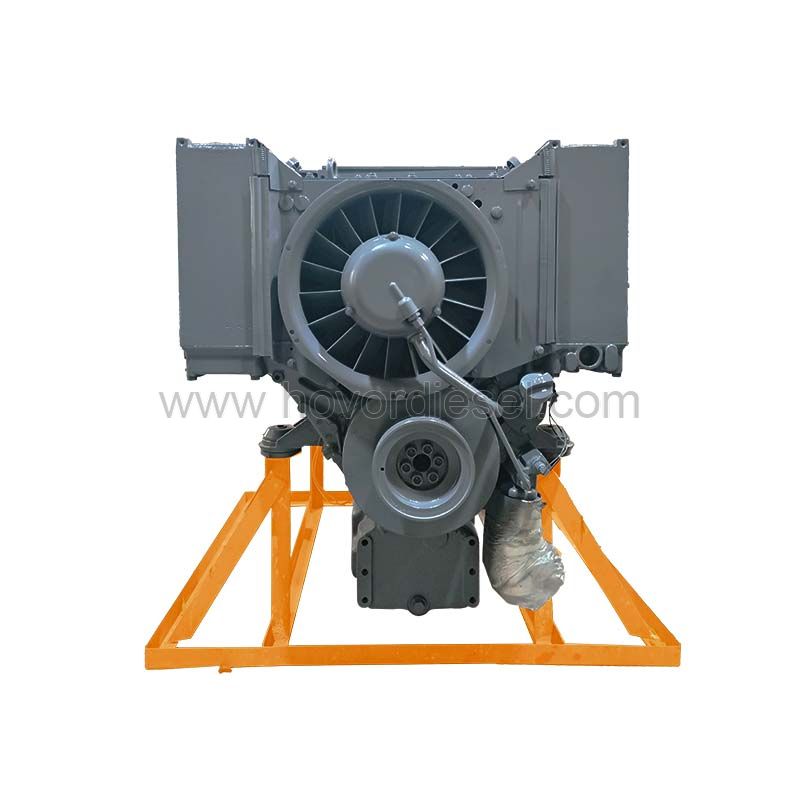

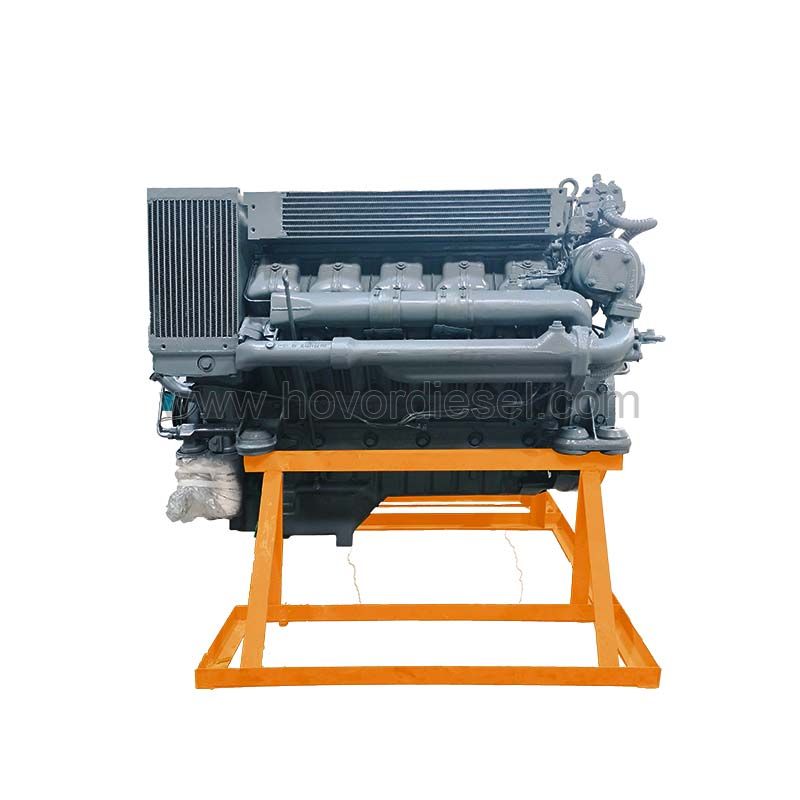

BF10L513 machinery diesel engines air cooled 10 cylinder 4 stroke for deutz engine assembly

When your equipment operates far from coolant supplies or in freezing conditions where antifreeze becomes a logistics burden, the DEUTZ BF10L513 offers a field-proven air-cooled solution — a 10-cylinder V engine without radiators, water pumps, or hoses. As a China-based exporter serving mining and construction fleets across Central Asia and Africa, we maintain traceable inventory with factory dyno sheets. Unlike later electronic engines, this 513 series uses a fully mechanical governor and individual cylinder heads, enabling partial overhauls without removing the engine from the frame. The BF10L513’s axial blower delivers uniform cooling across all cylinders even at idle, reducing thermal stress during extended low-load operation. We provide third-party inspection options (SGS or Bureau Veritas) and can supply common wear parts (injectors, blower belts, valve guides) bundled at wholesale cost. Request a video of the engine running from cold start to full load before placing your order.

Products Overview

BF10L513


A

B

C

mm

1472

1138

1067

Cyl No. and Arrangement

10-Cyl V-line

Bore/Stroke(mm)

125/130

Air-intake way

Turbo charged

Combustion system

Direct injection

Cooling way

Air-cooled

Displacement(L)

15.953

Max.Torque(N.m)

1460

Power(kw)

172~278

Power(hp)

231~372

Speed(rpm)

1500~2300

Net Weight(kg)

1160

Weight(kg)

1200

Dimension(L*W*H/cm)

160*130*125

HS code:

8408909390

Application:

construction machinery / generator set / mining equiment / water pump / truck

Certification

ISO9001:2000

Warranty

12 Months / 1000 Hours

Quality Control

The engines have been rigorously tested

Payment

T/T, Western Union.

Service

Guidance on product issues through online and video support

The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
