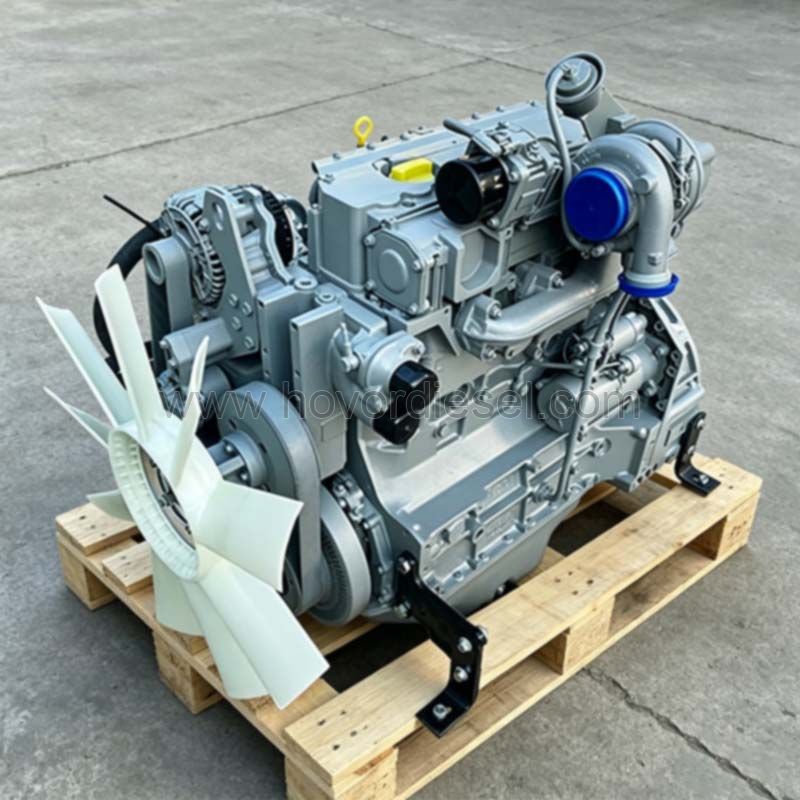

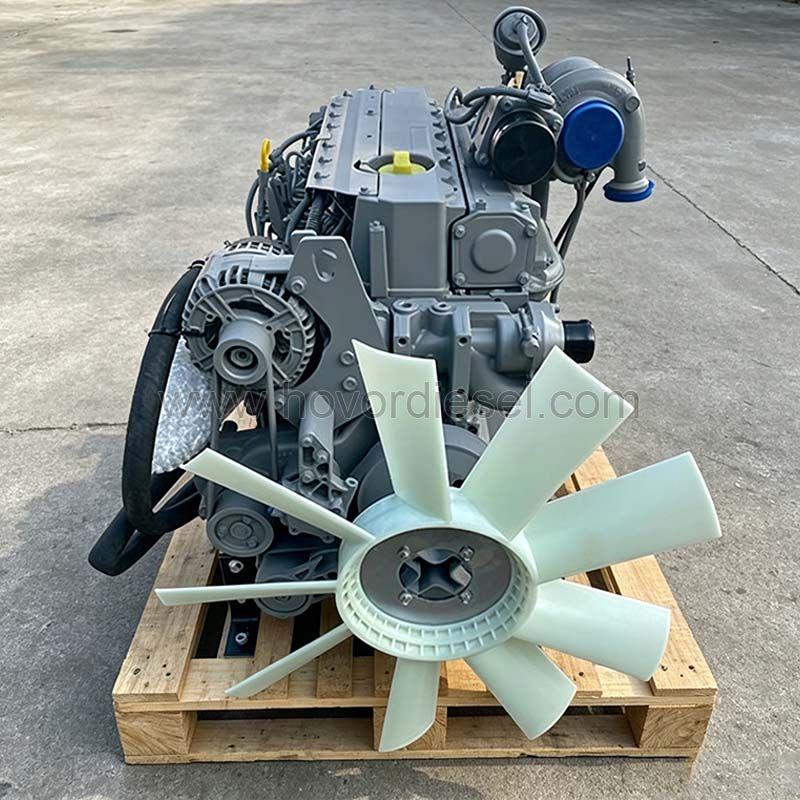

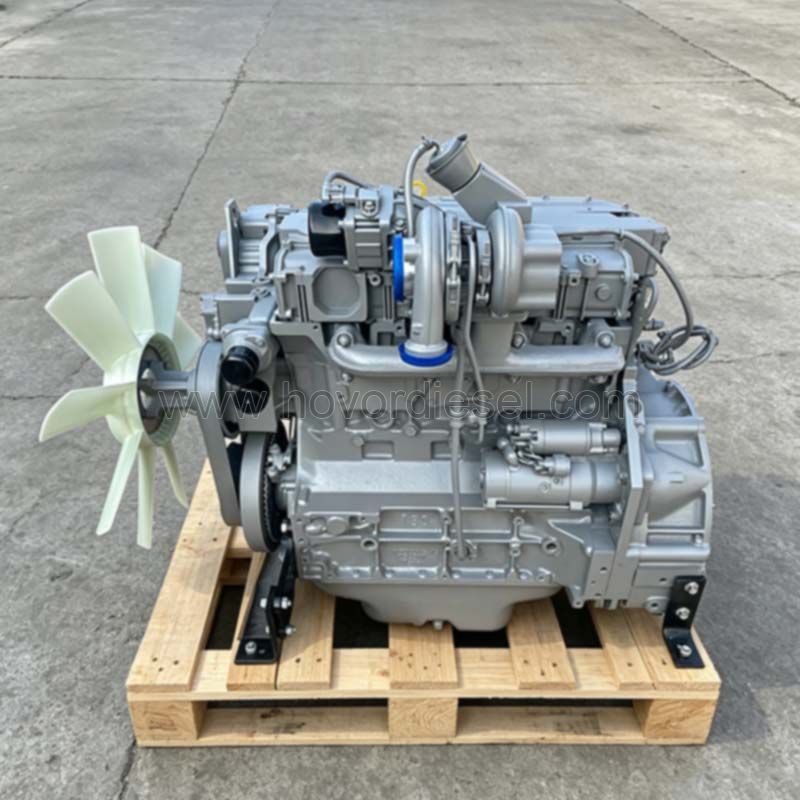

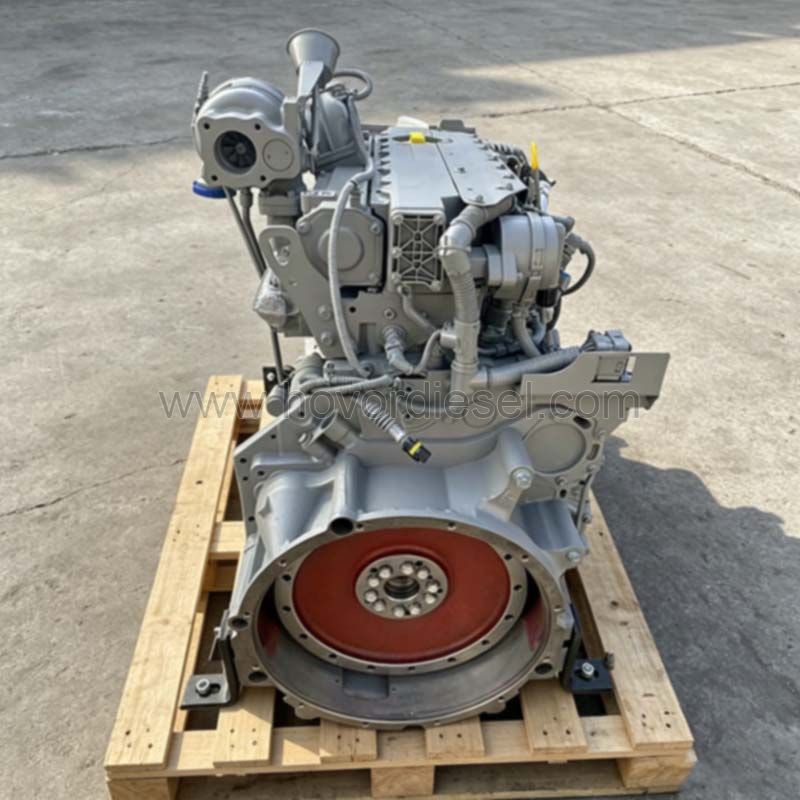

The DEUTZ TCD 2013 L4 2V is a water-cooled, four-cylinder inline diesel engine combining turbocharging with charge air cooling, and it delivers 104-129 kW (140-173 hp) with up to 565 Nm of torque from 4.76 litres of displacement. As a China-based exporter and stocking supplier, we ship complete TCD 2013 L4 2V engines and matched assemblies to equipment owners, rebuilders and fleet operators worldwide. Typical installations include hydraulic excavators, wheel loaders, forklifts, crushers, agricultural machinery and 90 kW-class generator sets running at 1500/1800 rpm. Each engine carries the DEUTZ Common Rail (DCR) injection system with EMR 4 electronic control, meets EU Stage IIIA and US EPA Tier 3 emission standards, and leaves our warehouse with test documentation and export-grade packing. Share your machine model and engine serial number, and our engineering team will confirm fitment, stock status and landed cost within one working day.
Products Overview


TCD2013 L04 2V | A | B | C | |||
mm | 857 | 638 | 870 | |||
Cyl No. and Arrangement | 4-Cyl in-line | |||||
Bore/Stroke(mm) | 108/130 | |||||
Air-intake way | Turbo charged cooling | |||||
Combustion system | Direct injection | |||||
Cooling way | Water-cooled | |||||
Displacement(L) | 4.8 | |||||
Max.Torque(N.m) | 670 | |||||
Power(kw) | 90 | 103 | 129 | |||
Power(hp) | 121 | 138 | 173 | |||
Speed(rpm) | 1500 | 1800 | 2300 | |||
Net Weight(kg) | 500 | |||||
Weight(kg) | 600 | |||||
Dimension(L*W*H/cm) | 115*90*125 | |||||
HS code: | 8408909290 | |||||
Application: | construction machinery / generator set / mining equiment / water pump / truck | |||||
Certification | ISO9001:2000 | |||||
Warranty | 12 Months / 1000 Hours | |||||
Quality Control | The engines have been rigorously tested | |||||
Payment | T/T, Western Union. | |||||
Service | Guidance on product issues through online and video support | |||||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | ||||||
