Product Application Scenarios
The DEUTZ F4L912 is widely employed across multiple industries requiring compact and reliable power sources. It serves as the prime mover for construction equipment such as small excavators, compressors, and welding sets; agricultural machinery including tractors, harvesters, and irrigation systems; and industrial applications like generator sets (up to 60 kVA), pump systems, and material handling equipment. Particularly valued in remote operations and extreme climates - from desert mining operations to arctic conditions - its air-cooled design provides unmatched reliability where conventional liquid-cooled engines would be compromised.

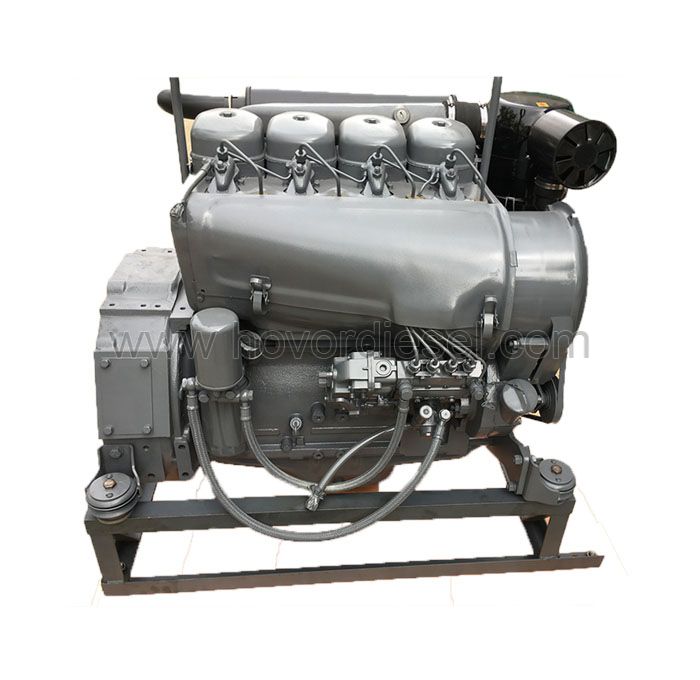

Products Overview
Technical Parameter
Model | F4L912 | |||
No. of Cly | 4 | |||
Bore/stroke(mm) | 100/120 | |||
Displacement(L) | 3.77 | |||
Air-intake system | Naturally aspirated | |||
Power/Rev(kw/rpm) | 32/1500 | 38/1800 | 46/2300 | 51/2500 |
Max torque(N.m) | 230 | |||
Compression ratio | 17:1 | |||
Direction of rotation(facing cooling blower) | Clockwise | |||
Dimension(cm) | 107x82x102cm | |||
Weight(kg) | 425 |

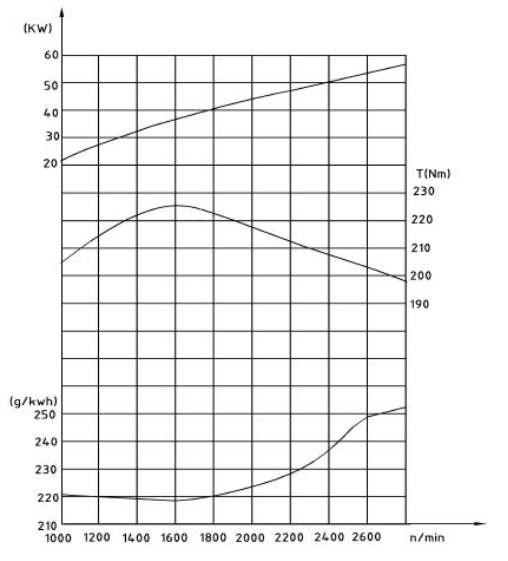

Output power curve

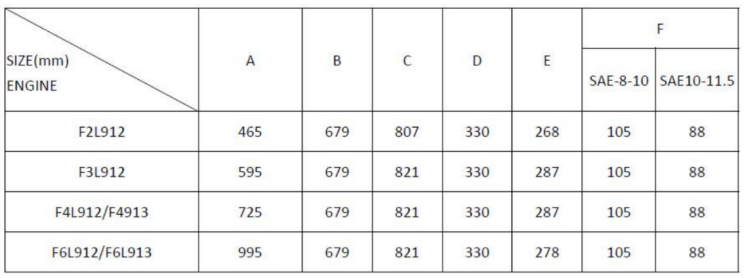

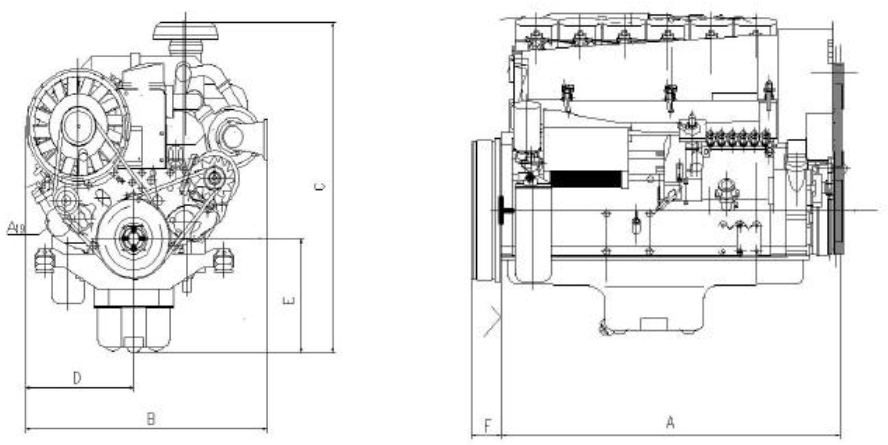

Section plane of engine
Specifications
