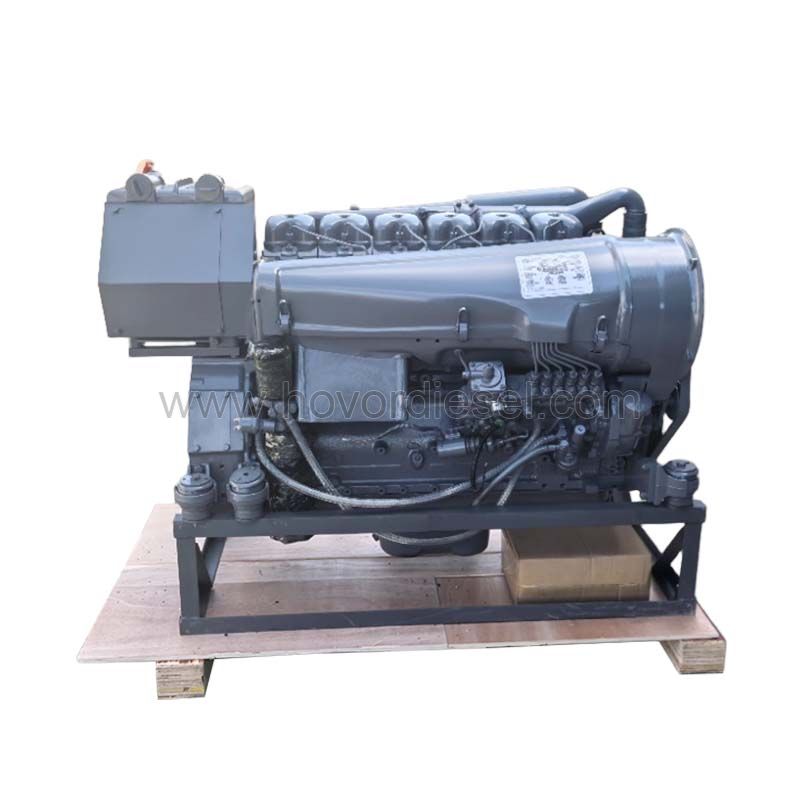

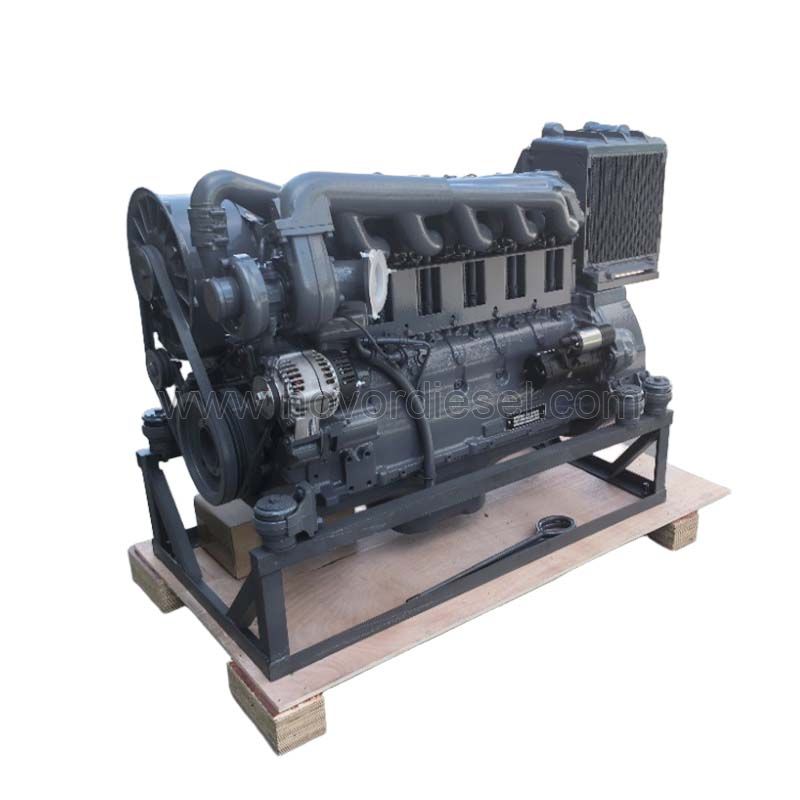

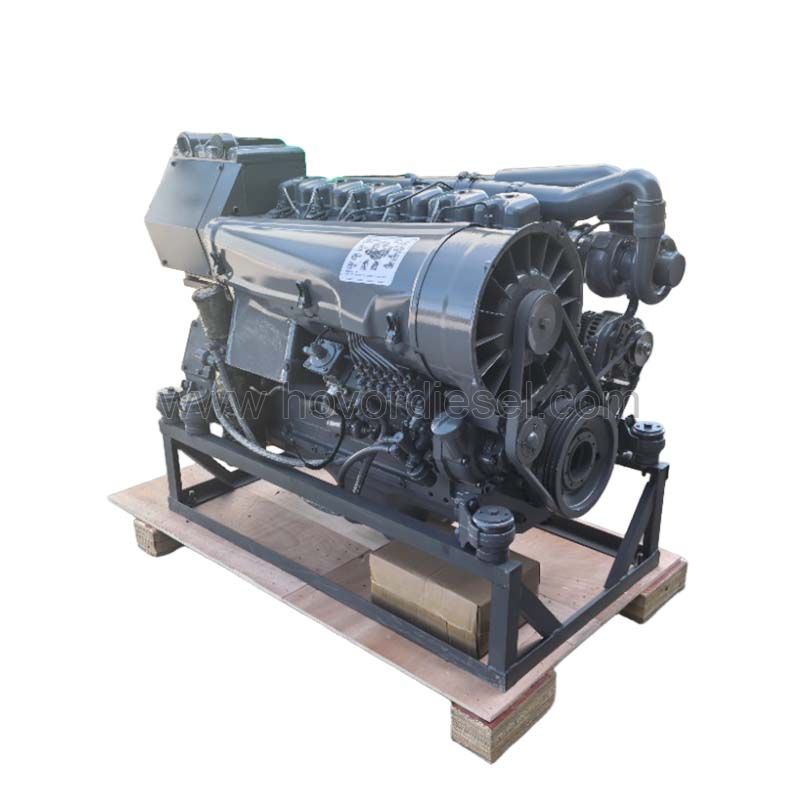

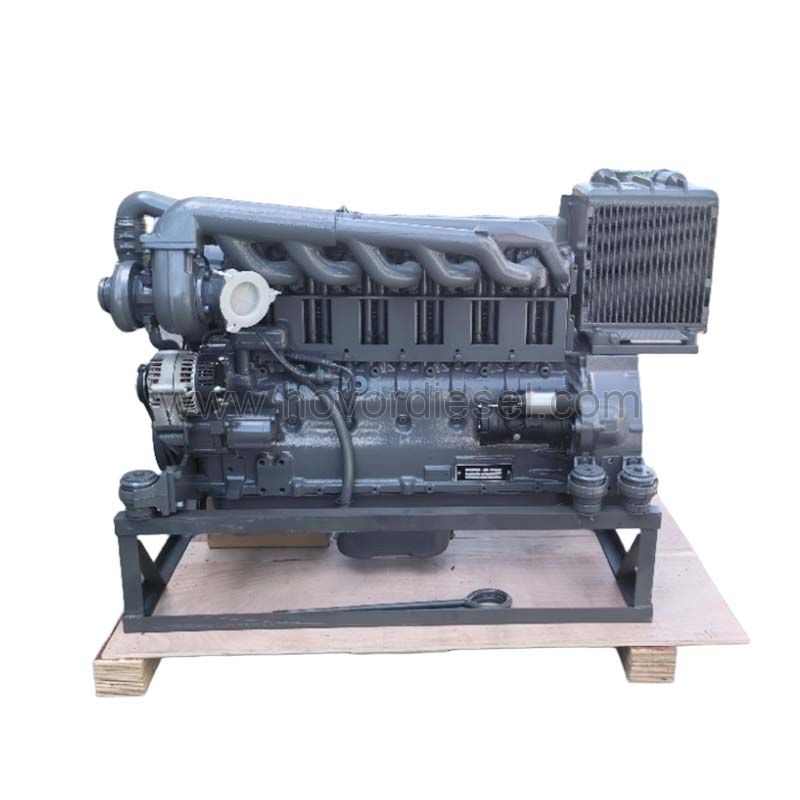

The DEUTZ BF6L914 is a 6-cylinder inline air-cooled turbo diesel engine with 5.7L displacement. Rated power 75–105 kW at 1800–2300 rpm. Its axial cooling blower eliminates radiators, water pumps, and hoses — removing all coolant-related failure points. The gear-driven injection pump and mechanical governor allow field repairs without diagnostic software. Operating temperature range: -20°C to +50°C without derating. Each unit includes spin-on oil/fuel filters, 55A alternator, and electric stop solenoid. Compatible with wheel loaders, rollers, and industrial sweepers originally fitted with Deutz 413/513/914 series. Supplied as bare long block or full dressed engine with flywheel housing. Optional low-oil pressure cutout switch and tropical fan available.
Products Overview
BF6L914 | A | B | C | ||||
mm | 1108 | 776 | 869 | ||||
Cyl No. and Arrangement | 6-Cyl in-line | ||||||
Bore/Stroke(mm) | 102/132 | ||||||
Air-intake way | Turbo charged | ||||||
Combustion system | Direct injection | ||||||
Cooling way | Air-cooled | ||||||
Displacement(L) | 6.472 | ||||||
Max.Torque(N.m) | 550 | ||||||
Power(kw) | 89 | 106 | 112 | 115 | |||
Power(hp) | 119 | 142 | 150 | 154 | |||
Speed(rpm) | 1500 | 1800 | 2300 | 2500 | |||
Net Weight(kg) | 485 | ||||||
Weight(kg) | 515 | ||||||
Dimension(L*W*H/cm) | 141*85*115 | ||||||
HS code: | 8408909290 | ||||||
Application: | construction machinery / generator set / mining equiment / water pump / truck | ||||||
Certification | ISO9001:2000 | ||||||
Warranty | 12 Months / 1000 Hours | ||||||
Quality Control | The engines have been rigorously tested | ||||||
Payment | T/T, Western Union. | ||||||
Service | Guidance on product issues through online and video support | ||||||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |||||||
