Product Usage Scenarios

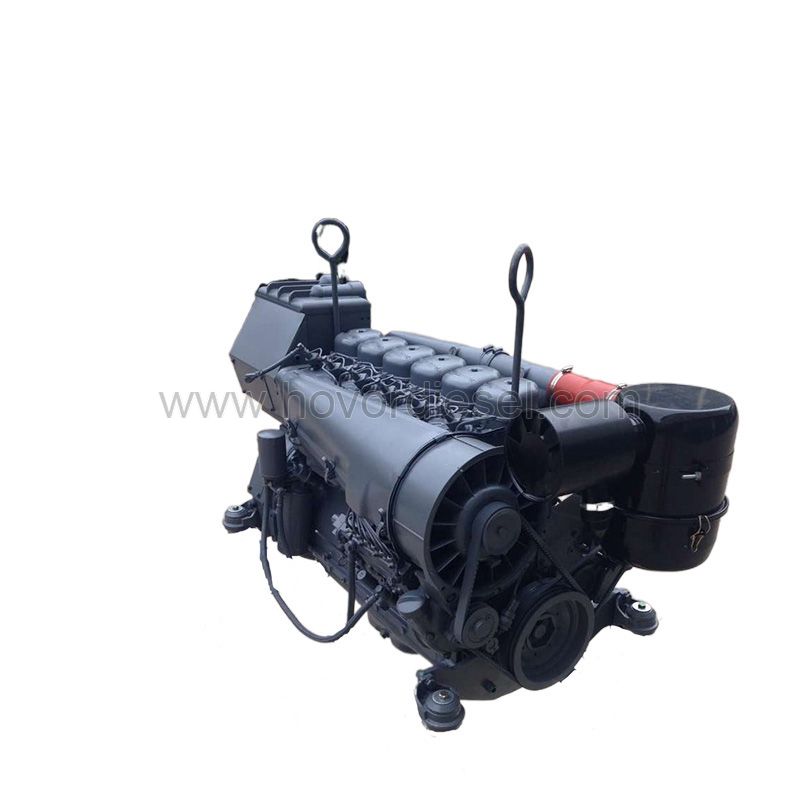

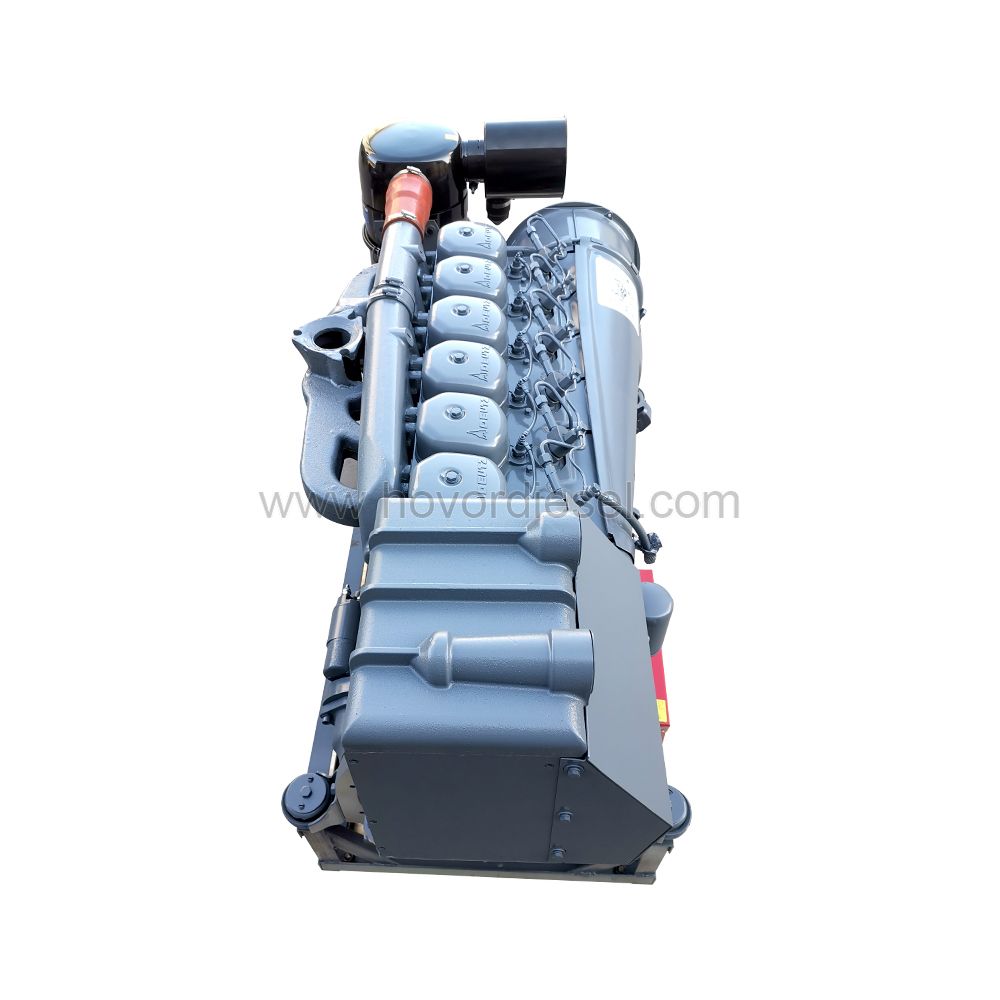

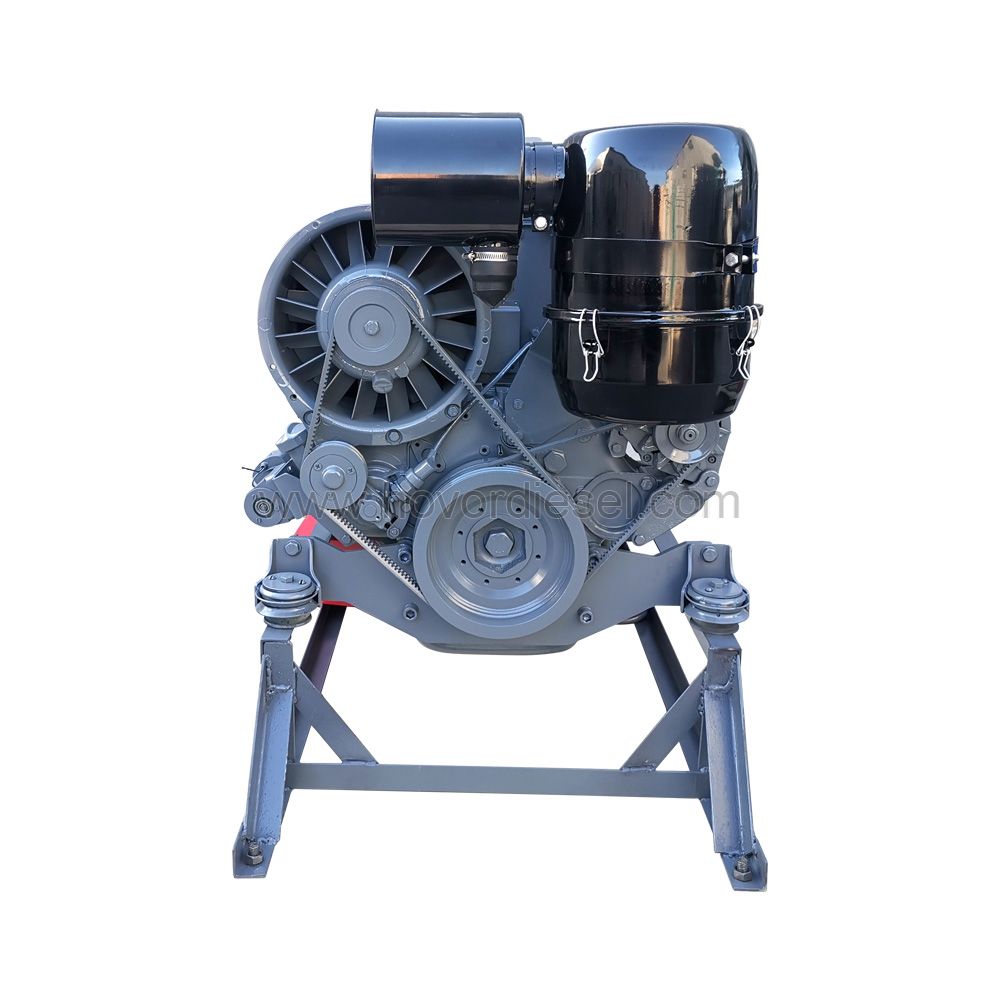

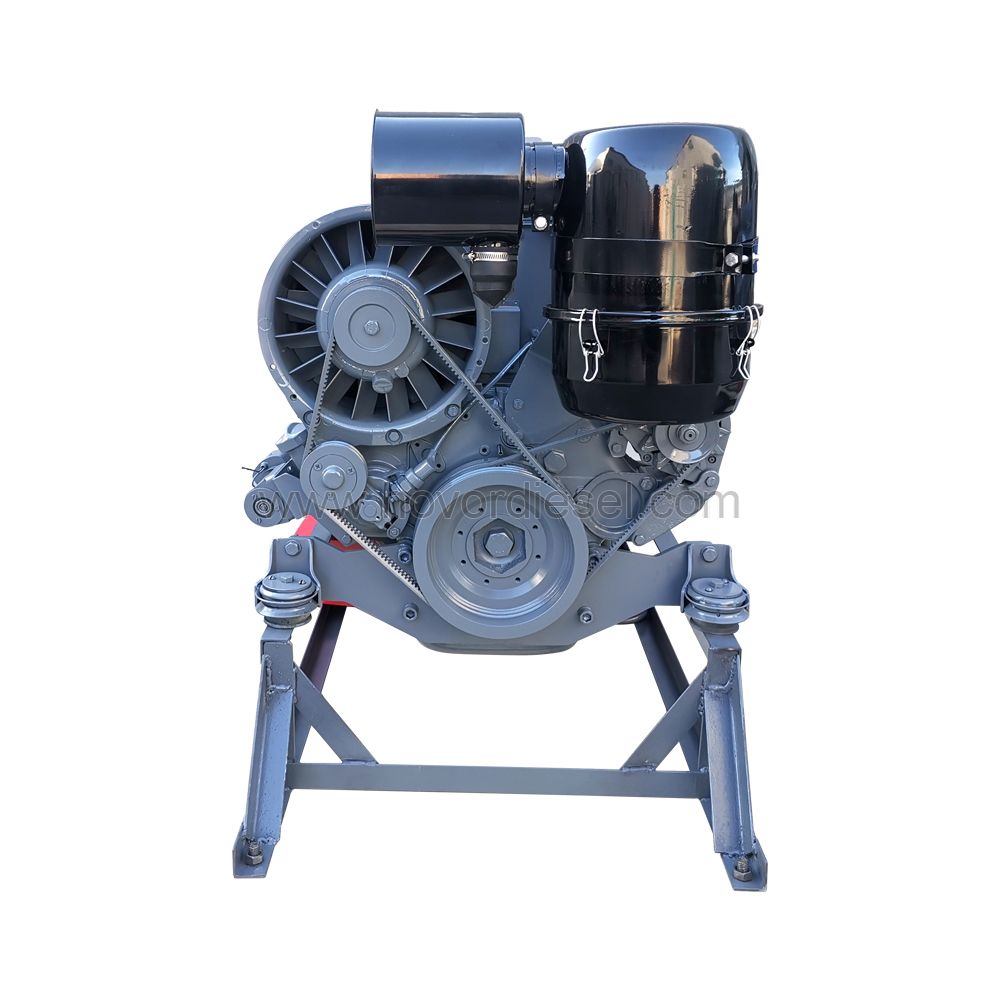

The Deutz F6L912W is specifically designed for heavy-duty industrial and mobile equipment operating in extreme environments. It is commonly used in mining machinery, large construction equipment such as bulldozers and heavy compressors, agricultural harvesters, and forestry equipment. The engine's robust air-cooled design makes it ideal for applications in remote locations, desert operations, and cold climates where conventional liquid-cooled engines might fail. It also serves as a reliable power source for stationary applications including large generators, industrial pumps, and drilling equipment where continuous, dependable power is critical.
Products Overview
Technical Parameter
Model | F6L912W | |||
No. of Cly | 6 | |||
Bore/stroke(mm) | 100/120 | |||
Displacement(L) | 5.66 | |||
Air-intake system | Naturally aspirated | |||
Power/Rev(kw/rpm) | 60/2150 | 63/2300 | 66/2500 | |
Max torque(N.m) | 170 | |||
Compression ratio | 17:1 | |||
Direction of rotation(facing cooling blower) | Clockwise | |||
Dimension(cm) | 160*8*106cm | |||
Weight(kg) | 610 |
Output power curve
Section plane of engine
