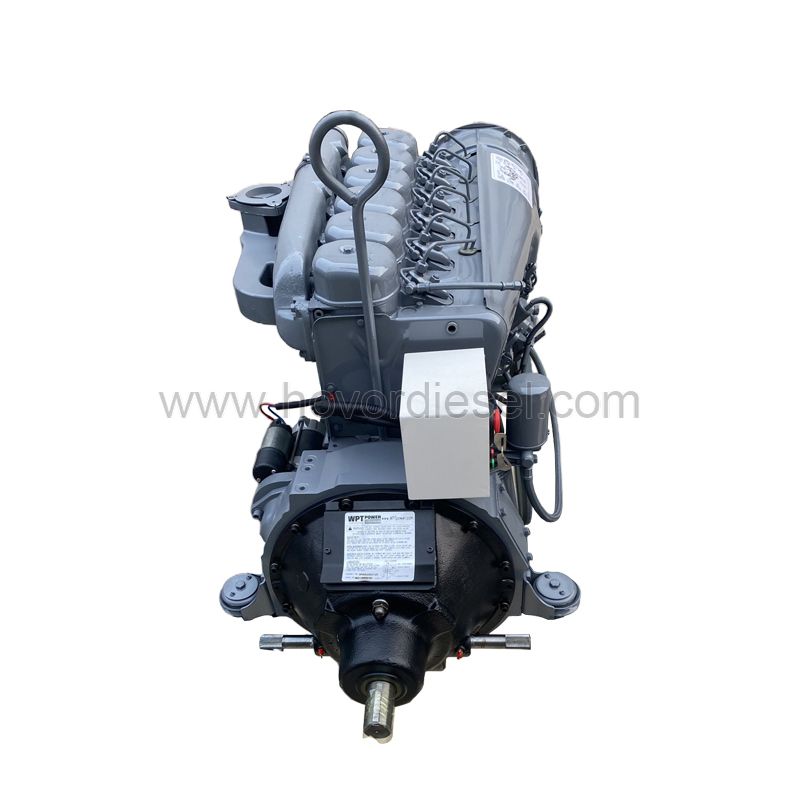

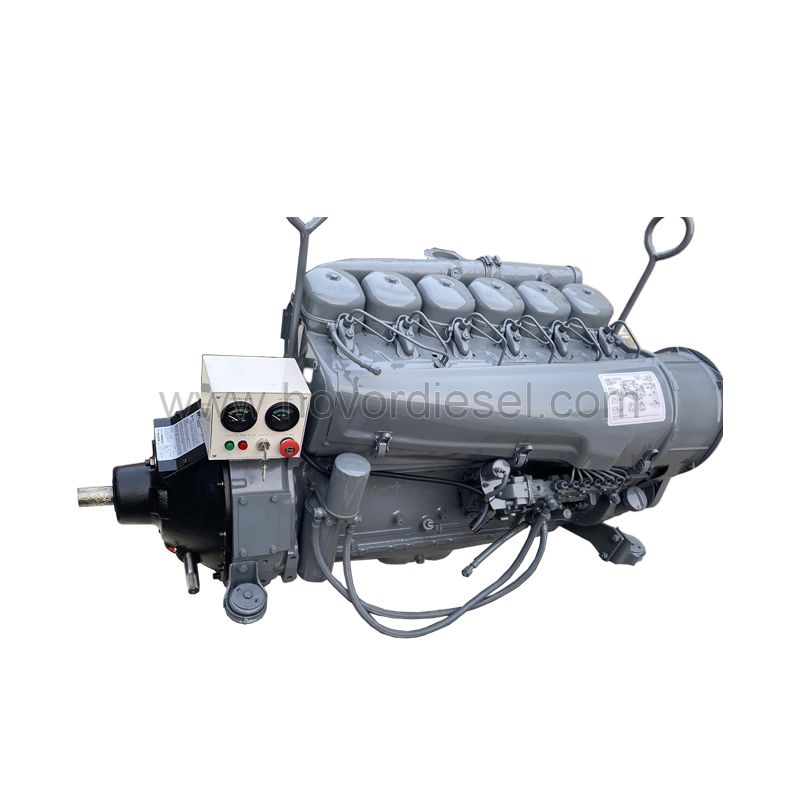

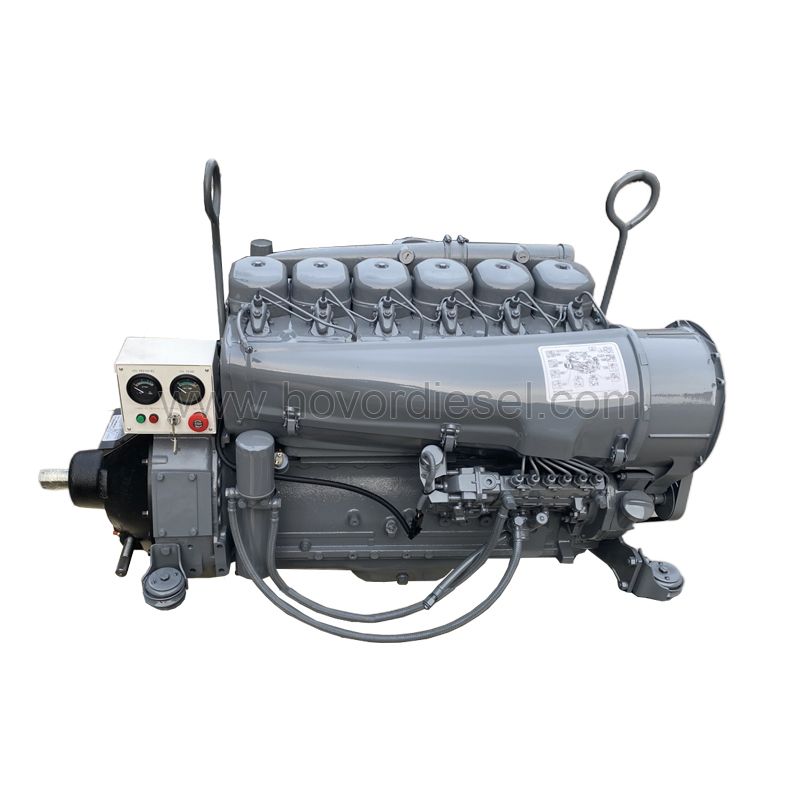

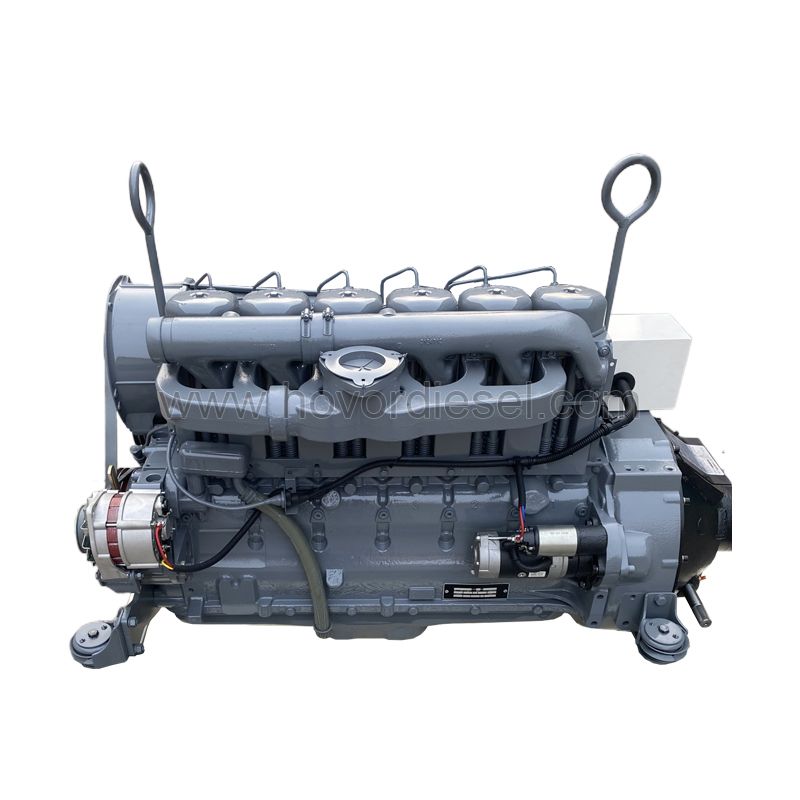

Deutz F6L912 Diesel Engine 80HP Air Cooled 6 Cylinder Motor with Clutch

Product Usage Scenarios
The DEUTZ F6L912 is widely used in heavy-duty industrial and mobile equipment, including construction machinery such as excavators, loaders, and compressors. It powers agricultural applications including large tractors, combine harvesters, and irrigation systems. The engine is also commonly employed in material handling equipment, forestry machinery, and stationary applications such as generators and industrial pumps. Its air-cooled design makes it particularly valuable for operations in remote areas, extreme climates, and challenging environments where reliability, simplicity, and minimal maintenance are critical requirements.


Products Overview

Technical Parameter

ModelF6L912
No. of Cly6
Bore/stroke(mm)100/120
Displacement(L)5.6
Air-intake systemNaturally aspirated
Power/Rev(kw/rpm)48/150060/180074/230078/2500
Max torque(N.m)170
Compression ratio17:1
Direction of rotation(facing cooling blower)Clockwise
Dimension(cm)128*83*106cm
Weight(kg)550


Output power curve

F4L912 Air Cooled Diesel Engine


Section plane of engine

F4L912 Air Cooled Diesel Engine



Tags: Deutz F6L912 , Air Cooled 6 Cyliner, Diesel Engine 80HP , Motor with Clutch , F6L912
