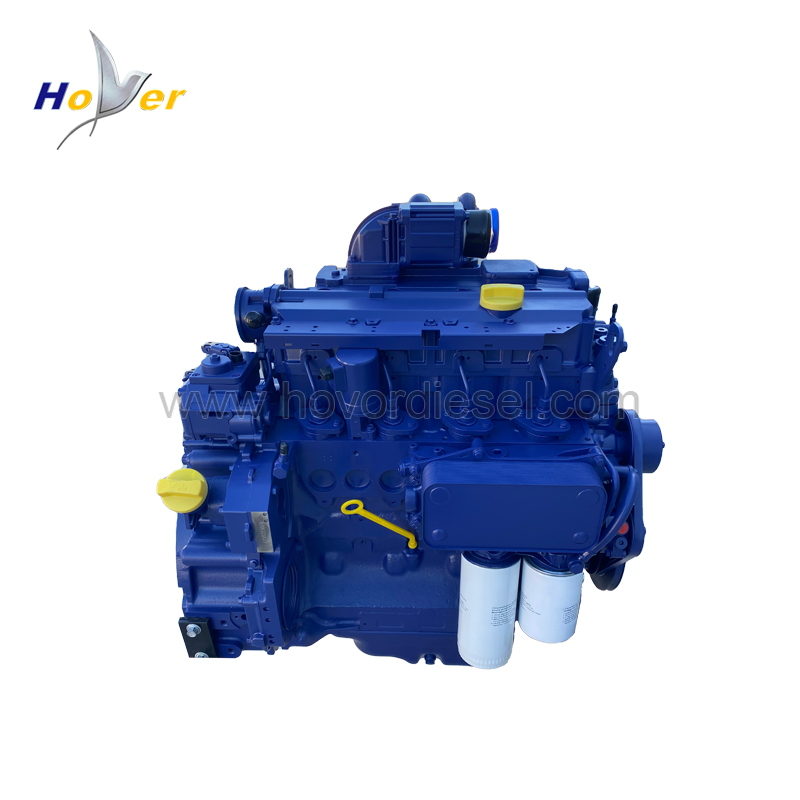

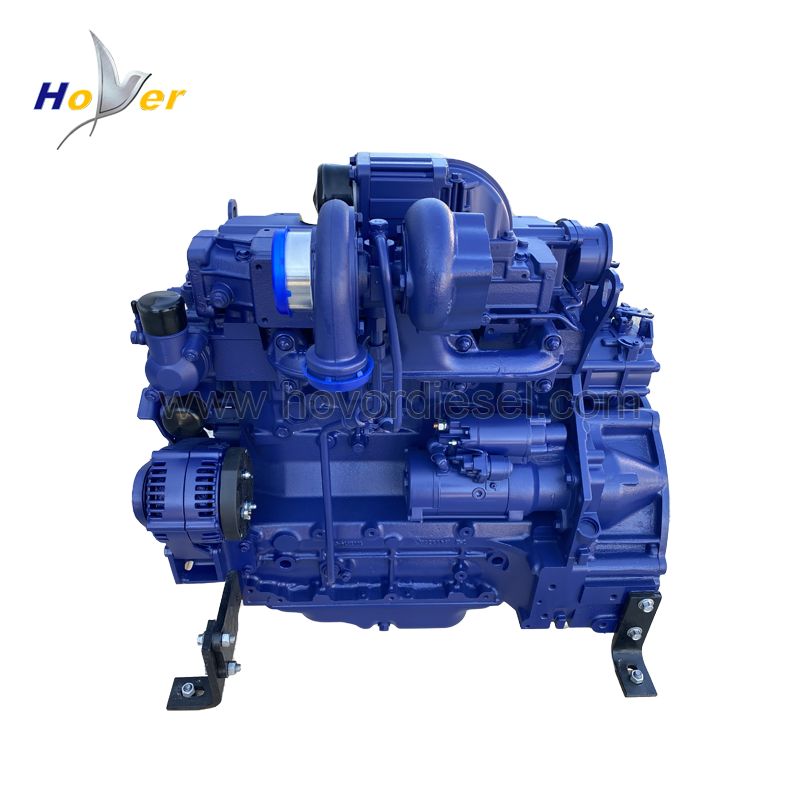

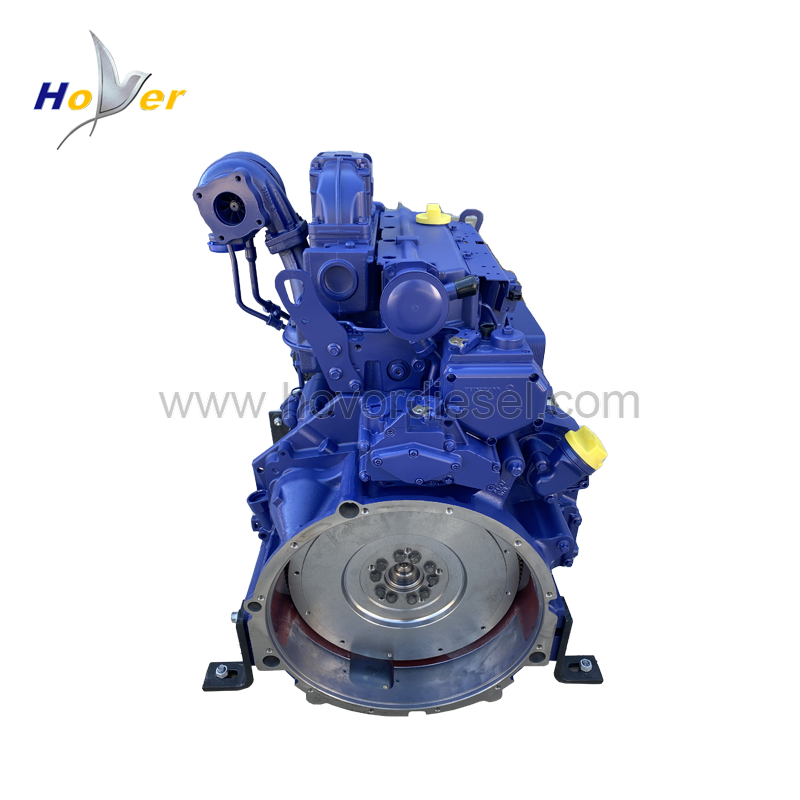

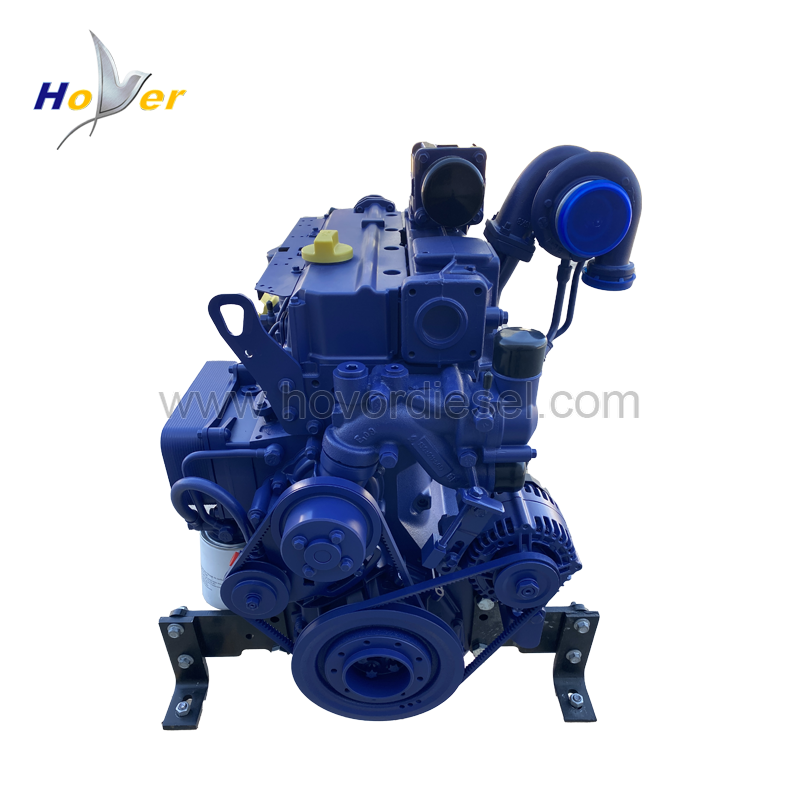

The BF4M2012C shares its 4.04-liter block with the BF4M2012, but the “C” designation is where the sourcing risk concentrates: these engines leave the line with different governor types, PTO drive arrangements, and accessory layouts depending on the original machine builder’s specification. We supply this engine from China primarily for tunnel scalers, underground loaders, and mining support equipment where the installation envelope is tight and a near-match is not good enough. Before quoting, we ask for the existing engine’s data plate photo and the machine model it sits in—not because the block differs, but because the bolt-on configuration often does. That single step prevents the most common return scenario in this particular model.
Products Overview
BF4M2012C | A | B | C | |
mm | 847 | 643 | 835 | |
Cyl No. and Arrangement | 4-Cyl in-line | |||
Bore/Stroke(mm) | 101/126 | |||
Air-intake way | Turbo charged cooling | |||
Combustion system | Direct injection | |||
Cooling way | Water-cooled | |||
Displacement(L) | 4.03 | |||
Max.Torque(N.m) | 493 | |||
Power(kw) | 103 | |||
Power(hp) | 138 | |||
Speed(rpm) | 2500 | |||
Net Weight(kg) | 391 | |||
Weight(kg) | 450 | |||
Dimension(L*W*H/cm) | 95*80*100 | |||
HS code: | 8408909290 | |||
Application: | construction machinery / generator set / mining equiment / water pump / truck | |||
Certification | ISO9001:2000 | |||
Warranty | 12 Months / 1000 Hours | |||
Quality Control | The engines have been rigorously tested | |||
Payment | T/T, Western Union. | |||
Service | Guidance on product issues through online and video support | |||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | ||||
