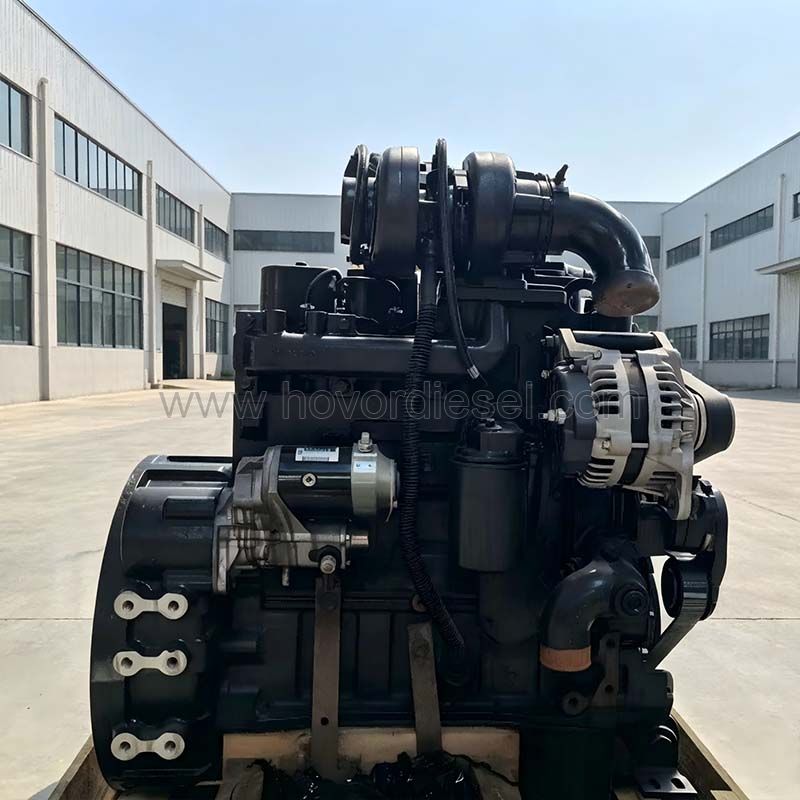

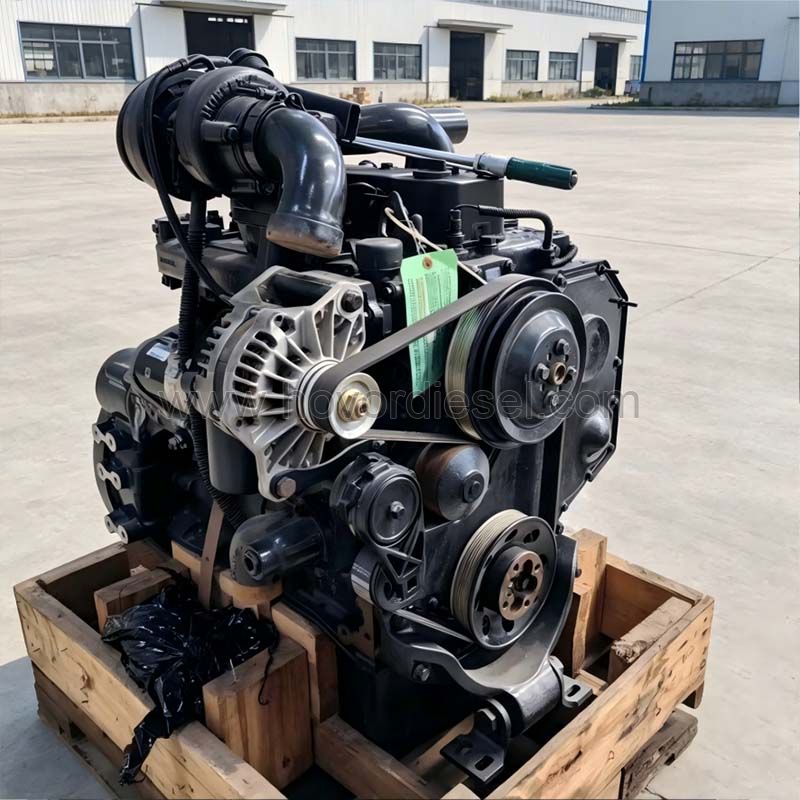

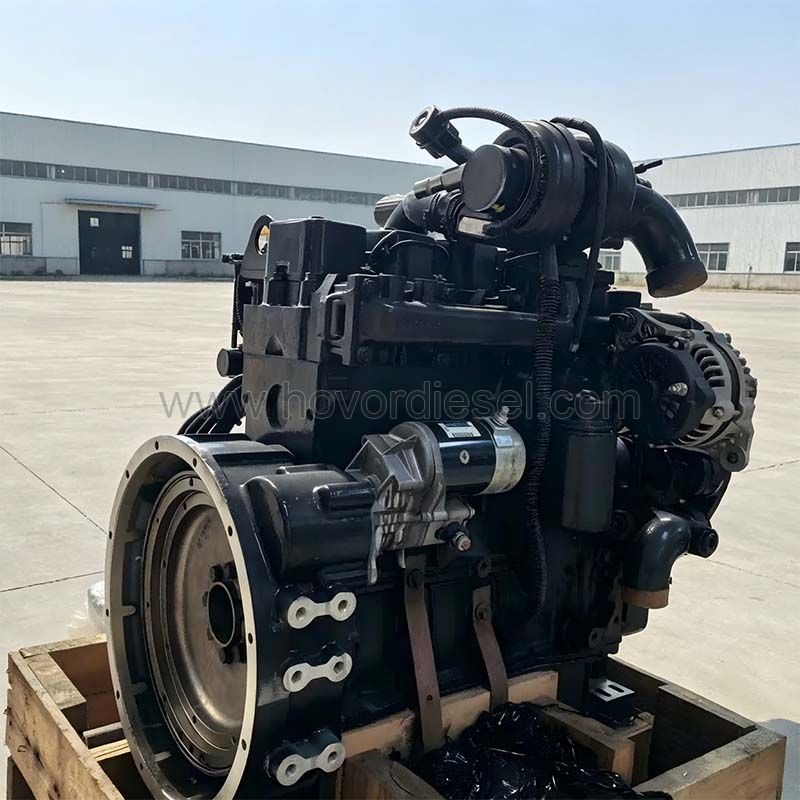

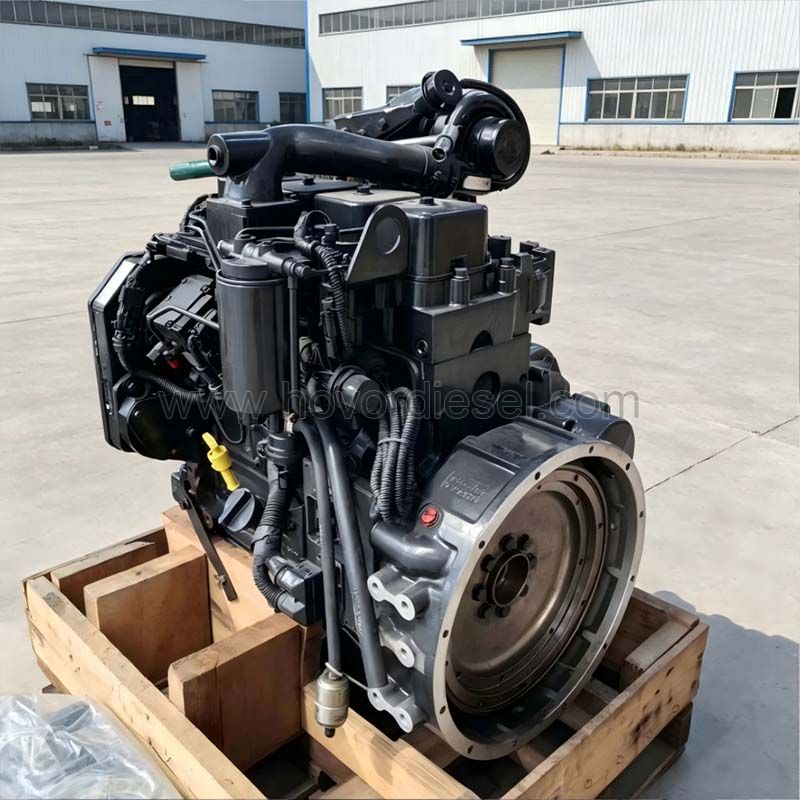

As a specialized China-based exporter and factory supplier, we provide the Cummins QSB4.5 diesel engine—a Tier 3 / Stage IIIA certified 4.5L inline 4-cylinder power unit that sets a new benchmark for construction, generator set, and agricultural applications . Leveraging a Bosch high-pressure common rail fuel system that delivers up to 1600 bar injection pressure, this engine offers improved fuel efficiency and quieter operation compared to its predecessors, with a wide horsepower range from 110 to 170 hp (82-127 kW) and peak torque reaching 624 N·m . By sourcing directly from our facility, we eliminate intermediary costs and provide fully dyno-tested complete engines with ECUs, wiring harnesses, and EGR coolers, backed by a 12-month warranty. Unlike Tier 4 versions requiring complex aftertreatment, our QSB4.5 Tier 3 variant uses in-cylinder combustion technology only—no DPF, no SCR—which translates to lower upfront cost, simpler maintenance, and no regeneration cycles for equipment operators worldwide .
Products Overview
QSB4.5-C100 | QSB4.5-C140 | QSB4.5-C170 | |
Cyl No. and Arrangement | 4-Cyl in-line | ||
Bore/Stroke(mm) | 110/118 | ||
Air-intake way | Turbo charged cooling | ||
Combustion system | Direct injection | ||
Cooling way | Water-cooled | ||
Displacement(L) | 4.5 | ||
Max.Torque(N.m) | 450 | 560 | 680 |
Power(kw) | 82 | 104 | 127 |
Power(hp) | 110 | 140 | 170 |
Speed(rpm) | 2000 | ||
Net Weight(kg) | 380 | ||
Weight(kg) | 430 | ||
Dimension(L*W*H/cm) | 85*65*90 | ||
Application: | construction machinery / generator set / mining equiment / water pump / truck | ||
Certification | ISO9001:2000 | ||
Warranty | 12 Months / 1000 Hours | ||
Quality Control | The engines have been rigorously tested | ||
Payment | T/T, Western Union. | ||
Service | Guidance on product issues through online and video support | ||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |||
