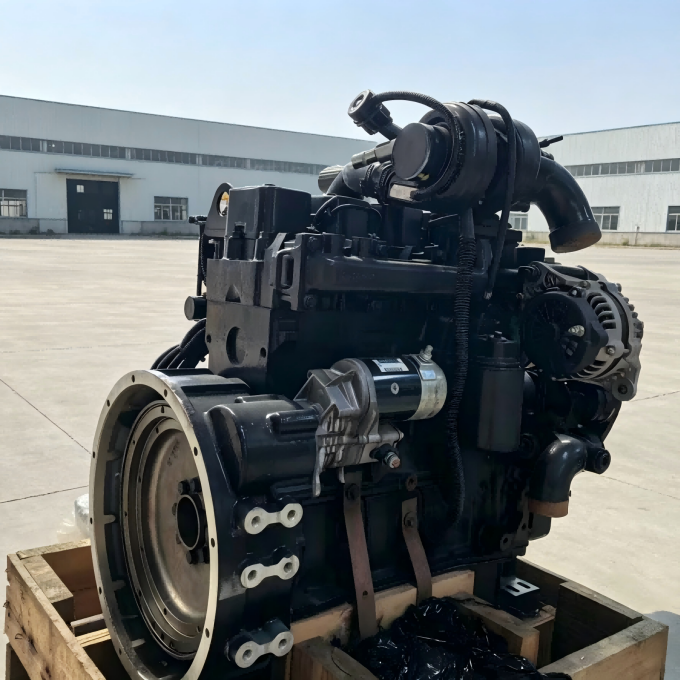

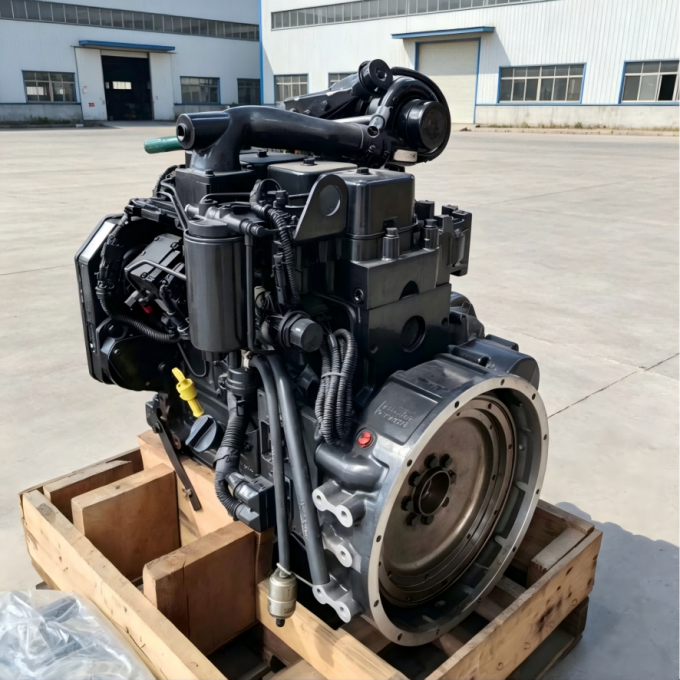

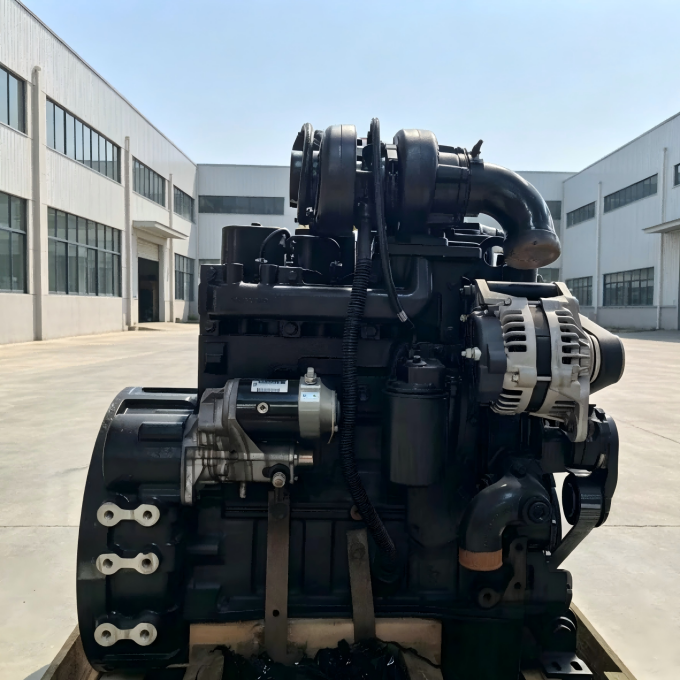

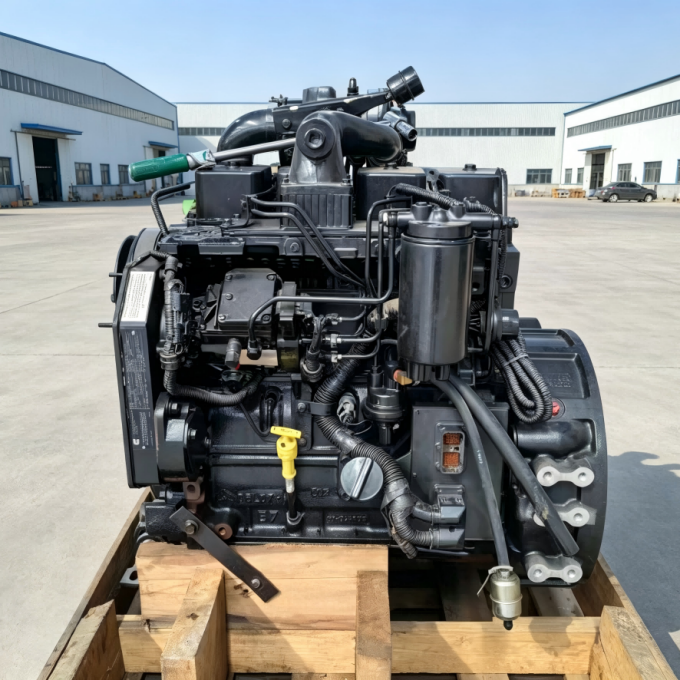

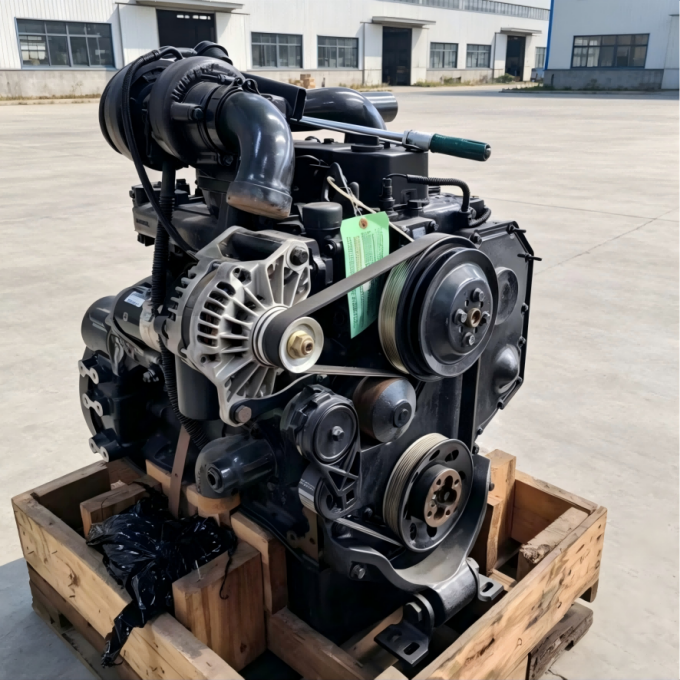

We offer the Cummins QSB4.5 – a 4.5L inline 4 common rail diesel engine delivering 100-160kW and 750N·m torque with Tier 3 / Stage IIIA certification. Unlike the Tier 4 B4.5 with DPF, this QSB version uses cooled EGR only – no DPF, no SCR – which means lower upfront cost, simpler maintenance, and no regen cycles for loaders, forklifts, compressors, and gensets in regions with lower emission requirements. As a China exporter, we supply complete engines, ECUs, full harnesses, and EGR coolers – all dyno-tested with data logs. We can also depopulate the ECM to remove speed or torque limits for genset or stationary applications. Send your equipment model, current engine serial number, and emission requirement for a direct replacement quote.
Products Overview
QSB4.5-C100 | QSB4.5-C140 | QSB4.5-C170 | |
Cyl No. and Arrangement | 4-Cyl in-line | ||
Bore/Stroke(mm) | 110/118 | ||
Air-intake way | Turbo charged cooling | ||
Combustion system | Direct injection | ||
Cooling way | Water-cooled | ||
Displacement(L) | 4.5 | ||
Max.Torque(N.m) | 450 | 560 | 680 |
Power(kw) | 82 | 104 | 127 |
Power(hp) | 110 | 140 | 170 |
Speed(rpm) | 2000 | ||
Net Weight(kg) | 380 | ||
Weight(kg) | 430 | ||
Dimension(L*W*H/cm) | 85*65*90 | ||
Application: | construction machinery / generator set / mining equiment / water pump / truck | ||
Certification | ISO9001:2000 | ||
Warranty | 12 Months / 1000 Hours | ||
Quality Control | The engines have been rigorously tested | ||
Payment | T/T, Western Union, Alibaba online payment. | ||
Service | Guidance on product issues through online and video support | ||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |||
