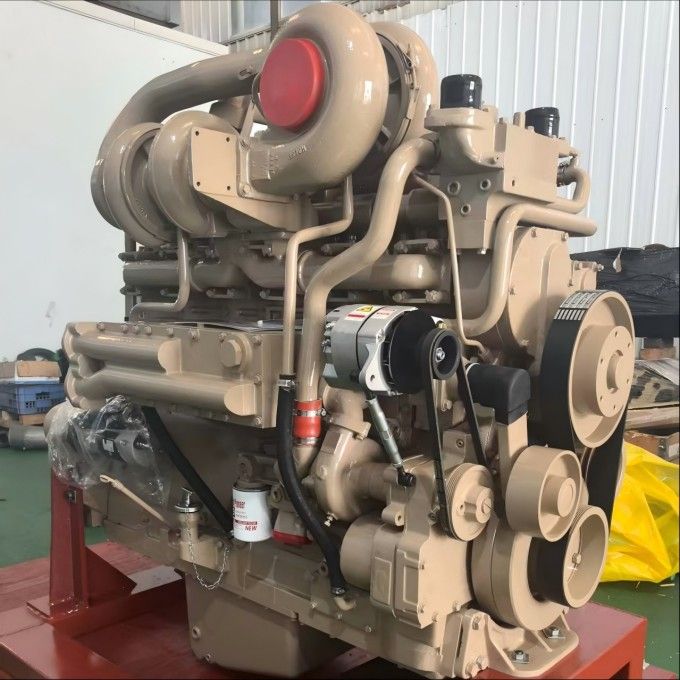

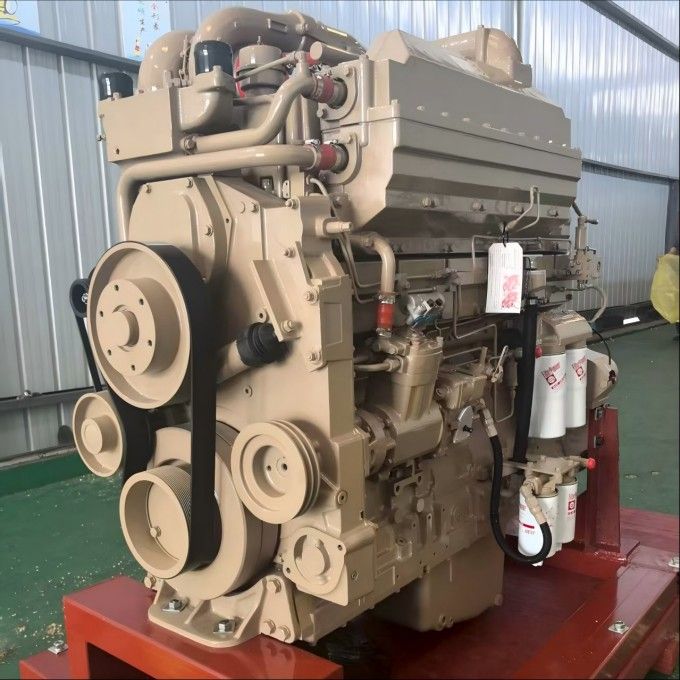

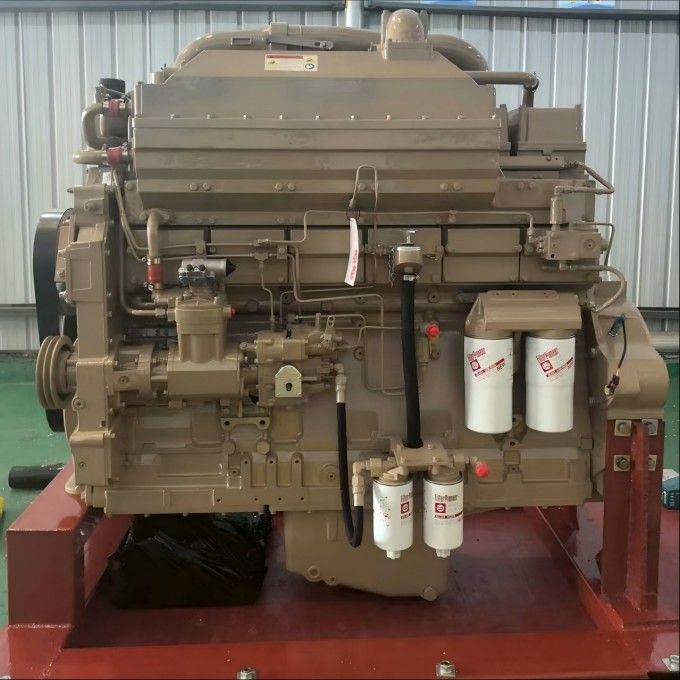

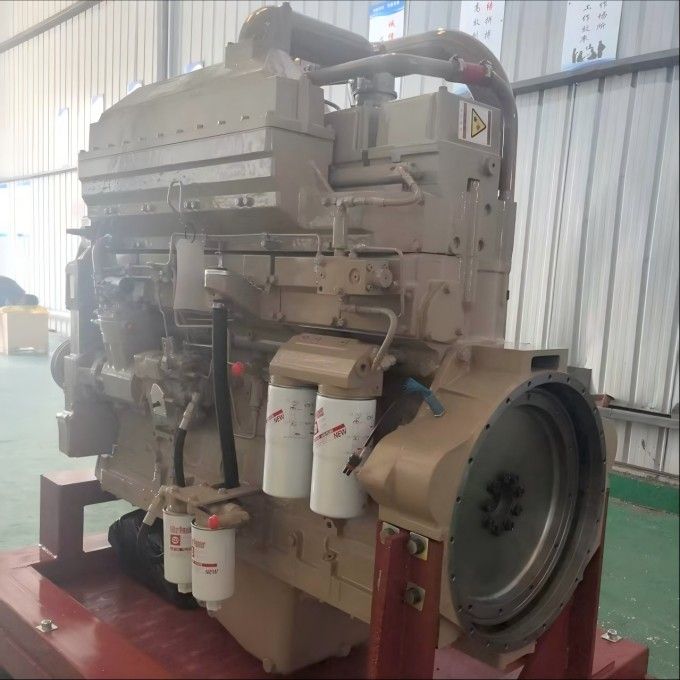

The Cummins K19-C700 industrial engine is purpose-built for extreme-duty mobile equipment requiring 700 horsepower under sustained high ambient temperatures and dusty environments. Featuring a deep-skirt block design, dual centrifugal oil filters, and a high-efficiency aftercooler, this variant delivers peak torque of 2,400 Nm at 1,500 rpm—ideal for 100-ton rigid dump trucks, horizontal directional drills, and single-toggle jaw crushers. Unlike marine or generator variants, the C700 includes a heavy-duty fan drive and 300-amp alternator for auxiliary hydraulic systems. For mining contractors and quarry operators, the K19-C700 offers direct interchangeability with original K19 clutch housings and provides a full electronic control upgrade path while maintaining mechanical fallback.
Products Overview
K19-C700 | |
Cyl No. and Arrangement | 6-Cyl L-line |
Bore/Stroke(mm) | 159/159 |
Air-intake way | Turbo charged cooling |
Combustion system | Direct injection |
Cooling way | Water-cooled |
Displacement(L) | 18.8 |
Max.Torque(N.m) | 2370 |
Power(kw) | 522 |
Power(hp) | 700 |
Speed(rpm) | 2100 |
Net Weight(kg) | 1750 |
Weight(kg) | 1800 |
Dimension(L*W*H/cm) | 200*150*190 |
Application: | construction machinery / generator set / mining equiment / water pump / truck |
Certification | ISO9001:2000 |
Warranty | 12 Months / 1000 Hours |
Quality Control | The engines have been rigorously tested |
Payment | T/T, Western Union, Alibaba online payment. |
Service | Guidance on product issues through online and video support |
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |
