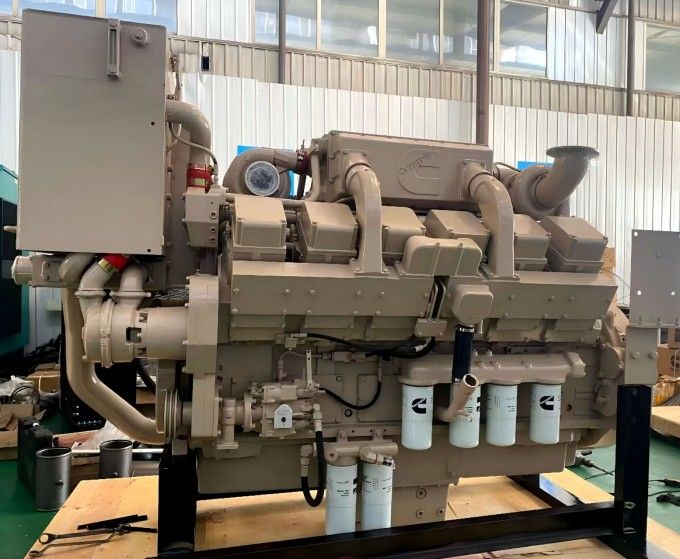

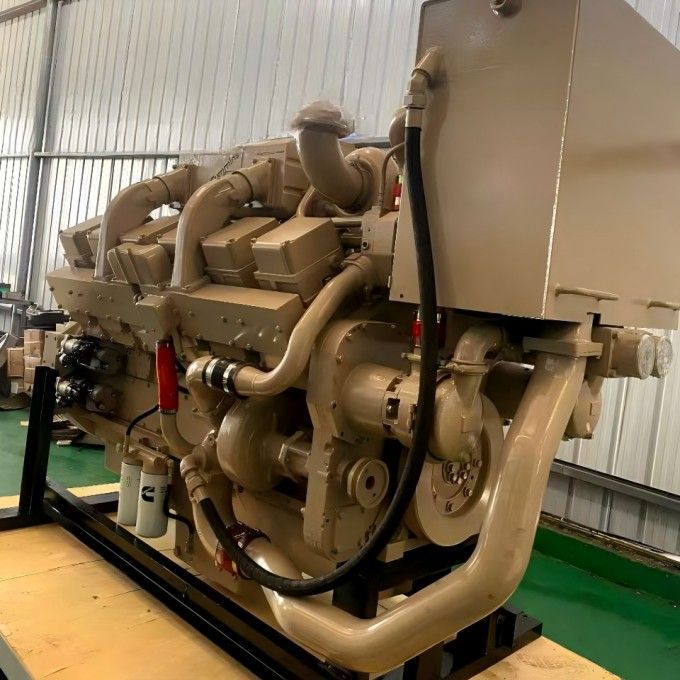

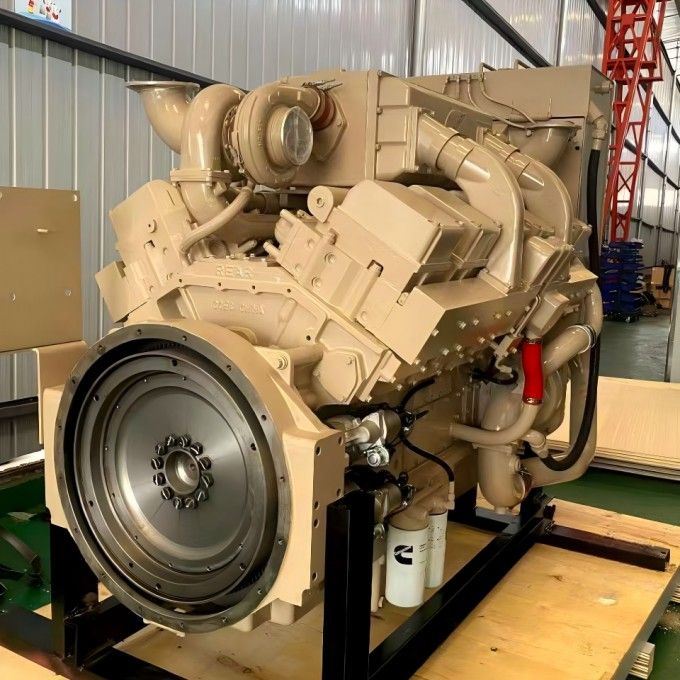

Cummins K38-M1050 Marine Engine for Deep-Sea Trawlers 1050hp Heavy-Duty Propulsion

Power your heavy towage or deep-sea fishing operation with the Cummins K38-M1050, a 1050hp V12 marine diesel built for anchor handlers, salvage tugs, and factory stern trawlers. This continuous-duty variant prioritizes torque and longevity over peak speed, consuming approximately 210 liters per hour at cruising load—significantly less than comparable 12-cylinder engines. Key features include twin Holset turbochargers, a stainless steel raw water pump with replaceable wear plates, and a PTO capable of driving 250hp hydraulic pumps for winches or deck cranes. Whether repowering an 80-foot seiner or installing as main propulsion on a shallow-draft bunkering tanker, the K38-M1050 meets IMO Tier II standards with mechanical fuel injection for simple field servicing. Complete packages available with Twin Disc MGX-5200 series gears, Aquadrive thrust bearings, and tropical cooling kits. Backed by a 12-month international warranty with rapid spare parts dispatch from China.

Products Overview

K38-M1050

Cyl No. and Arrangement

12-Cyl V-line

Bore/Stroke(mm)

159/159

Air-intake way

Turbo charged cooling

Combustion system

Direct injection

Cooling way

Water-cooled

Displacement(L)

38

Max.Torque(N.m)

3560

Power(kw)

783

Power(hp)

1050

Speed(rpm)

1600

Net Weight(kg)

3720

Weight(kg)

3800

Dimension(L*W*H/cm)

230*170*200

Application:

construction machinery / generator set / mining equiment / water pump / truck

Certification

ISO9001:2000

Warranty

12 Months / 1000 Hours

Quality Control

The engines have been rigorously tested

Payment

T/T, Western Union, Alibaba online payment.

Service

Guidance on product issues through online and video support

The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
