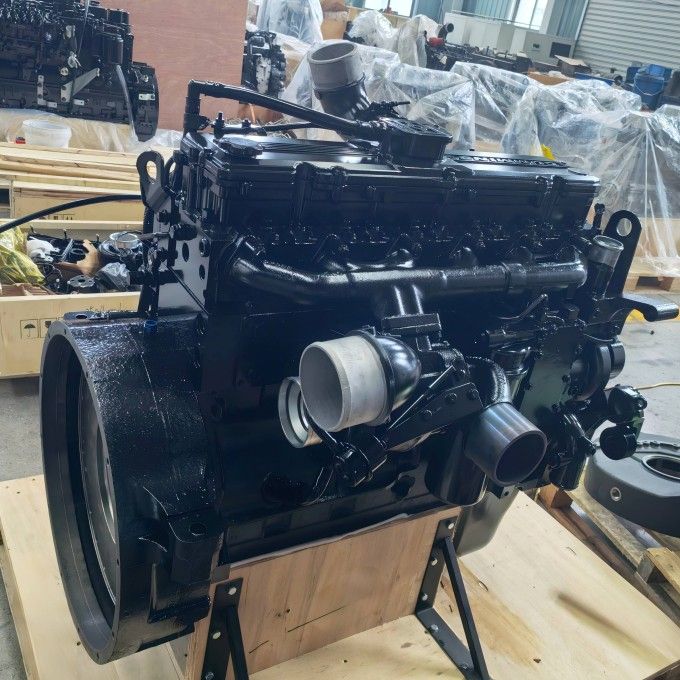

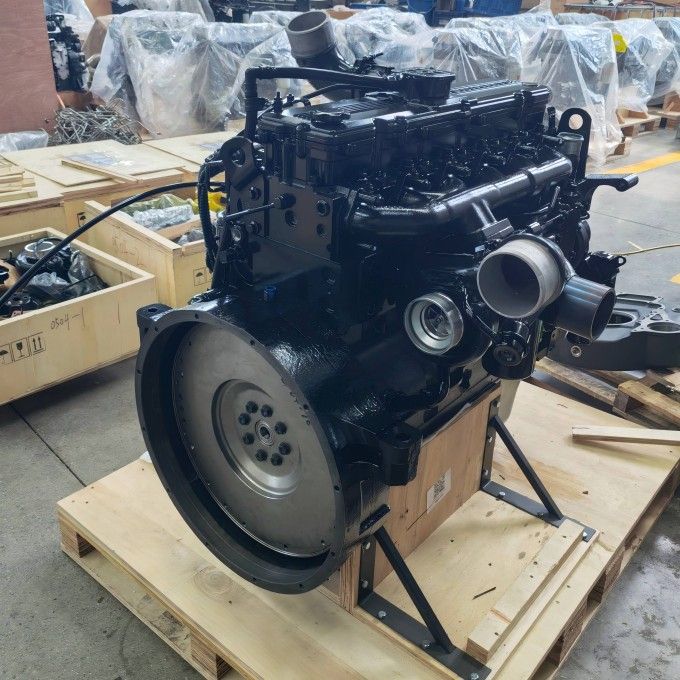

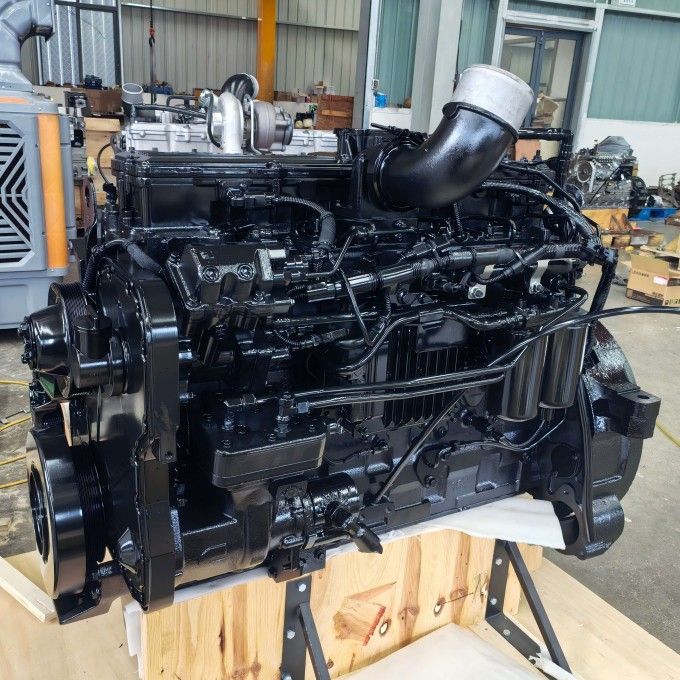

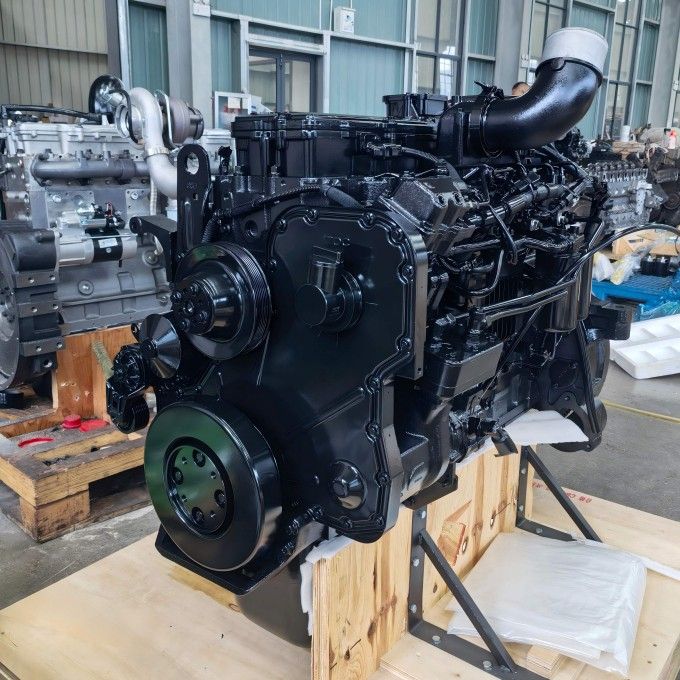

The Cummins ISL 340 50 is a 6-cylinder inline diesel engine with 8.9 liters displacement. Bore × stroke: 114mm × 145mm. Turbocharged with wastegate. High-pressure common rail (1800 bar) with full electronic control. Power: 340 hp (250 kW) at 2000 rpm. Max torque: 1250 lb-ft (1695 N·m) at 1400 rpm.Emissions: EPA 2010 compliant. Features cooled EGR, diesel oxidation catalyst (DOC), and selective catalytic reduction (SCR) with DEF injection. Dual electronic control modules (ECM + ACM) manage engine and aftertreatment.Key applications: Class 8 trucks (Freightliner, International), transit and school buses, motorhomes, and fire trucks.We supply complete ISL 340 50 engines, ECMs, ACMs, SCR systems, and full harnesses. Dyno-tested with data.
Products Overview
ISL 340 50 | |
Cyl No. and Arrangement | 6-Cyl in-line |
Bore/Stroke(mm) | 114/145 |
Air-intake way | Turbo charged cooling |
Combustion system | Direct injection |
Cooling way | Water-cooled |
Displacement(L) | 8.9L |
Max.Torque(N.m) | 1500 |
Power(kw) | 250 |
Power(hp) | 340 |
Speed(rpm) | 2100 |
Net Weight(kg) | 710 |
Weight(kg) | 830 |
Dimension(L*W*H/cm) | 125*80*105 |
Application: | construction machinery / generator set / mining equiment / water pump / truck |
Certification | ISO9001:2000 |
Warranty | 12 Months / 1000 Hours |
Quality Control | The engines have been rigorously tested |
Payment | T/T, Western Union, Alibaba online payment. |
Service | Guidance on product issues through online and video support |
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |
